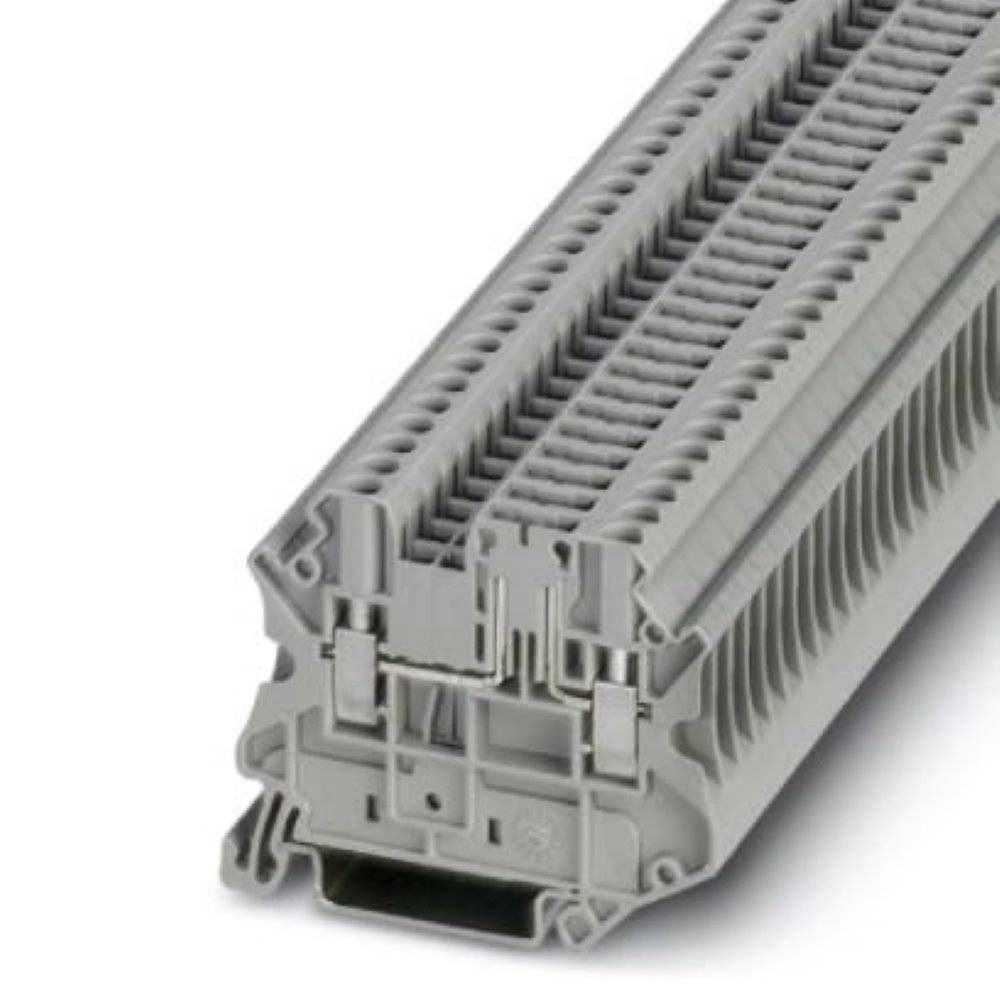

Image similar

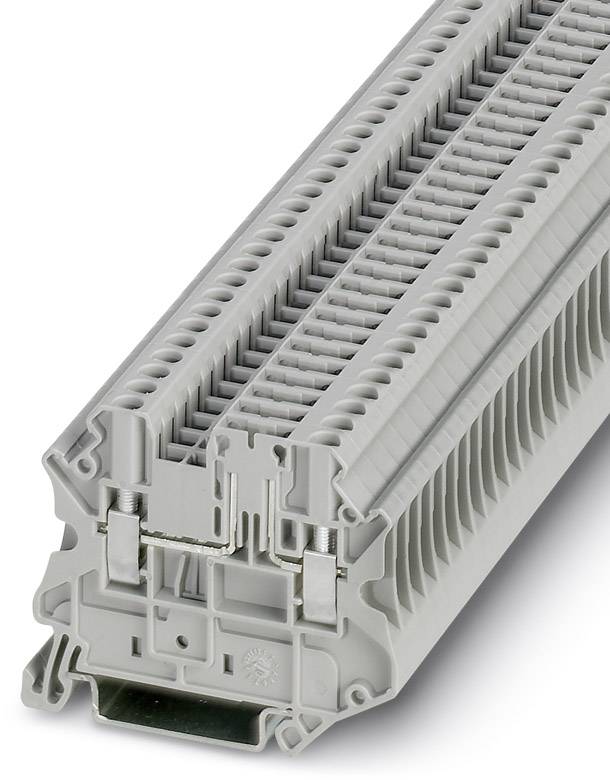

Image similar
Disconnect terminal block UT 2,5-TG-P/P 3046391 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Package
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.44 / piece)
€ 138.66
-12 %
€ 121.84
plus VAT.
14-day return policy included
Highlights & Details
Disconnect terminal block UT 2,5-TG-P/P
- UT 2,5-TG-P/P
Technical specifications
- Packaging type
Package
- Product type
N terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3046391
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 2,5-TG-P/P
- Dim
(L x W x H) 57.8 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
57.8 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565884 Disconnect terminal block UT 2,5-TG-P/P 3046391 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565884 Disconnect terminal block UT 2,5-TG-P/P 3046391 Phoenix Contact
Description
Disconnect terminal block, Connection type: Screw connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 57.8 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
