Buy Display Elektronik Display development tool DEMOPACK with CO2 measurement

Image similar

Product type

Display development tool

Type

DEMOPACK with CO2 measurement

RoHS-compliant

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Datasheet 3043197 Display Elektronik Display development tool DEMOPACK with CO2 measurement

User & Safety Instructions 3043197 Display Elektronik Display development tool DEMOPACK with CO2 measurement

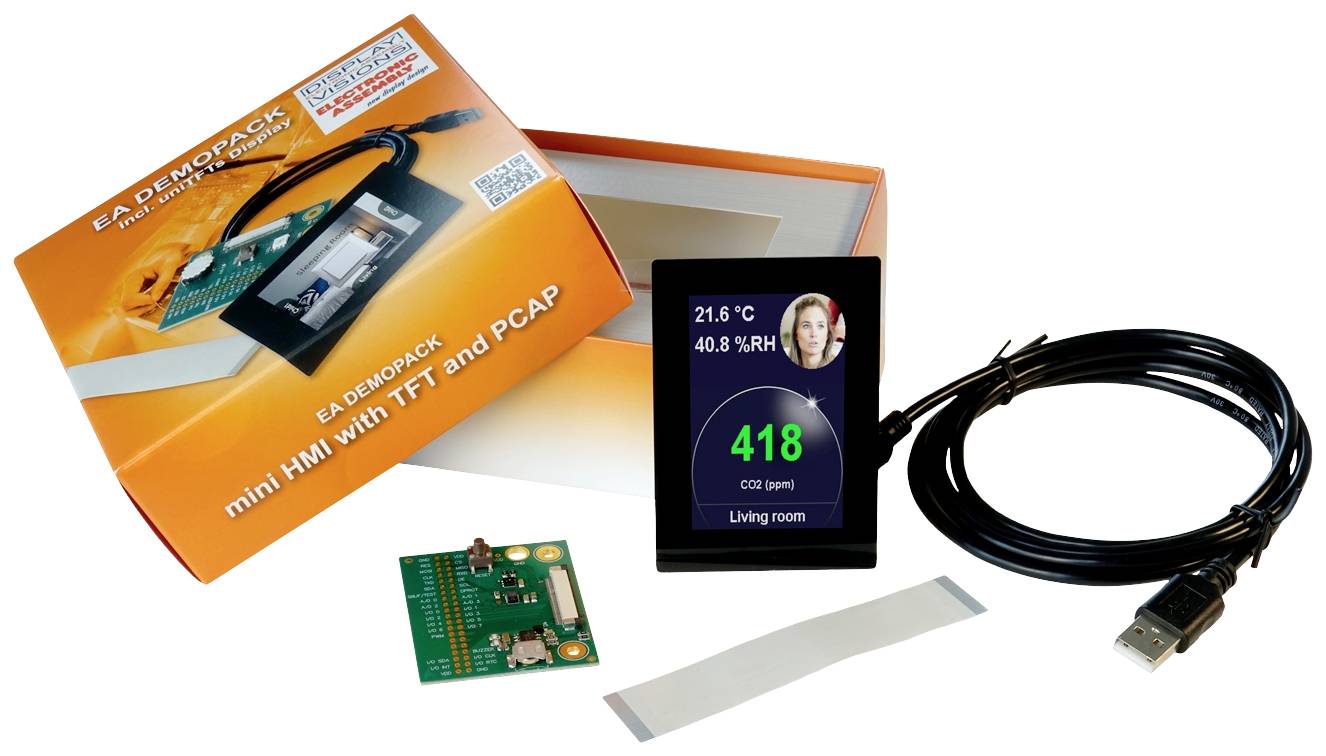

Demo application with CO2 measurement, temperature measurement and humidity measurement via I²C. With RTC (real-time clock) battery-buffered. Reset button and measuring points for GND and VDD. With 6 bits. Miniature touch panel (PCAP) 2.8" TFT with graphics functions, memory and touch panel support. Programmable as stand-alone with inputs and outputs. With USB, RS-232, I²C and SPI. Move objects on the display, change measurement values while they are displayed, increase important parameters automatically, and gently hide and remove controls. Simple creation of screens via Windows using uniTFTDesigner.
This text is machine translated.
