Name: Display Elektronik LCD White 80 x 160 Pixel (W x H x D) 13.50 x 27.95 x 1.54 mm DEM080160AVMH PWN
Brand: Display Elektronik
SKU: 3042884

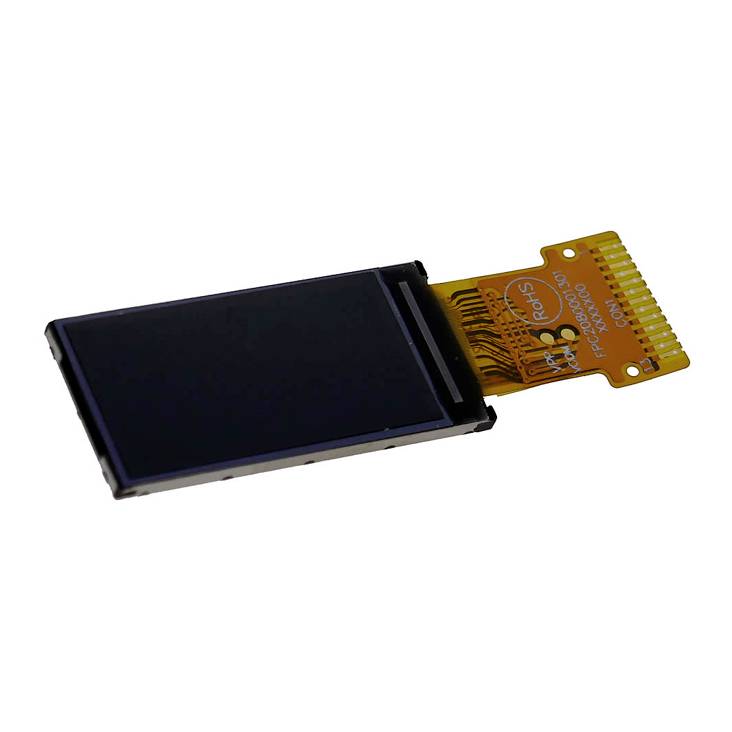

Small, rectangular electronic display with flexible connection. Primarily dark screen surface, suitable for portable devices.

Image similar

Product type

LCD

Display resolution

80 x 160 Pixel

Background colour

White

Operating voltage

3.1 V

Height

27.95 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LCD

Type: DEM080160AVMH PWN

Controller type: ST7735S

Display resolution: 80 x 160 Pixel

Screen size diagonal (inches): 0.96 inch

Background colour: White

Type (display): TFT

Operating voltage: 3.1 V

Operating voltage: 3 - 3.6 V

Max. current consumption: 20 mA

Dim: (W x H x D) 13.50 x 27.95 x 1.54 mm

Depth: 1.54 mm

Height: 27.95 mm

Width: 13.50 mm

Min. operating voltage: 3 V

Max. operating voltage: 3.6 V

RoHS-compliant: Yes

Max. temperature: 70 °C

Min. temperature: -20 °C

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Operating voltage

Dim

Width

Type

Height

Display Elektronik LCD White (W x H x D) 36.3 x 47.8 x 2.43 mm DEM128160A1TMH-PWN

Item no:2238823

Dispatches on Mon 19 Oct

1571 Piece(s)Conrad Electronic

3 V DC

(W x H x D) 36.3 x 47.8 x 2.43 mm

36.3 mm

DEM128160A1TMH-PWN

47.8 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 100.00 x 3.50 mm DEM1024600M1VMHPWN

Item no:3042894

Unavailable

Conrad Electronic

10.5 V

(W x H x D) 164.80 x 100.00 x 3.50 mm

164.80 mm

DEM1024600M1VMHPWN

100.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 100.00 x 3.50 mm DEM1024600M3VMHPWN

Item no:3042896

Unavailable

Conrad Electronic

10.5 V

(W x H x D) 164.80 x 100.00 x 3.50 mm

164.80 mm

DEM1024600M3VMHPWN

100.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 24.80 mm DEM1024600HTMH PWN

Item no:3042891

Unavailable

Conrad Electronic

(W x H x D) 164.80 x 99.80 x 24.80 mm

164.80 mm

DEM1024600HTMH PWN

99.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 26.50 mm DEM1024600HTMLHWNC

Item no:3042892

Unavailable

Conrad Electronic

(W x H x D) 164.80 x 99.80 x 26.50 mm

164.80 mm

DEM1024600HTMLHWNC

99.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 5.55 mm DEM1024600M2VMHPWN

Item no:3042895

Unavailable

Conrad Electronic

10.5 V

(W x H x D) 164.80 x 99.80 x 5.55 mm

164.80 mm

DEM1024600M2VMHPWN

99.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 5.55 mm DEM1024600M4VMHPWN

Item no:3042897

Unavailable

Conrad Electronic

10.5 V

(W x H x D) 164.80 x 99.80 x 5.55 mm

164.80 mm

DEM1024600M4VMHPWN

99.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 5.65 mm DEM1024600G1TMHPWN

Item no:3042890

Unavailable

Conrad Electronic

9.8 V

(W x H x D) 164.80 x 99.80 x 5.65 mm

164.80 mm

DEM1024600G1TMHPWN

99.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.90 x 100.00 x 4.95 mm DEM102460M1VMHPWNC

Item no:3042898

Unavailable

Conrad Electronic

10.5 V

(W x H x D) 164.90 x 100.00 x 4.95 mm

164.90 mm

DEM102460M1VMHPWNC

100.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.90 x 100.00 x 4.95 mm DEM102460M3VMHPWNC

Item no:3042902

Unavailable

Conrad Electronic

10.5 V

(W x H x D) 164.90 x 100.00 x 4.95 mm

164.90 mm

DEM102460M3VMHPWNC

100.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3042884 Display Elektronik LCD White 80 x 160 Pixel (W x H x D) 13.50 x 27.95 x 1.54 mm DEM080160AVMH PWN
