Buy Display Elektronik LCD White 800 x 480 Pixel (W x H x D) 165.00 x 100.00 x 26.40 mm DEM800480G1TMHPWNT

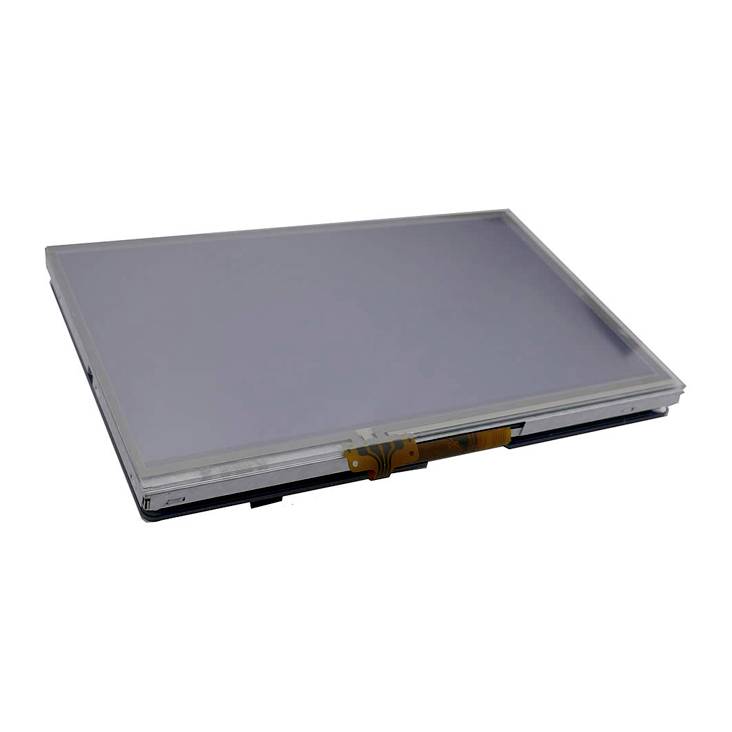

Flat LCD screen on a light background, showing a section of a display with a rectangular shape.

Image similar

Product type

LCD

Display resolution

800 x 480 Pixel

Background colour

White

Height

100.00 mm

Width

165.00 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: LCD

Type: DEM800480G1TMHPWNT

Controller type: TFP401

Display resolution: 800 x 480 Pixel

Screen size diagonal (inches): 7 inch

Background colour: White

Type (display): TFT

Operating voltage: 4.9 - 5.1 V

Dim: (W x H x D) 165.00 x 100.00 x 26.40 mm

Depth: 26.40 mm

Height: 100.00 mm

Width: 165.00 mm

Min. operating voltage: 4.9 V

Max. operating voltage: 5.1 V

RoHS-compliant: Yes

Max. temperature: 70 °C

Min. temperature: -20 °C

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Operating voltage

Dim

Width

Type

Height

Display Elektronik LCD White (W x H x D) 36.3 x 47.8 x 2.43 mm DEM128160A1TMH-PWN

Item no:2238823

3 V DC

(W x H x D) 36.3 x 47.8 x 2.43 mm

36.3 mm

DEM128160A1TMH-PWN

47.8 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 5.65 mm DEM1024600G1TMHPWN

Item no:3042890

9.8 V

(W x H x D) 164.80 x 99.80 x 5.65 mm

164.80 mm

DEM1024600G1TMHPWN

99.80 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 24.80 mm DEM1024600HTMH PWN

Item no:3042891

(W x H x D) 164.80 x 99.80 x 24.80 mm

164.80 mm

DEM1024600HTMH PWN

99.80 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 26.50 mm DEM1024600HTMLHWNC

Item no:3042892

(W x H x D) 164.80 x 99.80 x 26.50 mm

164.80 mm

DEM1024600HTMLHWNC

99.80 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 165.00 x 99.80 x 26.30 mm DEM1024600HTML HPWNT

Item no:3042893

(W x H x D) 165.00 x 99.80 x 26.30 mm

165.00 mm

DEM1024600HTML HPWNT

99.80 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 100.00 x 3.50 mm DEM1024600M1VMHPWN

Item no:3042894

10.5 V

(W x H x D) 164.80 x 100.00 x 3.50 mm

164.80 mm

DEM1024600M1VMHPWN

100.00 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 5.55 mm DEM1024600M2VMHPWN

Item no:3042895

10.5 V

(W x H x D) 164.80 x 99.80 x 5.55 mm

164.80 mm

DEM1024600M2VMHPWN

99.80 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 100.00 x 3.50 mm DEM1024600M3VMHPWN

Item no:3042896

10.5 V

(W x H x D) 164.80 x 100.00 x 3.50 mm

164.80 mm

DEM1024600M3VMHPWN

100.00 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.80 x 99.80 x 5.55 mm DEM1024600M4VMHPWN

Item no:3042897

10.5 V

(W x H x D) 164.80 x 99.80 x 5.55 mm

164.80 mm

DEM1024600M4VMHPWN

99.80 mm

Display Elektronik LCD White 1024 x 600 Pixel (W x H x D) 164.90 x 100.00 x 4.95 mm DEM102460M1VMHPWNC

Item no:3042898

10.5 V

(W x H x D) 164.90 x 100.00 x 4.95 mm

164.90 mm

DEM102460M1VMHPWNC

100.00 mm
