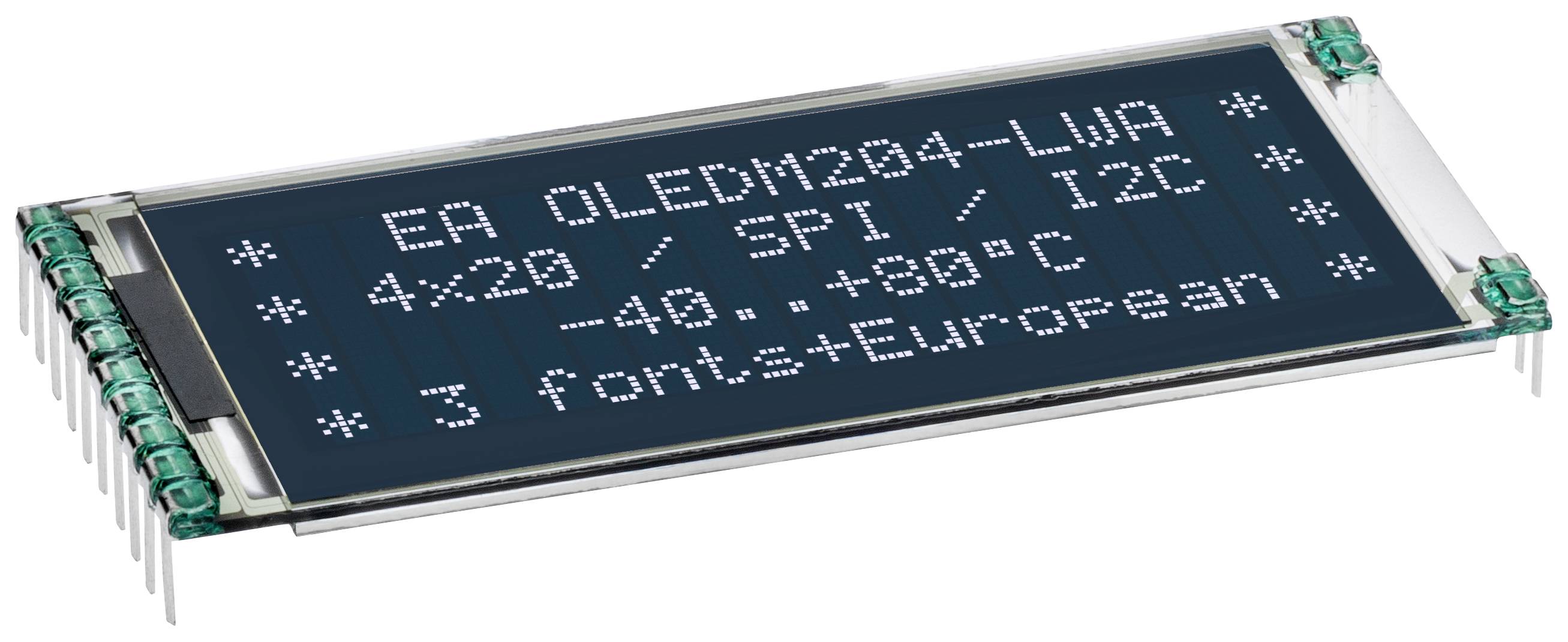

Display Elektronik OLED module White Black (W x H x D) 61 x 26 x 2.4 mm
EAN:
Part number:
Item no:
Product type
OLED module
Font colour
White
Background colour
Black
Lighting type
OLED
Digit height
3.69 mm
Datasheet (PDF)
Highlights & Details
DISPLAY VISIONS OLED Dot-Matrix Module s.
Our service for you
Technical specifications
- Active area height 20.0 mm
- Number of characters 20x4/3/2
- Active area width: 50 mm
- Character width: 1.95 mm
- Expected life: 50,000 h
- Interface display: SPI
- Product type
OLED module
- Font colour
White
- Background colour
Black
- Lighting type
OLED
- Type (display)
Dot Matrix
- Digit height
3.69 mm
- Operating voltage
2.4 - 5.5 V
- Dim
(W x H x D) 61 x 26 x 2.4 mm
- Depth
2.4 mm
- Height
26 mm
- Width
61 mm
- Min. operating voltage
2.4 V
- Max. operating voltage
5.5 V
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3043249 Display Elektronik OLED module White Black (W x H x D) 61 x 26 x 2.4 mm
User & Safety Instructions
User & Safety Instructions 3043249 Display Elektronik OLED module White Black (W x H x D) 61 x 26 x 2.4 mm
