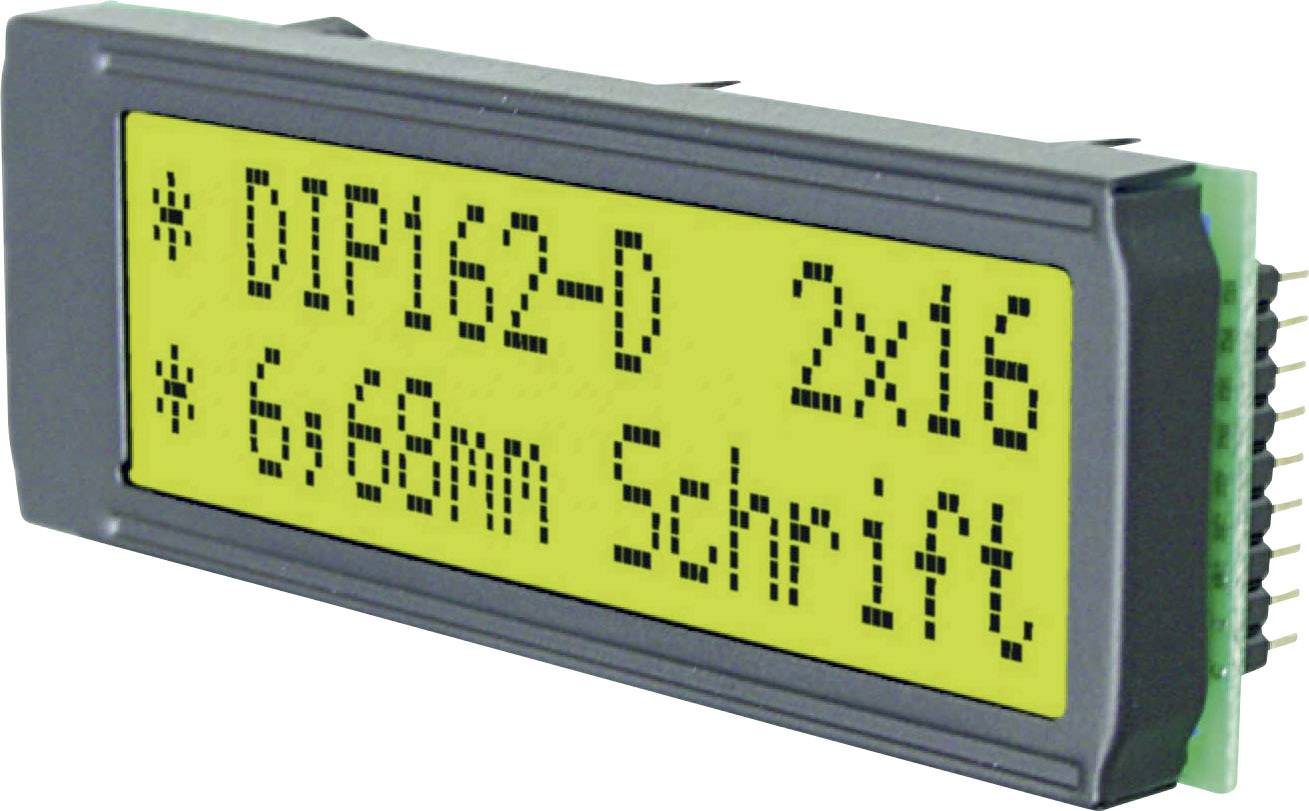

DISPLAY VISIONS LCD Green Yellow-green (W x H x D) 68 x 26.8 x 10.8 mm EADIP 162 - DNLED
EAN:
Part number:
Item no:
Product type
LCD
Font colour
Green
Background colour
Yellow-green
Digit height
6.68 mm
Operating voltage
5 V DC
Datasheet (PDF)
Technical specifications
- Super twist display
- Product type
LCD
- Type
EADIP 162 - DNLED
- Controller type
HD44780
- Font colour
Green
- Background colour
Yellow-green
- Type (display)
Alphanumeric
Dot-matrix
- Character style
16 x 2
- Digit height
6.68 mm
- Operating voltage
5 V DC
- Max. current consumption
1.5 mA
- Dim
(W x H x D) 68 x 26.8 x 10.8 mm
- Depth
10.8 mm
- Height
26.8 mm
- Width
68 mm
- Current consumption
(not illuminated) approx. 1.5 mA
- Operating voltage
5 V DC
Documents & Downloads
Datasheet
Datasheet 181755 DISPLAY VISIONS LCD Green Yellow-green (W x H x D) 68 x 26.8 x 10.8 mm EADIP 162 - DNLED
Description
Display with integrated pin bar (pitch 2.0 mm) for simple and quick mounting. With this new construction method, screws, pin strips and cables are no longer required. Just solder up. The available space has been optimized since no board now needs protrude beyond the display. In terms of readability and view angle this device is 1st class. For that reason, it is just right for installation in mobile devices.
Features
- Super twist display
- Adjustable and controllable LED backlighting.
Hints
TTL- and + 5 V CMOS-compatible
Direct interface for any 4 or 8-bit microprocessor bus
