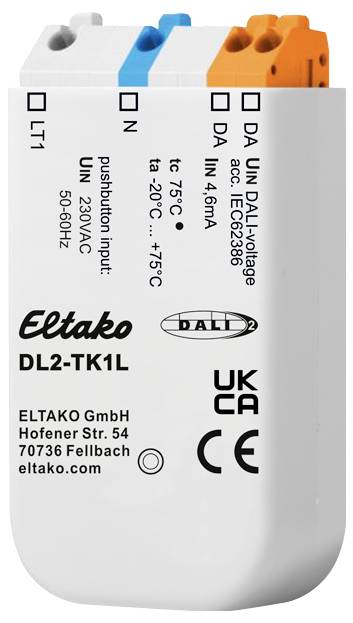

DL2-TK1L Eltako DALI switch coupler Flush mount

Compact DALI-2 control module with 1 switching input. For panel mounting. 59mm long, 33mm wide, 15mm deep. Protection IP 20. DALI power consumption 4.6mA. DALI-2 certified. DALI2 is the latest generation of the DALI standard with extended functionality. DALI2 devices also feature all previous DALI functions and are therefore backwards compatible. Compact DALI-2 control module with 1 switching input for 230V AC. The DL2-TK1L is powered by the DALI bus, no separate supply is required. The connection to the DALI terminals is independent of polarity. Galvanic isolation between switching input and DALI interface. Multimaster capable, multiple modules can be installed on the same DALI line. Integrated DALI-2 Application Controller. Each input can be assigned individual DALI commands, effective range and switching functions. In addition to the standard DALI commands, the application controller also enables DALI DT8: Tunable White and RGB(W) control as well as macros. The module has a DALI-2 instance (Pushbutton type, according to IEC62386-301) for easy integration. Supports short keystroke, long keystroke (with repeat for dimming) and toggle. As well as buttons, it is also suitable for switches. Alternative key function, each of the inputs can also be assigned a second function which can be activated/deactivated via a scene command on the DALI bus. Configurable Power-up behavior. The DL2-TK1L is powered by the DALI bus, no separate supply is required. The connection to the DALI terminals is independent of polarity. Application and function: The DL2-TK1L is used as a universal module for controlling DALI-compatible lamps. The switch input function can be set individually. The DALI Cockpit software tool allows the settings to be made, as with other Luntone control units. In principle, a distinction is made between the Application Controller and the DALI-2 instances. The application controller leads to direct DALI control commands that are executed directly by the DALI drivers. The DALI-2 instances generate event messages that are interpreted and processed by higher-level control units (WAGO, Beckhoff, LUNATONE DALI-2 KNX gateway). Application controllers and instances can be active at the same time. Factory setting: The factory setting already implements a basic configuration (factory settings). This can be changed and adapted to the current application if necessary.
