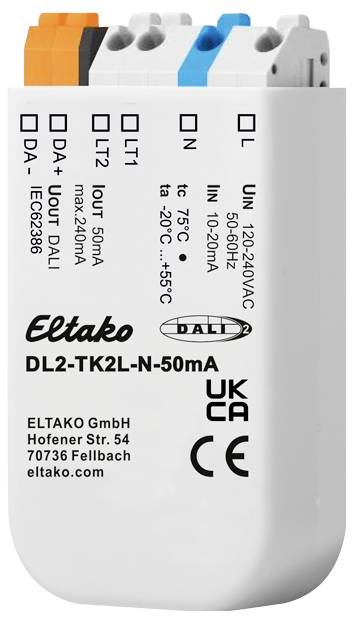

DL2-TK2L-N-50mA Eltako DALI switch coupler Flush mount

Compact DALI-2 control module with 2 freely programmable switching inputs. For panel mounting. 59mm long, 33mm wide, 15mm deep. Protection IP 20. DALI-2 certified. DALI2 is the latest generation of the DALI standard with extended functionality. DALI2 devices also feature all previous DALI functions and are therefore backwards compatible. Compact DALI-2 control module with 2 switching inputs for 230V AC. With integrated DALI bus supply (50mA), an additional bus supply must not be connected. Galvanic isolation between switching input and DALI interface. Multi-master capable. Integrated DALI-2 Application Controller. Each input can be assigned individual DALI commands, effective range and switching functions. In addition to the standard DALI commands, the application controller also enables DALI DT8 TC and RGB(W) control. Simple integration by two DALI2 Pushbutton instances. Supports short keystroke, long keystroke (with repeat for dimming and toggle. As well as buttons, it is also suitable for switches. Alternative key function, each of the inputs can also be assigned a second function which can be activated/deactivated via a scene command on the DALI bus. Sequences, macros and other functions are available in the application controller. Simple configuration via a LUNATONE DALI interface and DALI Cockpit software tool. The polarity of the output voltage is visible on the housing (DA+, DA-). Application and function: The DL2-TK2L-N-50mA is a universal module for controlling DALI-compatible luminaires. The function of each switching input can be set individually. The DALI Cockpit software tool allows the settings to be made, as with other Luntone control units. In principle, a distinction is made between the Application Controller and the DALI-2 instances. The application controller leads to direct DALI control commands that are executed directly by the DALI drivers. The DALI-2 instances generate event messages that are interpreted and processed by higher-level control units (WAGO, Beckhoff, LUNATONE DALI-2 KNX gateway). Application controllers and instances can be active at the same time. Factory setting: The factory setting already implements a basic configuration (factory settings). This can be changed and adapted to the current application if necessary.
