Dobot MG400 DT-AC-MAP1-001 Expansion module
EAN:
Part number:
Item no:
Number
Total (€ 436.13 / piece)
€ 436.13
plus VAT.
14-day return policy included
Highlights & Details

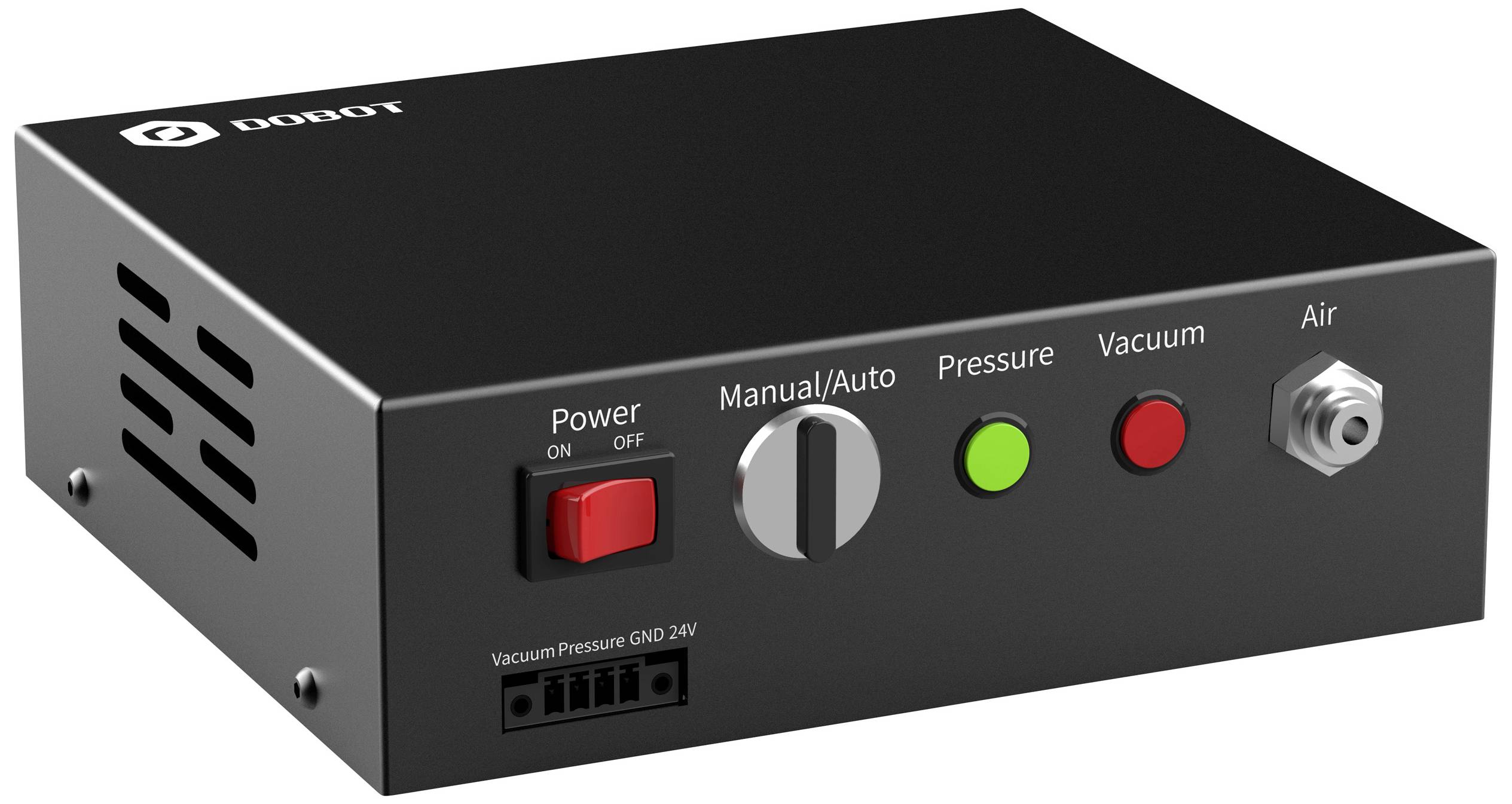

Mini air pump box for MG400
- Plug & Play: Eliminate the need to design and change the pneumatic circuit and create a mobile workstation

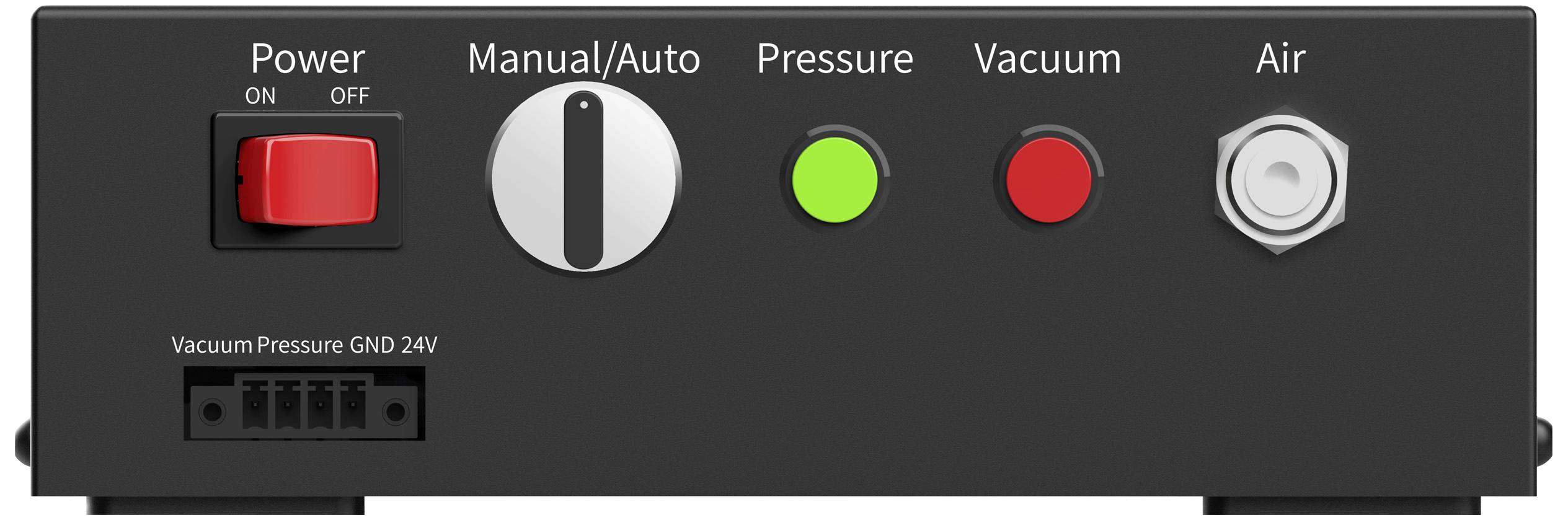

- Easy to use: Supports two control modes - manual mode and I/O mode - for an easy operation
- Cost-effectiveness: Saves costs and generates high returns
Technical specifications
- Air pressure range -70 ~ 110 kPa
- Control method: I/O
- Diameter of air hose connection: Ø 4mm
- IP rating: IP20
- Volume 65 dB
- Nominal voltage 24V DC ±10%
- Nominal current: 0.8A
- Maximum voltage is 1.2A
- Product type
Expansion module
- Width
143 mm
- Length
163 mm
- Weight
800 g
- Height
53 mm
- Compatible with (details)
MG400
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2899519 Dobot MG400 DT-AC-MAP1-001 Expansion module
Description

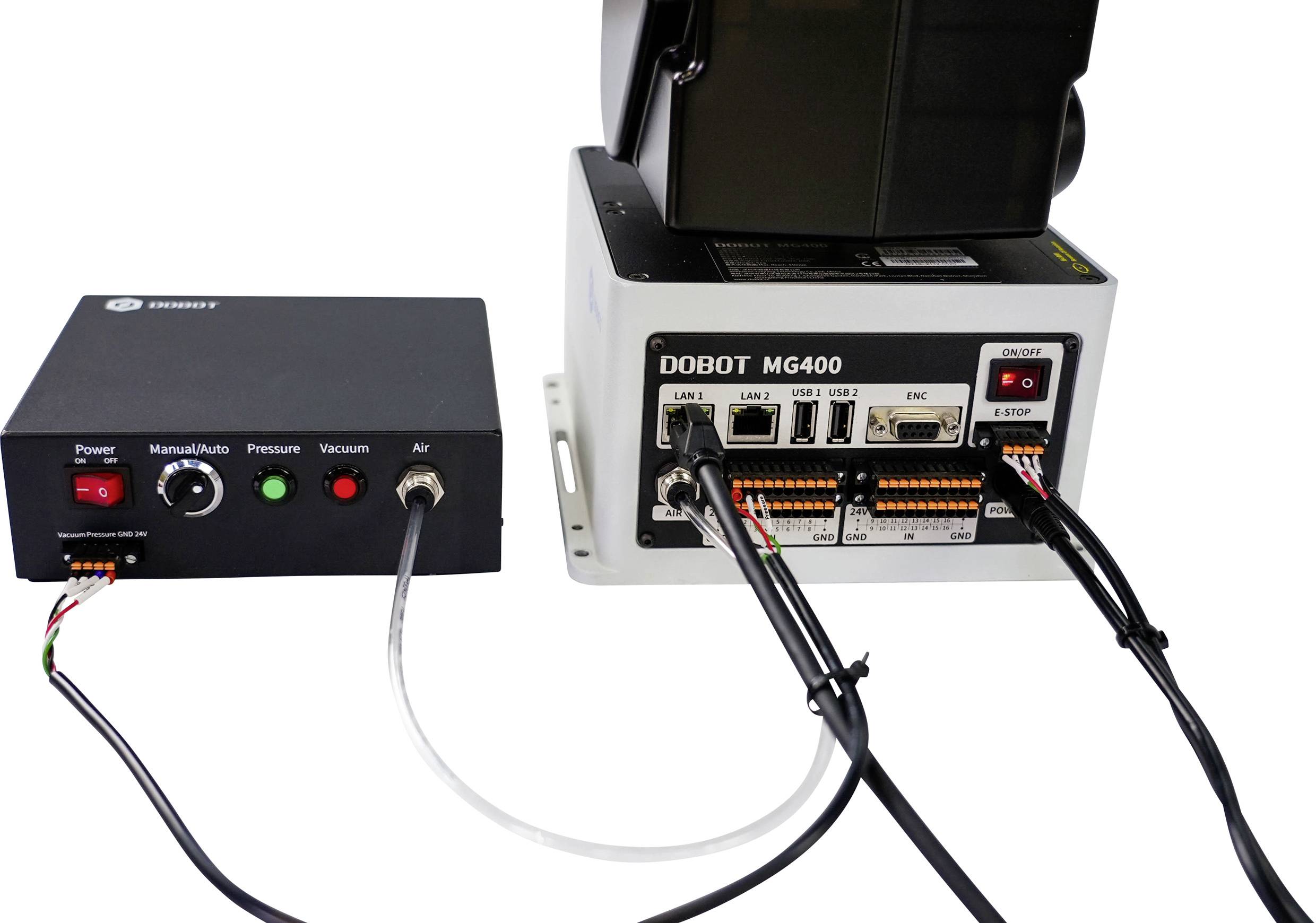

The DOBOT mini air pump box is a portable plug-and-play air source that enables flexible use anywhere. For use with other pneumatic tools to apply pressure on the grippers to perform tasks such as gripping and transporting objects.
