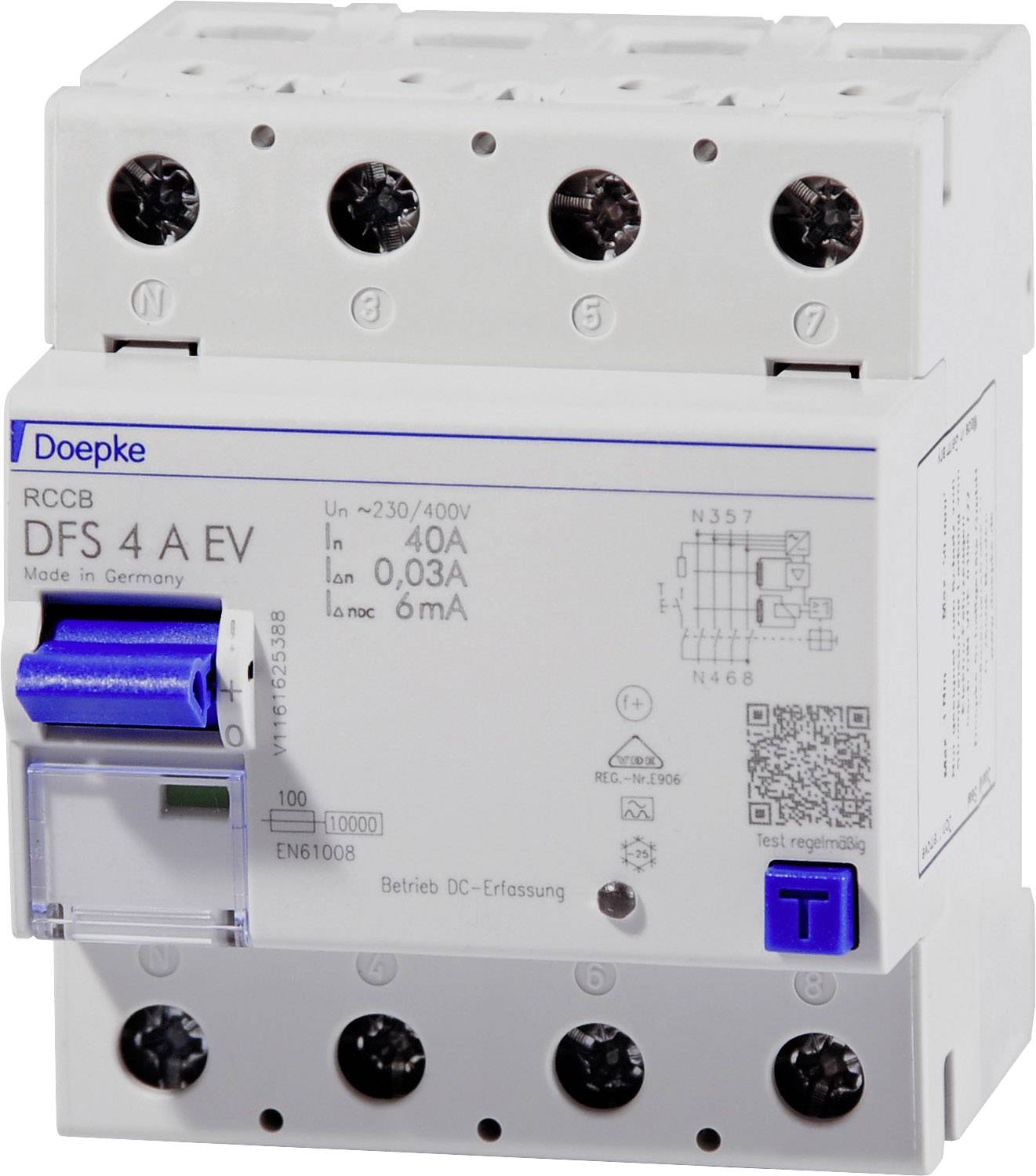

Doepke 09134818 DFS4 040-4/0,03-EV 4polig 40/0,03A RCCB A 4-pin 40 A 0.03 A 400 V

Residual current circuit breaker (RCCB) Switch the power supply whenever dangerously high fault currents. You protect people, animals and plants. DFS 4 are two- or four-pole residual current protective switch for single-phase or three-phase systems. In the standard version, the compact devices four division units narrow. They are equipped with many different fault current types and versions with rated currents up to 125 A available. The large Double level terminals can also be large conductor cross-section. The triggered position of the multi-function knob simplifies troubleshooting. The free label software helps with the label. Switch of the type A are pulse and alternating current and sensitive. This function is independent of mains voltage. Switch in the execution EV are intended for use in the charging facilities for electric vehicles. You have an extra function for the detection of smooth DC fault currents? 6 mA. For you to protect upstream residual current circuit breaker type A or F before function failures. Features: Power voltage-dependent additional function for the detection of smooth DC fault currents; - the activation threshold of 6 mA at smooth DC fault currents;-LED-display for operating additional function; - no additional wiring effort; - VDE certified power and auxiliary voltage-independent activation;-sensitive for change - and immediately pour pulsating errors (type A) - small size for all rated currents; - high short-circuit strength; - double-sided double terminals for large conductor cross-section and busbar connection; - switching position display; - a viewing window for labels; multi-function knob with three positions: "on", "off", "tripped"; - even in the design of "HD" available-neutral position left, at no extra cost as a N right available. Installation type: quick mounting on rail fixing - any installation position feed-in direction applications: - This RCCB are solely intended to be used in facilities for charging of electric vehicles.; - excluded is the use for the protection of plants in which electronic equipment fault currents with frequencies? 50 Hz caused things. Here are Allstrom-sensitive residual current circuit breaker type B or B+.

This text is machine translated.
