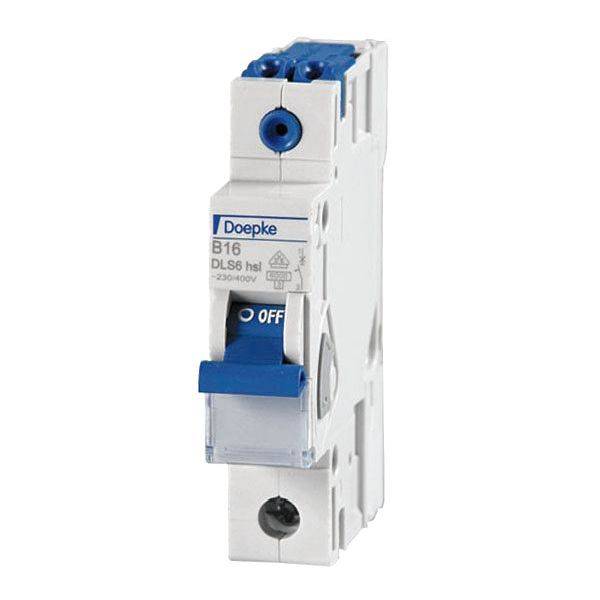

Doepke 09917023 Circuit breaker

The job of circuit breakers is to automatically switch off circuits to protect cables and connected devices. After a shutdown, they can be switched on again manually without, for example, having to replace the fuse inserts. Each of our miniature circuit breakers is equipped with a release release which ensures a safe shutdown, even in the case of mechanically blocked gear levers. The circuit breaker in the series DLS 6 protect cables, wires and installation devices against overload and short circuit in accordance with DIN VDE 0100. The series comprises a large selection of different types, from switches for residential and functional buildings to switches for the industrial area. The compact design of the circuit breakers of the series DLS 6 offers maximum space gain for convenient wiring. The large clamping range and the possibility to use standard wiring rails ensure easy installation. In addition, it is also possible to connect a large number of additional devices such as trigger working current as well as auxiliary and fault detectors. The screwless design DLS 6hsl for the trade is suitable with its rated breaking capacity of 6 kA for distributor and final circuits. It is particularly easy to work with the upper screw-less plug-in terminals. Switches with the characteristic B ensure the standard protection for light and socket circuits. Features: Rated switching capacity 6 kA; upper screw-less plug-in terminal for a comfortable and fast mounting; lower bracket terminals with wide clamp cross-section range for rails; special quick mounting to remove even several circuit breakers from the lower or upper rail group; large Foldable label window for a secure hold and protection of the label; use of commercially available wiring rails; on/off switch position display on the control toggle; accessories can be retrofitted on the right; free label software; Mounting type: Rapid attachment on mounting rail; Any mounting position; suitable for use in power supplies for residential buildings and commercial/industrial buildings.

This text is machine translated.
