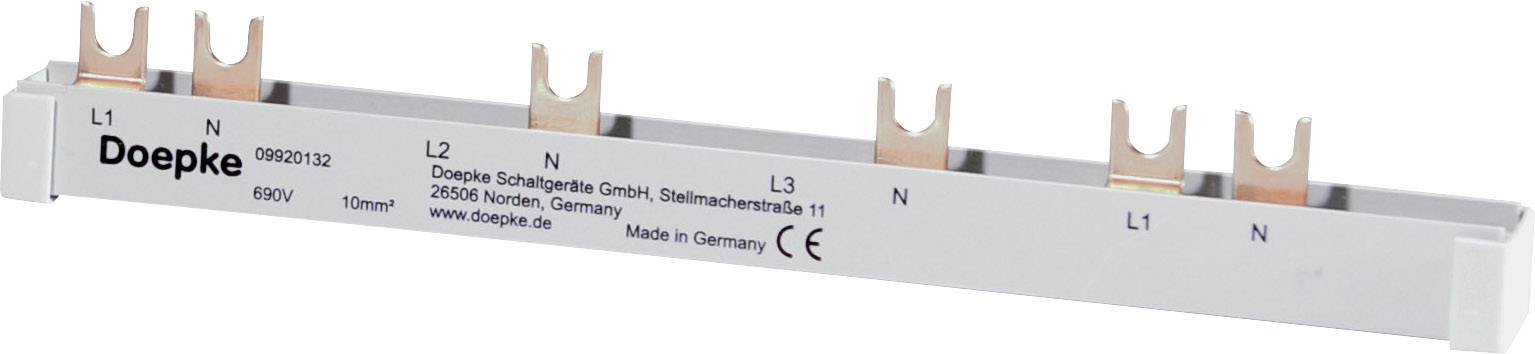

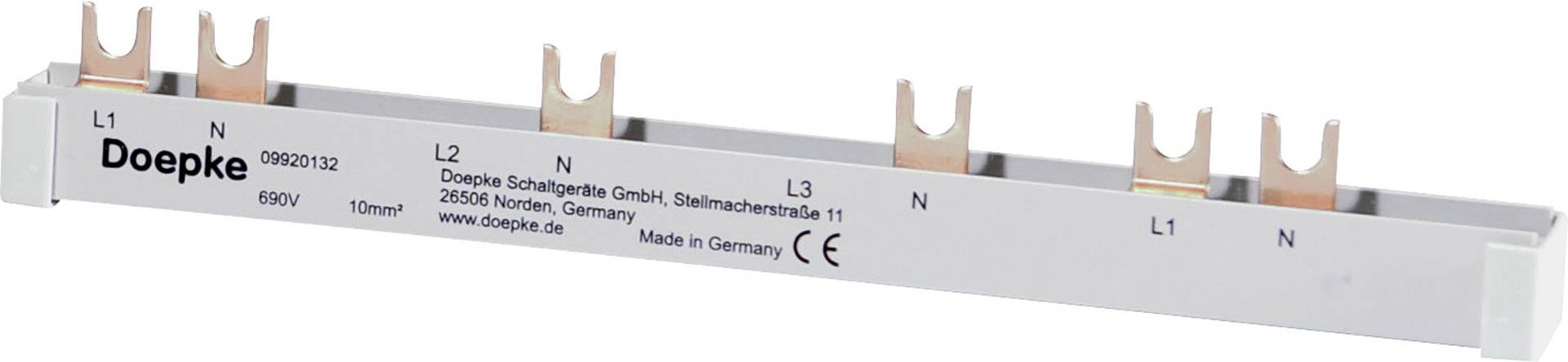

Doepke 09920132 DOEPKE DAFFD busbar B G 12 TE-3/N/S-10 Phase modifier 63 A 690 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Nominal voltage
690 V
Operating voltage
690 V
Number of pins
4
Dim
(W x H x D) 202 x 23 x 30.5 mm
Datasheet (PDF)
Highlights & Details
DOEPKE DAFFD busbar B G 12 TE-3/N/S-10
- Small design
- High time savings in wiring
Technical specifications
- Nominal voltage
690 V
- Product type
Phase modifier
- Operating voltage
690 V
- Number of pins
4
- Dim
(W x H x D) 202 x 23 x 30.5 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Width
202 mm
- Height
23 mm
- Depth
30.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136367 Doepke 09920132 DOEPKE DAFFD busbar B G 12 TE-3/N/S-10 Phase modifier 63 A 690 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136367 Doepke 09920132 DOEPKE DAFFD busbar B G 12 TE-3/N/S-10 Phase modifier 63 A 690 V 1 pc(s)
Description
These components for the wiring of safety switches in industrial, commercial and private use electrical distribution panels reduce installation effort considerably. At the busbars for error arc protective equipment (fire protection switch, AFDD) of the DAFDD series 1 was the third division unit with a recess for the AFD-unit. They are in two- and four-pole as well as in two lengths available, the space for four or up to 20 DAFDD 1 offers. The rails ensure fast supply-side connection on the bottom of the devices.
This text is machine translated.
This text is machine translated.
