Doepke 09920182 Busbar Multicolour 63 A 690 V
EAN:
Part number:
Item no:
Product type
Busbar
Number of pins
4
Nominal current - rounded value
63 A
Nominal voltage
690 V
Operating voltage
690 V
Datasheet (PDF)
Highlights & Details

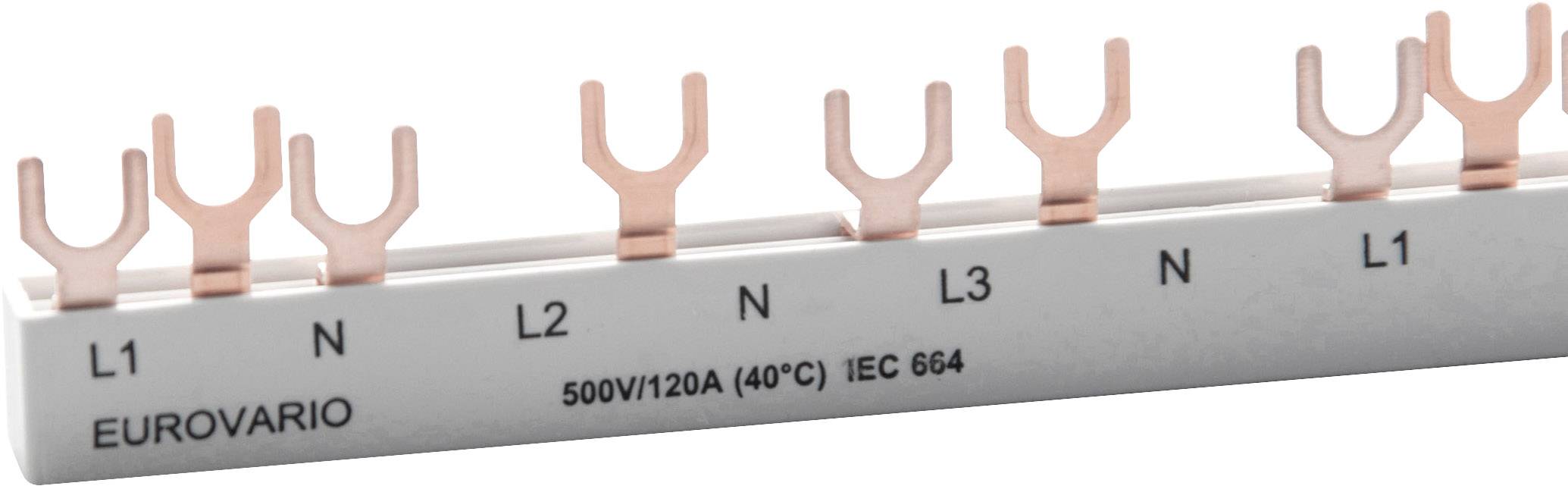

DOEPKE busbar, fork, 4-pin, 12 TE, 63A (L1+N, L2+N, L3+N x 2 = 12)
- Small design
- High time savings in wiring
Technical specifications
- Nominal voltage
690 V
- Product type
Busbar
- Operating voltage
690 V
- Factory colour
Multicolour
- Number of pins
4
- Dim
(W x H x D) 212 x 11.8 x 28 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
12
- Width
212 mm
- Height
11.8 mm
- Depth
28 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136349 Doepke 09920182 Busbar Multicolour 63 A 690 V
User & Safety Instructions
User & Safety Instructions 2136349 Doepke 09920182 Busbar Multicolour 63 A 690 V
Description
These components for the wiring of safety switches in industrial, commercial and private use electrical distribution panels reduce installation effort considerably. The pre-stripped busbars of the Euro Vario system is suitable for the supply-side connection of residual current circuit-breakers, circuit breakers and FI/LS-combinations on the bottom of the devices. The rails are in fork design and in a large number of variants in one to four-pole, (partly with space for auxiliary switch). The touch protection EV-S BS covers unused connections.
