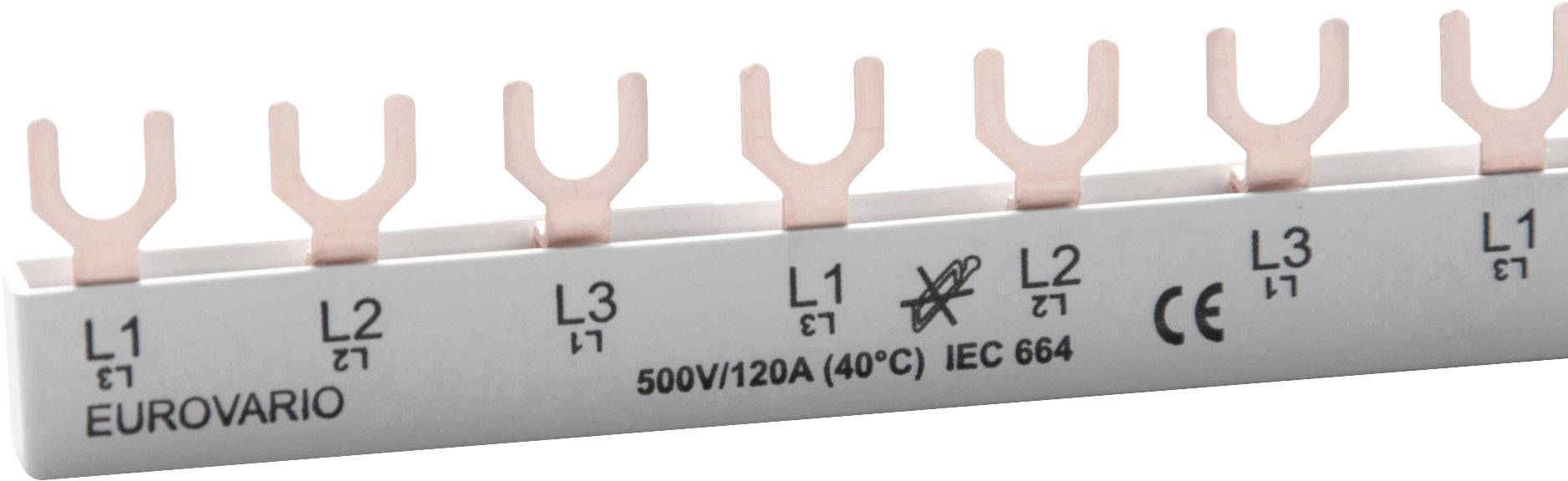

Doepke 09920190 DOEPKE phase rail EV-S G 3.11.120 Phase modifier Multicolour 10 mm² 63 A 690 V 1 pc(s)

These components for the wiring of safety switches in industrial, commercial and private use electrical distribution panels reduce installation effort considerably. The pre-stripped busbars of the Euro Vario system is suitable for the supply-side connection of residual current circuit-breakers, circuit breakers and FI/LS-combinations on the bottom of the devices. The rails are in fork design and in a large number of variants in one to four-pole, (partly with space for auxiliary switch). The touch protection EV-S BS covers unused connections. Features: - can be used for the connection of residual current circuit-breakers, circuit breakers and FI/LS-combinations - large number of variants - small design; - high time savings in wiring mounting type: The rails are used in the upper or lower connection terminals of the connected devices. Applications: busbars of this series are used in conjunction with RCCB and MCB and rcbo in power supplies from living and purpose buildings as well as of industrial systems. Notes: In the case of the feed-in of circuit breakers from above in combination with doepke-fehlerstromschutzschaltern are the connecting rails EV-S G ANL (N left) or EV-S G ANR (N right).

This text is machine translated.
