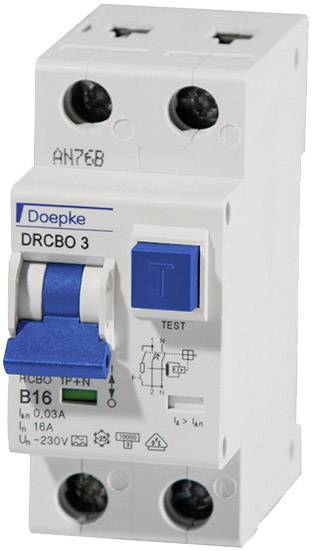

Doepke 09932102 RCBO 1-pin 10 A 0.03 A 230 V

RCBO combine fault current and line protection switch in a device (FI/LS combination). They protect people against fault currents and systems against short-circuit and overload. The DRCBO series 3 work mains voltage independent and are characterised by a high rated breaking capacity. Separate displays provide a quick overview of the current operating status. DRCBO 3 can be conveniently and remove. Switch of the type A are pulse and alternating current and sensitive. This function is independent of mains voltage. Switch with the trigger characteristic B are the standard protection for light and socket circles. Standard switches are designed for circuits with a rated voltage of 230 V or 400 V and a rated frequency of 50 Hz. Features: - auxiliary voltage-independent activation;-sensitive for change - and immediately pour pulsating errors (type A) - small size for all rated currents; - high short-circuit strength; - green - red contact position indicator; fault current release display; - Zugbugelklemmen with protection cover and wide terminal cross-section area for rail and cable wiring on both connection ends; - Neutral conductor right; - trista bile locking slide for easy removal and installation type: quick mounting on rail fixing - any installation position applications: - protection of circuits in living and purpose buildings as well as industrial systems with TN-S and TN-C-S-networks. In IT networks can FI/LS-Switch-off in the event of a second ground fault should be provided; - excluded is the use in plants with TN-C networks and for the protection of circuits in which resources of power electronics smooth DC residual currents or currents with frequencies not equal to 50/60 Hz.
