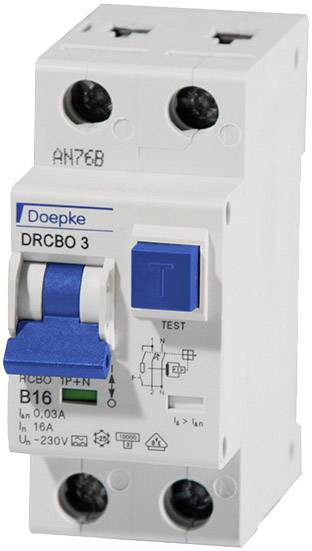

Doepke 09932104 RCBO 1-pin 16 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
1
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
Highlights & Details
Doepke FI/LS combination, single pole+N, 16 A, 0.03 A, A characteristic, Type A.
- Quick mounting on DIN rail
- All mounting positions permitted
Technical specifications
- Nominal voltage (details)
230 V
- Product type
RCBO
- Number of pins
1
- Release characteristics
B
- Differential current rating
0.03 A
- Factory colour
Multicolour
- Dim
(W x H x D) 35 x 80 x 74 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Operating voltage
230 V
- Nominal voltage
230 V
- Width
35 mm
- Height
80 mm
- Depth
74 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136361 Doepke 09932104 RCBO 1-pin 16 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 2136361 Doepke 09932104 RCBO 1-pin 16 A 0.03 A 230 V
Description
RCBO combine fault current and line protection switch in a device (FI/LS combination). They protect people against fault currents and systems against short-circuit and overload. The DRCBO series 3 work mains voltage independent and are characterised by a high rated breaking capacity. Separate displays provide a quick overview of the current operating status. DRCBO 3 can be conveniently and remove. Switch of the type A are pulse and alternating current and sensitive. This function is independent of mains voltage. Switch with the trigger characteristic B are the standard protection for light and socket circles. Standard switches are designed for circuits with a rated voltage of 230 V or 400 V and a rated frequency of 50 Hz.
