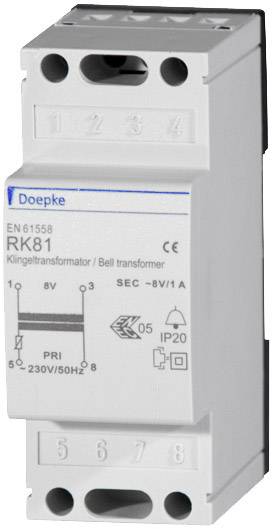

Doepke 09980029 Bell transformer 8 V 1 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DOEPKE bell transformer RK 3U 4-8-12 V/2 A
- Quick mounting on DIN rail
- All mounting positions permitted
Technical specifications
- Product type
Bell transformer
- Mounting type
DIN rail
- Operating voltage
230 V
- Output voltages
8 V
- Max. nominal current
1 A
- Width
36 mm
- Height
90 mm
- Depth
65 mm
- Dim
(W x H x D) 36 x 90 x 65 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2136339 Doepke 09980029 Bell transformer 8 V 1 A
User & Safety Instructions
User & Safety Instructions 2136339 Doepke 09980029 Bell transformer 8 V 1 A
Description
Cross-system components are suitable for the SI-surge current system as well as the Dupline-Bussystem. Compatible output signals (e.g. 24 V DC or potential-free relay) allow you to use these components also for other automation systems. In addition, these devices are completely self-sufficient. Bell transformers generate the output voltage for tursignalanlagen as ringing, buzzer or gong. This short-circuit proof, tested and certified transformers convert the mains voltage 230V with extra low voltage. Properties: short-circuit proof by PTC;-tested according to EN61558; - Certified by VDE and KEMA, marked with ENEC symbol for use in the whole of Europe Installation type: quick mounting on rail fixing - any installation position applications: - bell transformers series RK are for AC voltage supply of, for example, Bell systems, closing systems and relay circuits. Notes: - After a short circuit is the recommissioning of brief separation of the primary side.; - at low load or idle can increase the output voltage; - only for short-term load; - In the case of continuous load, we recommend the use of safety transformers.
