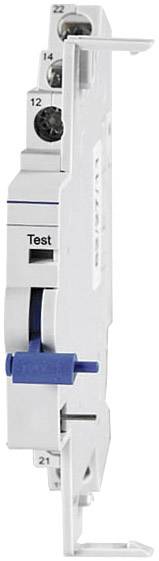

Doepke DHi 11/DFS2/4 Auxiliary switch 1 breaker, 1 change-over 230 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Nominal voltage
230 V
Packaging type
Piece
Type
DHi 11/DFS2/4
Contact type
1 breaker
1 change-over
Datasheet (PDF)
Highlights & Details
DOEPKE auxiliary switch DHi11/DFS 2/4
- To the left of the basic device by parentheses
- Quick mounting on DIN rail
- All mounting positions permitted
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary switch
- Type
DHi 11/DFS2/4
- Contact type
1 breaker
1 change-over
- Auxiliary contact type
1 breaker
1 change-over
- Nominal voltage
230 V
- Switching voltage (max.)
230 V DC/AC
- Permanent current (max.)
6 A
- Mounting type
DIN rail
IP20/IP40 (when connected)
- Width
9 mm
- Height
85 mm
- Depth
75 mm
- Dim
(W x H x D) 9 x 85 x 75 mm
- Content
1 pc(s)
- Factory colour
Multicolour
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136325 Doepke DHi 11/DFS2/4 Auxiliary switch 1 breaker, 1 change-over 230 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136325 Doepke DHi 11/DFS2/4 Auxiliary switch 1 breaker, 1 change-over 230 V Piece 1 pc(s)
Description
Auxiliary switch report the status of the main devices to which you are installed. DHi 2 and DHi 11 are optionally available auxiliary switch and fault signal switch for doepke-fehlerstromschutzschalter models in the DFS and DHS. DHi 2 are for switch with black knob, DHi 11 for switch with blue T-handle. In the operating mode "Auxiliary Switch" indicate the switching on and off of the RCCB, in the "Error signal switch" only the trigger. Features: - Auxiliary switch or error signal switch function; can be retrofitted to DFS and DHS with black bolt (DHi 2) or with blue bolt (DHi 11) - Small Size Type: - to the left of the basic device by parentheses quick mounting on rail fixing - any installation position applications: These devices are suitable for operating status query of power supplies in living and purpose buildings and industrial plants. Notes: The auxiliary switch does not affect the function of the basic device.
