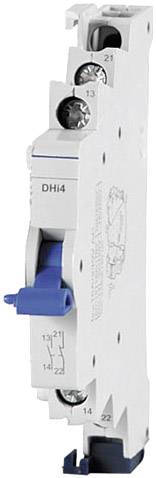

Doepke DHi4 für DLS6 Auxiliary switch 1 breaker, 1 maker 230 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Nominal voltage
230 V
Type
DHi4 für DLS6
Contact type
1 breaker
1 maker
Switching voltage (max.)
230 V AC
Datasheet (PDF)
Highlights & Details
DOEPKE auxiliary switch DHi 4 for DLS6
- On the right side
Technical specifications
- Product type
Auxiliary switch
- Type
DHi4 für DLS6
- Contact type
1 breaker
1 maker
- Nominal voltage
230 V
- Switching voltage (max.)
230 V AC
- Permanent current (max.)
10 A
- Mounting type
DIN rail
- Width
8.8 mm
- Height
87 mm
- Depth
68.3 mm
- Dim
(W x H x D) 8.8 x 87 x 68.3 mm
- Content
1 pc(s)
- Factory colour
Multicolour
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136300 Doepke DHi4 für DLS6 Auxiliary switch 1 breaker, 1 maker 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136300 Doepke DHi4 für DLS6 Auxiliary switch 1 breaker, 1 maker 230 V 1 pc(s)
Description
Auxiliary switch report the status of the main devices to which you are installed. The auxiliary switch DHi 3 to DHi 8 are suitable for the circuit breaker of the series DLS 6h, hsl and i. you switch in parallel to the circuit breaker switch with switch-off by hand, due to an overload or short-circuit. Features: - Auxiliary switch function for DLS 6; - different contact models available; - small size (0.5 TE) meets the requirements of IEC60947-5-1, EN60947-5-1, VDE0660-200 mounting type: - on the right side of the basic device by parentheses quick mounting on rail fixing - any installation position applications: These devices are suitable for operating status query of power supplies in living and purpose buildings and industrial plants. Notes: The auxiliary switch does not affect the function of the basic device.
