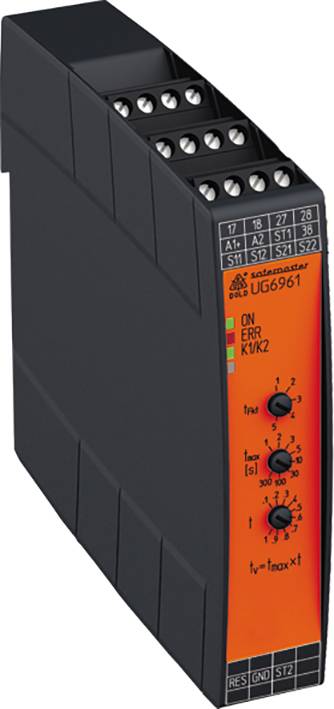

Image similar
Dold 0065424 UG6960.04PS/100/61 DC24V 300s TDR Multifunction 24 V DC 1 pc(s) Time range: 300 - 300 s 4 makers Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
On-/Off-delay with auxiliary contact
On-/Off-delay
Timer
Flasher, symmetric
Single shot leading and trailing edge
Single-shot trailing-edge
Pulser
Pulse shaper
Single-shot leading-edge
Operating voltage
24 V DC
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Light grid, emergency stop, switching mat, protective door, two-hand
- Permissible switching frequency of immediate contacts: Max. 1800 switching cycles/h
- Delayed contacts: Max. 360 switching cycles/h
- Short-circuit resistance
- Max. Fuse 6 A GG / GL IEC/EN 60947-5-1
- Packaging type
Piece
- Product type
TDR
- Type
UG6960.04PS/100/61 DC24V 300s
- Type
Multifunction
- Connection
Screw terminal
- Functions
On-/Off-delay with auxiliary contact
On-/Off-delay
Timer
Flasher, symmetric
Single shot leading and trailing edge
Single-shot trailing-edge
Pulser
Pulse shaper
Single-shot leading-edge
- Operating voltage
24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Contact type
4 makers
- Contact material
AgNi
- Switching voltage (max.)
230 V AC
- Switching current (max.)
8 A
- Time range (min.)
300 s
- Time range (max.)
300 s
- Time range(s)
300 s
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
IP40
- Electrical lifespan
At 5 A, AC 230 V cos j = 1: > 1.5 x 105 switching cycles
- Durability
≥ 1 x 108 operations
- Width
22.5 mm
- Height
110 mm
- Depth
120.3 mm
- Dim
(W x H x D) 22.5 x 110 x 120.3 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359201 Dold 0065424 UG6960.04PS/100/61 DC24V 300s TDR Multifunction 24 V DC 1 pc(s) Time range: 300 - 300 s 4 makers Piece
User & Safety Instructions
User & Safety Instructions 2359201 Dold 0065424 UG6960.04PS/100/61 DC24V 300s TDR Multifunction 24 V DC 1 pc(s) Time range: 300 - 300 s 4 makers Piece
Description
The multifunctional safety timer relay UG 6960 is used to protect persons and machines by enabling and interrupting a safety circuit in a safety-related way. This is done with the delay function set on the device. Simply set one of 5 selectable delay functions with the rotary switch and you're done. The set delay times are safe over the entire time range. The safety timer relay UG 6961 is available with various safety functions and has safe delayed contacts.
· Corresponds to
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · According to IEC/EN 62061
Safety Integrity Level (SIL) 3 · According to IEC/EN 61508 and IEC/EN 61511
· According to EN 50156-1 for combustion plants
· Line-end detection on the on-button
· Activation via a button or automatic on-function
· With or without cross-circuit detection
· 2-channel design
· Positively driven output contacts
· Output: 2 NO immediate contacts and 2 NO contacts delayed
· 1 semiconductor signal output for immediate contacts; 1 semiconductor signal output for delayed contacts
· LED displays operating voltage, safety function, time delay and error
· Installation width 22.5 mm.
This text is machine translated.
· Corresponds to
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · According to IEC/EN 62061
Safety Integrity Level (SIL) 3 · According to IEC/EN 61508 and IEC/EN 61511
· According to EN 50156-1 for combustion plants
· Line-end detection on the on-button
· Activation via a button or automatic on-function
· With or without cross-circuit detection
· 2-channel design
· Positively driven output contacts
· Output: 2 NO immediate contacts and 2 NO contacts delayed
· 1 semiconductor signal output for immediate contacts; 1 semiconductor signal output for delayed contacts
· LED displays operating voltage, safety function, time delay and error
· Installation width 22.5 mm.
This text is machine translated.
