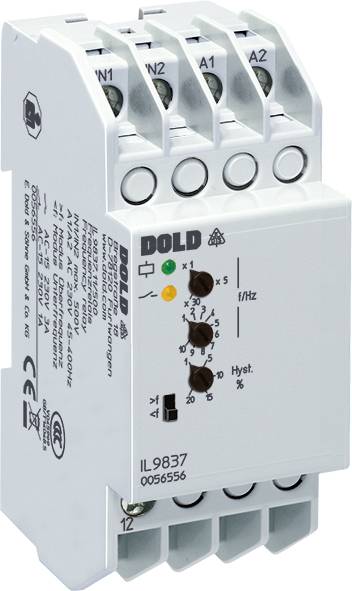

Dold IL9837.11 0056555 Frequency relay No. of relay outputs: 1
EAN:
Part number:
Item no:
Product type
Frequency relay
No. of relay outputs
1
Operating voltage
230 V AC
Type
IL9837.11
Width
35 mm
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Contact configuration 1 changeover contact
- Auxiliary voltage AC 230 V
- Measuring range 5 - 200 Hz
- Variant: Monitors AC voltages for over or underfrequency
- Installation width 35 mm.
- 1 / 3-phase 1
- Housing design: Installation distributor
- DIL 9837 device type
- Start-up bypass: Without
- Measurement range max. 300 Hz
- Auxiliary voltage required: Yes
- Standard measurement range 5 - 200 Hz
- Hysteresis 1 - 20 %
- Type
IL9837.11
- Product type
Frequency relay
- No. of relay outputs
1
- Operating voltage
230 V AC
- Width
35 mm
- Contact type
1 change-over
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2980059 Dold IL9837.11 0056555 Frequency relay No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2980059 Dold IL9837.11 0056555 Frequency relay No. of relay outputs: 1
Description
The frequency relay IL 9837, SL 9837 can be used for frequency monitoring of AC voltages, monitoring the rotor frequency of loop-type motors, control/monitoring of drives in crane systems as well as for frequency monitoring in frequency converters (IL 9837.11/500).
