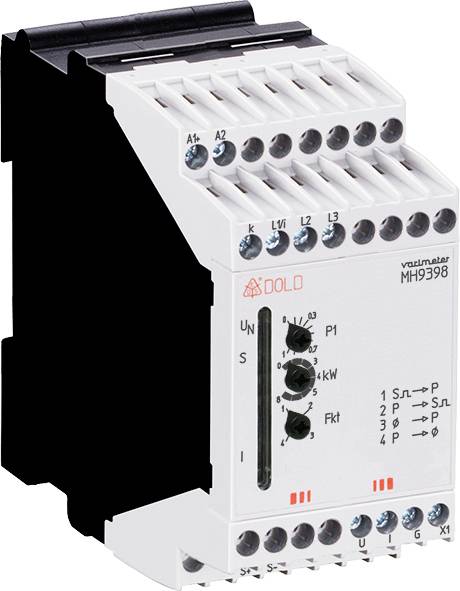

Image similar
Dold MH9398.11 AC12-230V UH=AC230V AC10A 0066140 Active power transducer 1 pc(s)
EAN:
Part number:
Item no:
Product type
Active power transducer
Type
MH9398.11 AC12-230V UH=AC230V AC10A
Dim
(L x W x H) 97 x 45 x 90 mm
Connection
Screw terminal
Output (voltage)
0 … 10 V und 2 … 10 V
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Active power transmitter
- Versatile use through relay and analogueue outputs
- Reliable overload detection through active power measurement
- For longer life of your electric drives
- Preventive maintenance
- Faster error localization
Technical specifications
- NOMINAL CURRENT IN: AC 10 A.
- Measuring range: AC 100 mA ... 10 A
- Overload capability
- Continuous: 16 A.
- Short-term < 10 s: Max. 25 A.
- Overload in the current range is indicated by rapid flashing of the LEDs.
- Nominal frequency 50 / 60 Hz
- Frequency range: 45 ... 400 Hz
- Response value: 0 ... 2.4 kW adjustable at absolute value scale
- Setting
- Range: 8 ranges 0 ... 2.4 kW
- REL: Fine adjustment 0 ... 0.3 kW
- Accuracy
- (In % of set value): ± 4 %
- Hysteresis
- (In % of set value): < 4 %
- Response time < 350 ms
- Start-up bridging: 500 ms fixed
- Contact configuration: 1 changeover contact
- Thermal current Ith: 4 A switching capacity according to AC 15: Closer: 3 A / AC 230 V IEC/EN 60947-5-1
- OPENER: 1 A / AC 230 V IEC/EN 60947-5-1
- ACCORDING TO DC 13: 1 A / DC 24 V IEC/EN 60947-5-1
- Electrical life at 3 A, AC 230 V cos ϕ = 1: 2 x 105 switching cycles IEC/EN 60947-5-1
- Short-circuit resistance (max.) Fuse 4 A GG / GL IEC/EN 60947-5-1
- Mechanical life 30 x 106 operations
- Type
MH9398.11 AC12-230V UH=AC230V AC10A
- Product type
Active power transducer
- Dim
(L x W x H) 97 x 45 x 90 mm
- Connection
Screw terminal
- Output (voltage)
0 … 10 V und 2 … 10 V
- Output (current)
0 … 20 mA und 4 … 20 mA
- Operating voltage
230 V AC (max)
- Max. operating voltage
230 V AC
- Input signal (current)
AC 100 mA ... 10 A
- Content
1 pc(s)
- Configuration
DIP switch
- Width
45 mm
- Height
90 mm
- Length
97 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
230 V AC
- Operating voltage U(B)
AC12-230V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2361002 Dold MH9398.11 AC12-230V UH=AC230V AC10A 0066140 Active power transducer 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2361002 Dold MH9398.11 AC12-230V UH=AC230V AC10A 0066140 Active power transducer 1 pc(s)
Description
The active power transmitter MH 9398 of the VARIMETER family reliably monitors the active power consumption of single-phase electrical consumers. The setting of the response value is done simply via 2 rotary switches. If the set limit value is exceeded, the output relay responds. In addition, 2 galvanically separated analogue outputs are available. This can be used to query the current active power value. LEDs indicate the applied auxiliary voltage and the switching state of the output relay.
The active power transmitter is suitable for monitoring single-phase electrical industrial drives with variable motor load and other single-phase consumers.
· according to IEC/EN 60255-1
· Measurement method: Active power measurement / watt-meter
· Overload detection
· Electrically separated analogueue signals from either - 0 … 20 MA and 0 … 10 V or - 4 … 20 mA and 2 … 10 V.
· Adjustable response value
· Hysteresis fixed
· 1-phase
· LED display for auxiliary voltage and contact position
· Quiescent current principle
· 45 mm width
