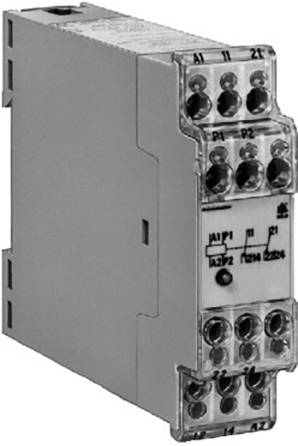

Dold Overload relay 24 V 1 change-over 1 pc(s) MK9052.11 DC24V PTC monitoring
EAN:
Part number:
Item no:
Product type
Overload relay
Functions
PTC monitoring
Contact type
1 change-over
Switching voltage (max.)
230 V AC
Switching current (max.)
1 A
Datasheet (PDF)
Technical specifications
- Weight 145 g
- Quick mounting: DIN rail
- Housing: Thermoplastic with V0 behavior according to UL Subject 94
- Product type
Overload relay
- Type
MK9052.11 DC24V
- Functions
PTC monitoring
- Operating voltage
24 V
- Features
+ LED
- Contact type
1 change-over
- Switching voltage (max.)
230 V AC
- Switching current (max.)
1 A
- Electrical lifespan
According to AC 15 at 3 A, AC 230 V: 8 x 105 operations IEC/EN 60947-5-1
- Durability
Mechanical life 20 > x 106 operations
- Connection
Screw terminal
- Min. temperature
-20 °C
- Max. temperature
+60 °C
IP20
IP40
- Width
22.5 mm
- Height
82 mm
- Depth
99 mm
- Dim
(W x H x D) 22.5 x 82 x 99 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359272 Dold Overload relay 24 V 1 change-over 1 pc(s) MK9052.11 DC24V PTC monitoring
User & Safety Instructions
User & Safety Instructions 2359272 Dold Overload relay 24 V 1 change-over 1 pc(s) MK9052.11 DC24V PTC monitoring
Description
The motor protection relay MK 9052 is used to prevent thermal motor overload. Special PTC thermistors (PTC resistors) are used as temperature sensors for motor protection. Up to 6 sensors can be connected in series, which, when a fixed resistance value is reached, cause the output relay of the MK 9052 to drop. An LED indicates the switching state. The motor protection relay operates according to the closed-circuit principle and monitors itself against wire break Note that when the power is switched on, the phase voltage is briefly present at terminals 12 and 22 until the output relay has responded.
· According to IEC/EN 60947-8
· 1 input for thermistors or bimetal contacts
· Wire break detection in sensor circuit
· Quiescent current principle (output relay not activated in the event of a fault)
· 22.5 mm width
This text is machine translated.
· According to IEC/EN 60947-8
· 1 input for thermistors or bimetal contacts
· Wire break detection in sensor circuit
· Quiescent current principle (output relay not activated in the event of a fault)
· 22.5 mm width
This text is machine translated.
