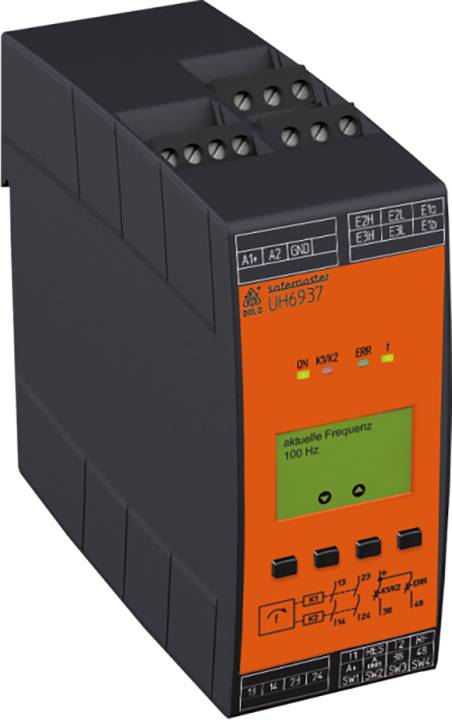

Image similar
Dold UH6937.02PS/61 DC24V 0066820 Reverse power relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Reverse power relay
No. of relay outputs
2
Operating voltage
24 V DC
Type
UH6937.02PS/61 DC24V
Probe inputs
Universelle Messeingänge für AC-Spannungen von 8 ... 280 V für 1-phasige Überwachung sowie 16 ... 690 V für 1- und 3-phasige Überwachung; Frequenz-Messeingang Spannungsbereich E1a-E2L. E1b-E3L: AC 8 ... 280 V. E1a-E2H. E1b-E3H: AC 16 ... 690 V; Eingangsfrequenz: Variante /0_ _: < 700 Hz. Variante /1_ _: < 1200 Hz; Galvanische Trennung: Frequenz-Messeingang zu Hilfsspannung und Ausgangskontakten
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Frequency measurement input
- Voltage range
- E1A-E2L, E1b-E3L: AC 8 ... 280 V
- E1A-E2H, E1b-E3H: AC 16 ... 690 V
- (Depending on the frequency, see characteristic curve)
- Input frequency
- Variant /0_ _ < : 700 Hz
- Variant /1_ _ < : 1200 Hz
- Galvanic isolation: Frequency measurement input to auxiliary voltage and output contacts
- Response value (frequency threshold)
- Variant /0_ _: Adjustable from 1 Hz ... 600 Hz
- Variant /1_ _: Adjustable from 1 Hz ... 1000 Hz
- Frequency frequency frequency converter
- Variant /0_ _: ≥ 1 kHz
- Variant /1_ _: ≥ 2 kHz
- Measurement accuracy < ± 2 %
- Stability of the set threshold for variation of the auxiliary voltage and temperature: < ± 1 %
- Hysteresis: Adjustable from 2 ... 10 % of the set response value
- Auxiliary voltage UH (galvanically isolated to the measuring input): 24 V DC
- The power supply must meet the requirements of SELV / PELV
- Voltage range: 0.8 ... 1.1 UH
- Nominal consumption: Type. 3.2 W
- Protection of the device: Internal with PTC
- Overvoltage protection: Internal by VDR
- Switch-on duration of reset button > : 1.2 s.
- Contact assembly: 2 normally open contacts
- Contact type: Relay, positively driven
- Thermal current Ith: 8 A (see summation current limit curve)
- SWITCHING CAPACITY ACCORDING TO AC 15: 3 A / AC 230 V IEC/EN 60947-5-1
- ACCORDING TO DC 13: 2 A / DC 24 V IEC/EN 60947-5-1
- In accordance with DC 13: 4 A / DC 24 V at 0.1 Hz
- Type
UH6937.02PS/61 DC24V
- Product type
Reverse power relay
- No. of relay outputs
2
- Probe inputs
Universelle Messeingänge für AC-Spannungen von 8 ... 280 V für 1-phasige Überwachung sowie 16 ... 690 V für 1- und 3-phasige Überwachung; Frequenz-Messeingang Spannungsbereich E1a-E2L. E1b-E3L: AC 8 ... 280 V. E1a-E2H. E1b-E3H: AC 16 ... 690 V; Eingangsfrequenz: Variante /0_ _: < 700 Hz. Variante /1_ _: < 1200 Hz; Galvanische Trennung: Frequenz-Messeingang zu Hilfsspannung und Ausgangskontakten
- Operating voltage
24 V DC
- Dim
(L x W x H) 121 x 45 x 107 mm
- Width
45 mm
- Height
107 mm
- Length
121 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2359199 Dold UH6937.02PS/61 DC24V 0066820 Reverse power relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2359199 Dold UH6937.02PS/61 DC24V 0066820 Reverse power relay No. of relay outputs: 2
Description
The UH 6937 speed and frequency monitor is used for safe frequency monitoring of alternating voltages. It is used for monitoring the output frequency of frequency converters or for monitoring the rotor frequency of loop rotor motors. Another area of application is the monitoring of drives in crane systems. The front display makes it easy and convenient to set the parameters for the respective application and to change them at any time.
·
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · according to IEC/EN 62061
Safety Integrity Level (SIL) 3 · according to IEC/EN 61508
Safety Integrity Level (SIL) 3 · according to IEC/EN 61511
· Over-, underfrequency or window monitoring of single-phase or three-phase alternating voltages
· user-friendly front display
For convenient, menu-driven parameterization
For setpoint and actual value display in Hz
· Fast response time through period measurement of the input frequency
· Universal measuring inputs for AC voltages of 8 ... 280 V for single-phase monitoring and 16 ... 690 V for 1- and 3-phase monitoring
· adjustable hysteresis
· adjustable release delay of 0 ... 100 sec.
· adjustable start-up bypass time of 0 ... 100 sec.
· adjustable alarm delay of 0.1 ... 100 sec.
· Alarm storage or auto reset
· galvanic isolation between measuring input, auxiliary voltage and output contacts
· 2-channel design
· positively driven output contacts
· LED displays and 2 semiconductor signal outputs
· 45 mm width
· with pluggable connection blocks for quick device replacement
This text is machine translated.
·
Performance level (PL) e and category 4 according to EN ISO 13849-1
SIL CLAIM LIMIT (SIL CL) 3 · according to IEC/EN 62061
Safety Integrity Level (SIL) 3 · according to IEC/EN 61508
Safety Integrity Level (SIL) 3 · according to IEC/EN 61511
· Over-, underfrequency or window monitoring of single-phase or three-phase alternating voltages
· user-friendly front display
For convenient, menu-driven parameterization
For setpoint and actual value display in Hz
· Fast response time through period measurement of the input frequency
· Universal measuring inputs for AC voltages of 8 ... 280 V for single-phase monitoring and 16 ... 690 V for 1- and 3-phase monitoring
· adjustable hysteresis
· adjustable release delay of 0 ... 100 sec.
· adjustable start-up bypass time of 0 ... 100 sec.
· adjustable alarm delay of 0.1 ... 100 sec.
· Alarm storage or auto reset
· galvanic isolation between measuring input, auxiliary voltage and output contacts
· 2-channel design
· positively driven output contacts
· LED displays and 2 semiconductor signal outputs
· 45 mm width
· with pluggable connection blocks for quick device replacement
This text is machine translated.
