Dometic Group PerfectCharge DCDC 24 DC/DC converter 24 V DC - 12 V/24 A 335 W
EAN:
Part number:
Item no:
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Voltage converter perfect charge DCDC 24
- High energy efficiency
- Easy installation with Plug-in system
- Low heat emission
- Simple and compact
- E-Certified (EMC/vehicle directives).
Technical specifications
- 335 W continuous power at 25 °C
- Operating temperature: -0 to + 40 °C
- IP protection class IP20
- Power consumption standby mode 8 mA
- Product type
DC/DC converter
- Used at
HGV
Car
335 W
- Input voltage
24 V DC
- Output voltage
12 V
- Max. output current
24 A
- Output current (max.) - rounded
24 A
- Dim
(L x W x H) 158 x 106 x 47 mm
- Weight
700 g
- Content
1 pc(s)
- Width
106 mm
- Height
47 mm
- Length
158 mm
- Type
PerfectCharge DCDC 24
- Nominal load efficiency
90 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1692343 Dometic Group PerfectCharge DCDC 24 DC/DC converter 24 V DC - 12 V/24 A 335 W
Description

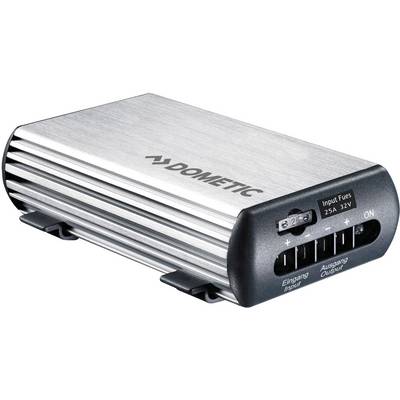

Do you have a cool box or other device that can only be operated with 12 V – where your vehicle only has a 24 V connection? This is no longer a problem. The Dometic PerfectPower DCDC voltage converter allows you to easily connect your devices. It has e-certified switching current technology and is extremely energy efficient. The compact and light device can be attached easily in the vehicle with its practical mounting feet.
This text is machine translated.
This text is machine translated.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
