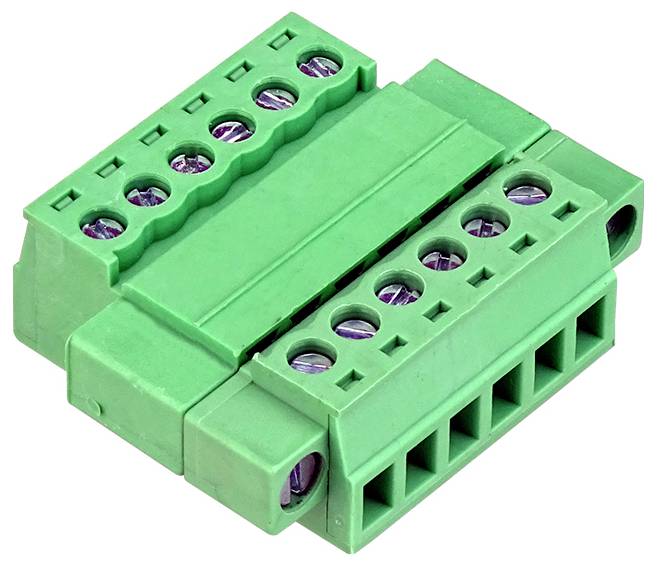

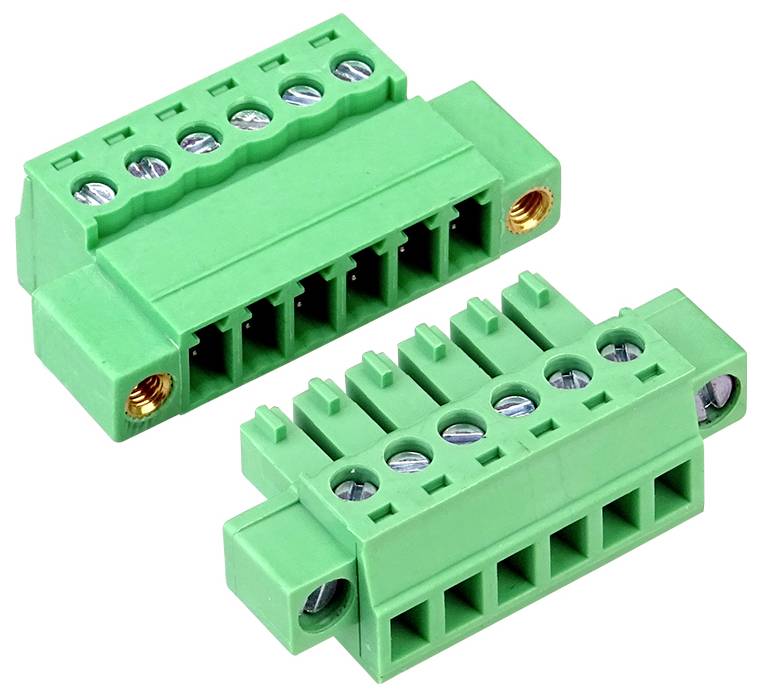

Donau Elektronik H381-06 Connector flexible: 0.08-1.5 mm² fixed: - Number of pins: 6 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
1.5 mm²
Nominal current - rounded value
8 A
Number of pins
6
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Technical specifications
- Polarity reversal protected plug connector with screw connection
- Screw M2, galvanized steel
- Housing material PA66
- Product type
Connector
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Number of pins
6
- Content
1 pc(s)
- Manufacturer part #
H381-06
- Type
H381-06
- Industrial packaging
Yes
- Contact material
Brass tin plated
- Nominal voltage
300 V
- Temperature range
Temperature range from -40°C to +105°C and short-term up to +250 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3760859 Donau Elektronik H381-06 Connector flexible: 0.08-1.5 mm² fixed: - Number of pins: 6 1 pc(s)
Description
The screw-terminal connectors are protected against polarity reversal and ensure reliable connections for demanding applications. The robust housing made of PA66 provides for high temperature and flame resistance, while screws made of zinc-plated steel and tin-plated brass contacts ensure long-term stable conductivity.
