dörner + helmer 450410 Double swivel wheel Wheel diameter: 75 mm Load capacity (max.): 100 kg 4 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Double swivel wheel

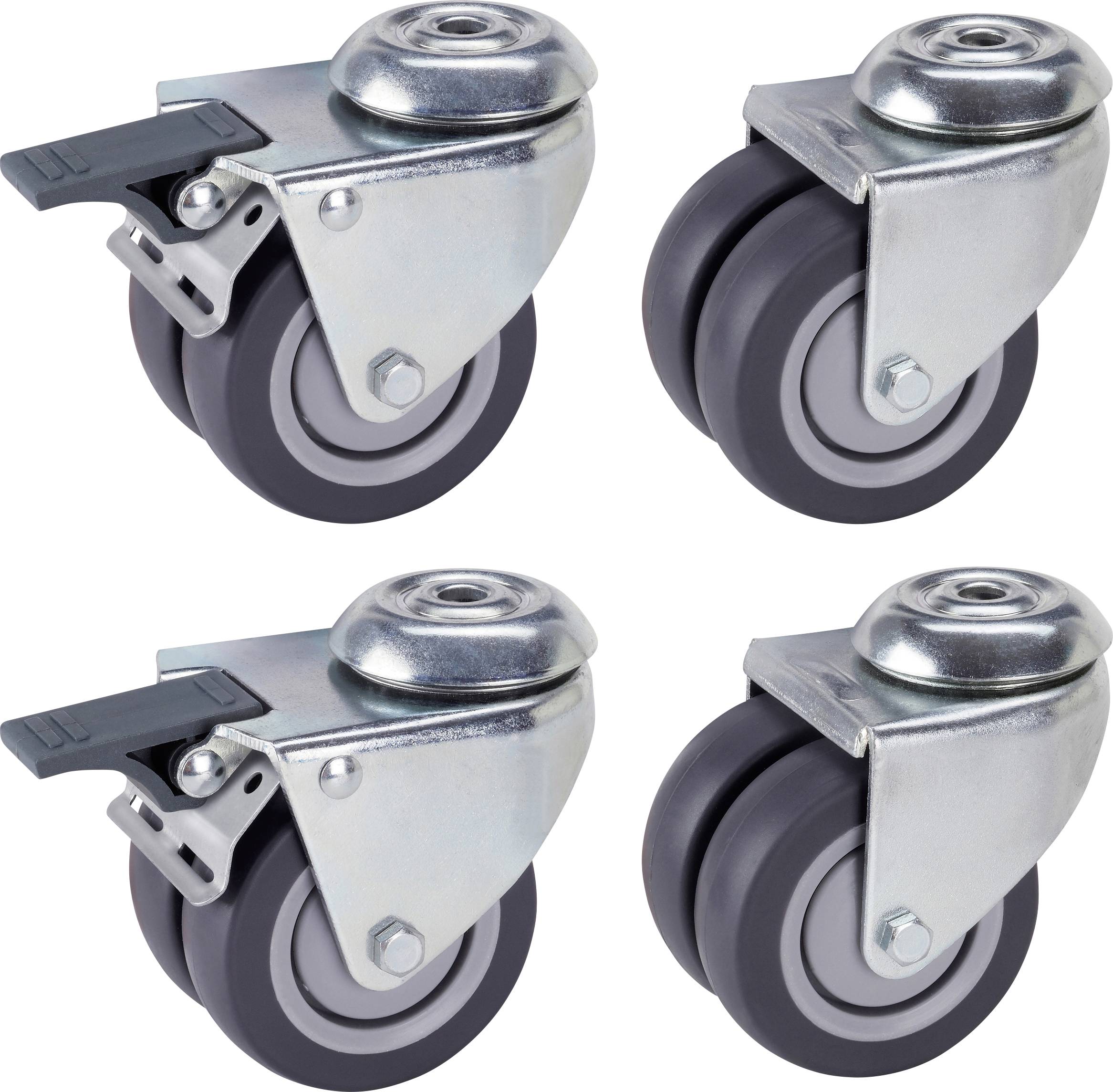

- The set is an all-rounder suitable for living areas, workshops, warehouses or garages in interior and exterior areas; these soft rubber rollers move easily heavy objects, furniture, transport boxes and tool boxes; 4 double castors that can be rotated by 360° have a track-free contact surface made of thermoplastic elastomer (TPE), of these 2 with a total catch, and are suitable even for sensitive types of soil. This high-quality ball bearing is characterized by very smooth running and very low rolling resistance, housing made of galvanized steel with double ball bearings in the rotating assembly;The total detector prevents accidental rolling away which prevents the thread protection from blocking the wheel
Technical specifications
- Product type
Double swivel wheel
- Wheel Ø
75 mm
- Load capacity (max.)
100 kg
- Features
Rear opening
- Total height
99 mm
- Bearing type
Ball bearing
- Material
Steel (galvanized)
Plastic
TPE
- Content
4 pc(s)
Documents & Downloads
Datasheet
Datasheet 3409785 dörner + helmer 450410 Double swivel wheel Wheel diameter: 75 mm Load capacity (max.): 100 kg 4 pc(s)
User & Safety Instructions
User & Safety Instructions 3409785 dörner + helmer 450410 Double swivel wheel Wheel diameter: 75 mm Load capacity (max.): 100 kg 4 pc(s)
Description
Use the TPE-swivel castors of this set with ball bearings and thread protection to build a mobile base for transportation, such as heavy objects such as furniture and construction materials. Order in garage and workshop, the tool box becomes mobile. The smooth-running, double ball-bearing in the rotating assembly provides for an optimum support of the load-carrying capacity and smooth-running rotation. The thread protection prevents dust or dirt from blocking the wheel.
This text is machine translated.
This text is machine translated.
Features
- 4-piece set of wheels with 4 screws, washers and nuts
Hints
Rollers with soft contact surfaces should not be used on unsealed absorbent surfaces such as stone, wood or parquet. The white oil contained in TPE rolls due to production can leak out and lead to contact discoloration. With sealed floors, this oil flies free of residue. At high temperatures, grease may leak out of the rotating assembly or bearing. Please check soil compatibility before use. For soft wood, cork or similar flooring, all rolls can leave wells or strips.
