dörner + helmer 735069 Leveling caster Wheel diameter: 65 mm Load capacity (max.): 300 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

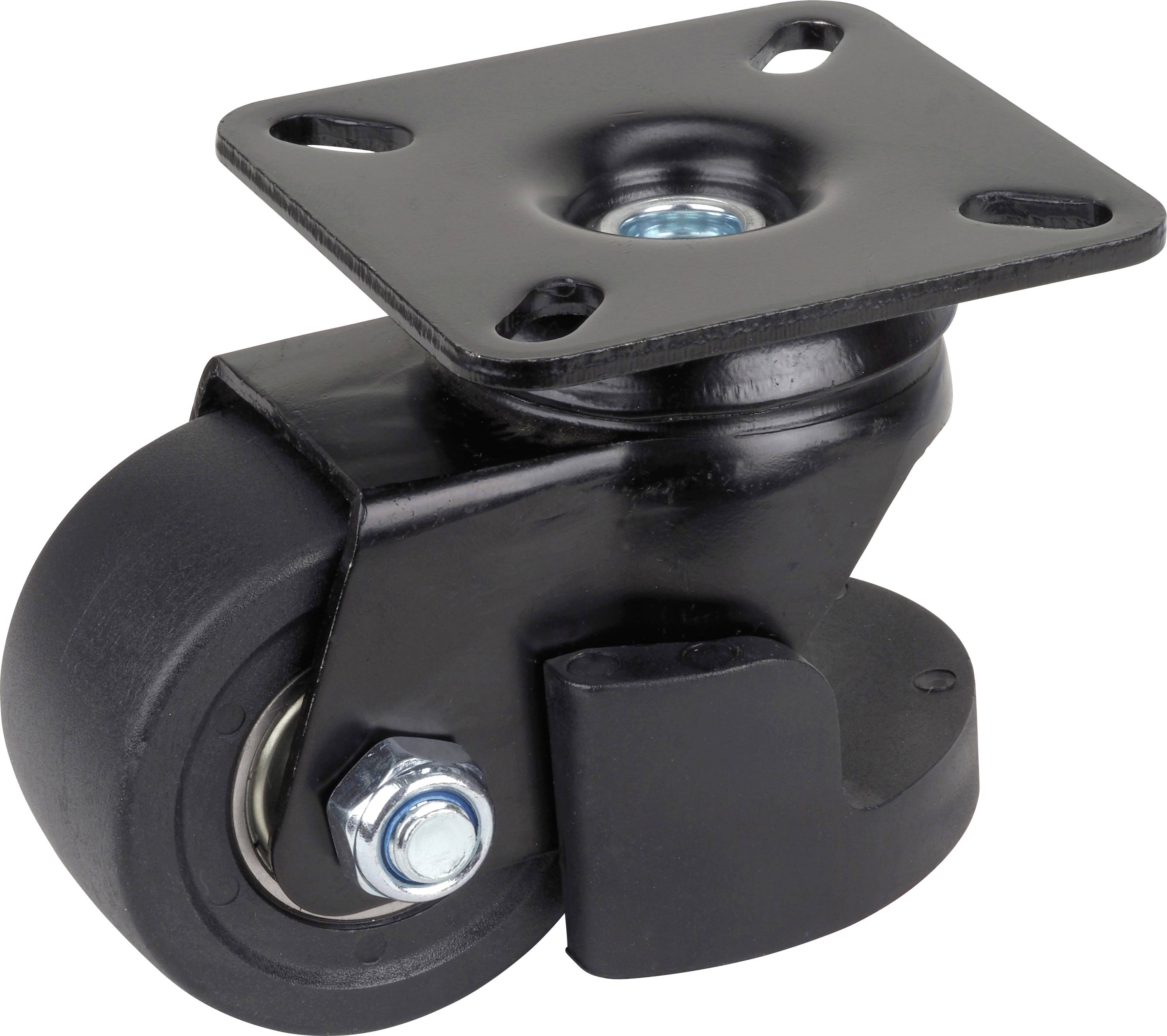

Leveling caster
- Used at all places, where objects are moved and height adjusted, as in the industrial sector, with machines, tool tables, transport containers, Stages, industrial printers and containers;By lowering the robust parking foot the wheel loses the ground contact and is protected by this relief (manual lifting detection); This stabilizes the object and prevents it from rolling away; power-saving movement of even heavy loads thanks to the low rolling resistance; PA wheels are suitable for many hard and smooth surfaces, such as industrial and cement floors, as well as tiles; wheel and rim made of polyamide with double ball bearings in the rotating assembly
Technical specifications
- Product type
Leveling caster
- Wheel Ø
65 mm
- Load capacity (max.)
300 kg
- Features
Mount
- Total height
90 mm
- Size
84 x 84 mm
- Wheel width
38 mm
- Bearing type
Ball bearing
- Material
Polyamide
Steel (galvanized)
- Content
1 pc(s)
- Hole distance
58 x 58 mm
Documents & Downloads
Datasheet
Datasheet 3409787 dörner + helmer 735069 Leveling caster Wheel diameter: 65 mm Load capacity (max.): 300 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3409787 dörner + helmer 735069 Leveling caster Wheel diameter: 65 mm Load capacity (max.): 300 kg 1 pc(s)
Description
Used at all places, where objects are moved and height adjusted, as in the industrial sector, with machines, tool tables, transport containers, Platforms, industrial printers and containers. By lowering the robust locking foot the wheel loses the ground contact and is protected by this relief (manual lifting detection); this stabilizes the object and prevents it from rolling away. The height adjustment is done using open-ended spanner. Easy to move even heavy loads thanks to the low rolling resistance. The polyamide (PA) wheels are suitable for many hard and smooth surfaces, such as industrial and cement floors as well as tiles. Wheel and rim made of polyamide with double ball bearing in the rotating assembly.
This text is machine translated.
This text is machine translated.
Hints
Please check soil compatibility before use. For soft wood, cork or similar flooring, all rolls can leave wells or strips.
