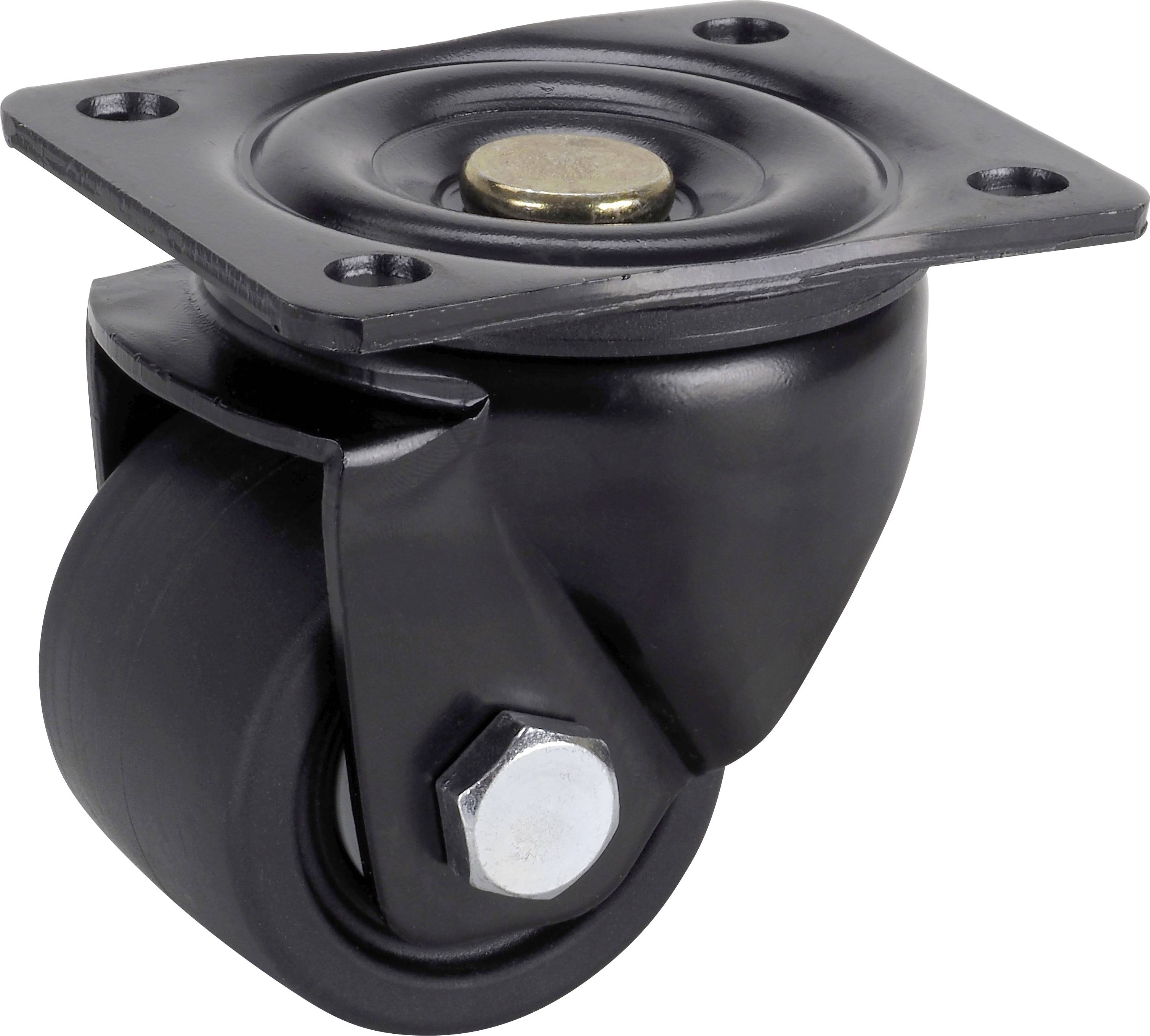

dörner + helmer 735075 Heavy-duty swivel wheel Wheel diameter: 75 mm Load capacity (max.): 600 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Heavy-duty swivel wheel
- Swivel castor with plate for use anywhere where heavy objects are moving, for example in industrial applications, workshops or plant engineering systems; the low profile makes the castor perfect for low-profile transport devices; gentle moving of vehicle due to low rolling resistance; easy operation thanks to double ball bearings;UV-resistant
Technical specifications
- Product type
Heavy-duty swivel wheel
- Wheel Ø
75 mm
- Load capacity (max.)
600 kg
- Features
Mount
- Total height
105 mm
- Size
105 x 85 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Plastic
Steel (galvanized)
- Content
1 pc(s)
- Hole distance
80 x 60 mm
Documents & Downloads
Datasheet
Datasheet 3409788 dörner + helmer 735075 Heavy-duty swivel wheel Wheel diameter: 75 mm Load capacity (max.): 600 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3409788 dörner + helmer 735075 Heavy-duty swivel wheel Wheel diameter: 75 mm Load capacity (max.): 600 kg 1 pc(s)
Description
The heavy-duty guide roller with plate and plastic wheel is suitable for very high loads and thus for use wherever heavy objects are moved, such as in industry, workshops or in plant engineering. The steering wheel can be rotated by 360° and has a double ball bearing in the rotating assembly. Thanks to their low height the roller is perfect for low profile objects. The double ball bearing ensures easy running and efficient movement thanks to the low rolling resistance. The material is characterized by UV resistance.
This text is machine translated.
This text is machine translated.
Hints
Please check soil compatibility before use. For soft wood, cork or similar flooring, all rolls can leave wells or strips.
