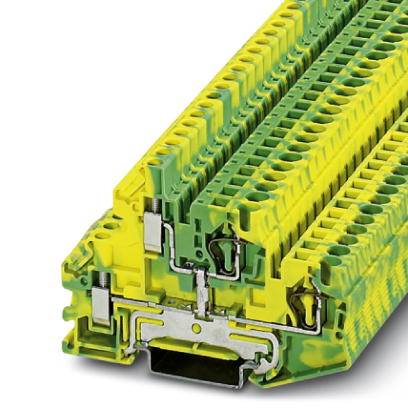

Double-level spring-cage terminal block STTBU 4-PE 3033171 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Dual port spring-loaded terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Content
50 pc(s)
Datasheet (PDF)
Total (€ 10.07 / piece)
€ 503.36
plus VAT.
14-day return policy included
Highlights & Details
Double-level spring-cage terminal block STTBU 4-PE
- STTBU 4-PE
Technical specifications
- Product type
Dual port spring-loaded terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Green
Yellow
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3033171
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STTBU 4-PE
- Dim
(L x W x H) 81 x 6.2 x 55.5 mm
- Width
6.2 mm
- Height
55.5 mm
- Length
81 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 566215 Double-level spring-cage terminal block STTBU 4-PE 3033171 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566215 Double-level spring-cage terminal block STTBU 4-PE 3033171 Phoenix Contact
Description
Double-level spring-cage terminal block, Connection method: Screw connection, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Width: 6.2 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
