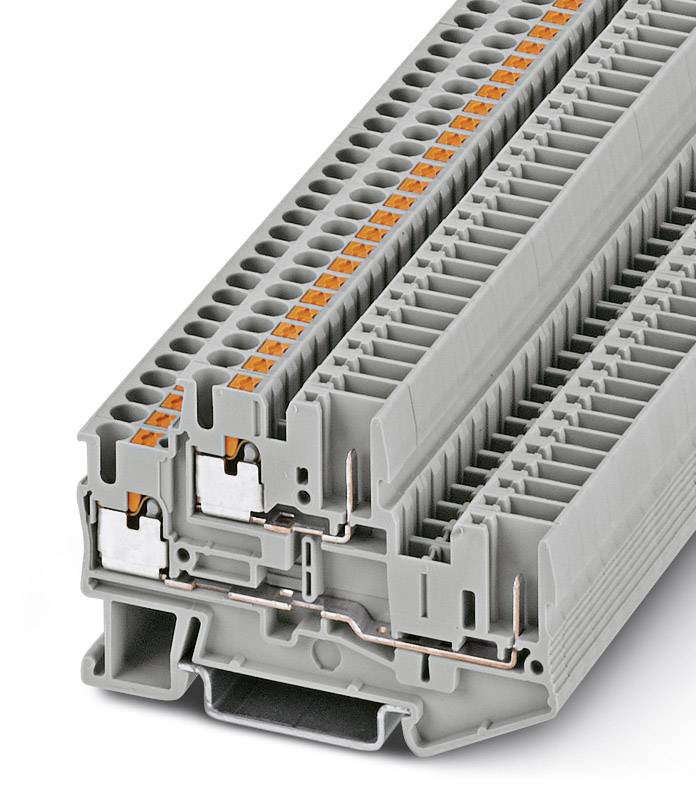

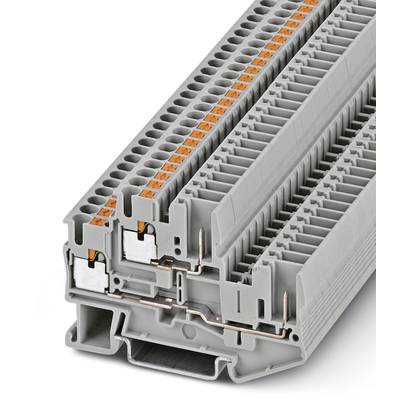

Double-level terminal block PTTB 2,5/2P 3210871 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port terminal
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.85 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Double-level terminal block PTTB 2,5/2P
- PTTB 2,5/2P
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3210871
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTTB 2,5/2P
- Dim
(L x W x H) 71.5 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
71.5 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566416 Double-level terminal block PTTB 2,5/2P 3210871 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566416 Double-level terminal block PTTB 2,5/2P 3210871 Phoenix Contact
Description
Double-level terminal block, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Connection type: Push-in / plug connection, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
