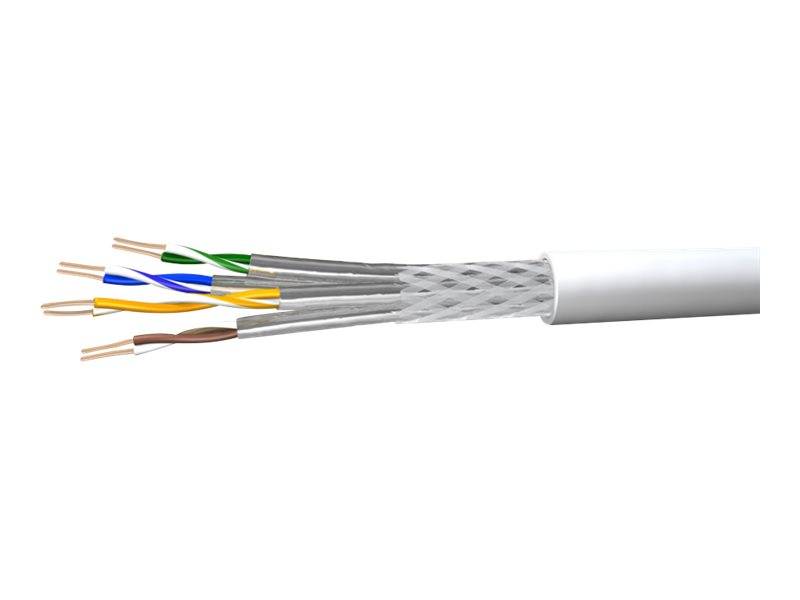

DRAKA 21.05.4081 Electrical wiring CAT 7 S/FTP White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
Cable features
Halogen-free
Highlights & Details
DRAKA Uhome SS26 – bulk cable – 100 m – SFTP, PiMF
- DRAKA UCHome SS26 - white; type: Bulk cable - CAT 7 - IEEE 802.3at; technology: SFTP, PiMF; shielding material: Completely laminated plastic film with tin-plated copper braid; wires per cable: 8 wires; performance features: Halogen-free, riser, flame resistant, PoE+ ready, Length display, exposed copper wire, PoE-enabled; cable length: 100 m; color: white
Technical specifications
- CAT 7 - IEEE 802.3at - halogen-free, riser - white
- Product type
Electrical wiring
CAT 7
S/FTP
- Cable type
S/FTP
- Cable features
Halogen-free
- Factory colour
White
- Content
1 pc(s)
- Manufacturer part #
21.05.4081
- Type
Draka UCHome SS26 - Bulkkabel - 100 m - SFTP, PiMF
- Cable design
Round
- Cable length
0 m
- Version
Cable
- Cable use
Networks
- Type
Uhome SS26
- Used at
Indoors
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3797735 DRAKA 21.05.4081 Electrical wiring CAT 7 S/FTP White 1 pc(s)
Description
UCHOME CAT.7 SS26 Installation cable S/FTP 4P
LSHF Data sheet Application area: Primä <>;r (Campus), br
-T; br/ 100Base-T; 1000Base-T; 10 GBase-T ISDN; Erfüll
at least the requirements of class EA with
a conductor diameter in AWG26 at a maximum
Ütransfer rateänge of 60 m instead of 90 m in the permanent link.
POE and POE+ gemäß <>IEEE 802.3at Applicable standards: Br/ IEC 61156-6 work area cable ISO/IEC 11801 2nd ed.
EN 50173-5 EN 50288-4-2 Non-flammable: LSHF(FRNC): IEC 60332 <>-1, br/ IEC 60754-2, IEC 61034 Design: Conductors Cu wire, <>
Ø 1.0 mm twisting 2 wires to pair shielding aluminum <>-coated br/ plastic composite foil twisting to soul 2x2
pairs to soul Total shielding Cu-braid
tin-plated protective sheath LSHF,
weiß
This text is machine translated.
LSHF Data sheet Application area: Primä <>;r (Campus), br
-T; br/ 100Base-T; 1000Base-T; 10 GBase-T ISDN; Erfüll
at least the requirements of class EA with
a conductor diameter in AWG26 at a maximum
Ütransfer rateänge of 60 m instead of 90 m in the permanent link.
POE and POE+ gemäß <>IEEE 802.3at Applicable standards: Br/ IEC 61156-6 work area cable ISO/IEC 11801 2nd ed.
EN 50173-5 EN 50288-4-2 Non-flammable: LSHF(FRNC): IEC 60332 <>-1, br/ IEC 60754-2, IEC 61034 Design: Conductors Cu wire, <>
Ø 1.0 mm twisting 2 wires to pair shielding aluminum <>-coated br/ plastic composite foil twisting to soul 2x2
pairs to soul Total shielding Cu-braid
tin-plated protective sheath LSHF,
weiß
This text is machine translated.
Features
- DRAKA Uhome SS26 bulk cable – 100 m – white
- Type : bulk cable - CAT 7 - IEEE 802.3at
- Technology : SFTP, PiMF
- Shielding material : Completely laminated plastic foil with tin-plated copper braid
- Wire per cable : 8 wires
- Features : Halogen-free, riser, flame resistant, PoE+ ready, length indicator, Exposed copper wire, PoE enabled
- Length : 100 meters
- Colour : White
