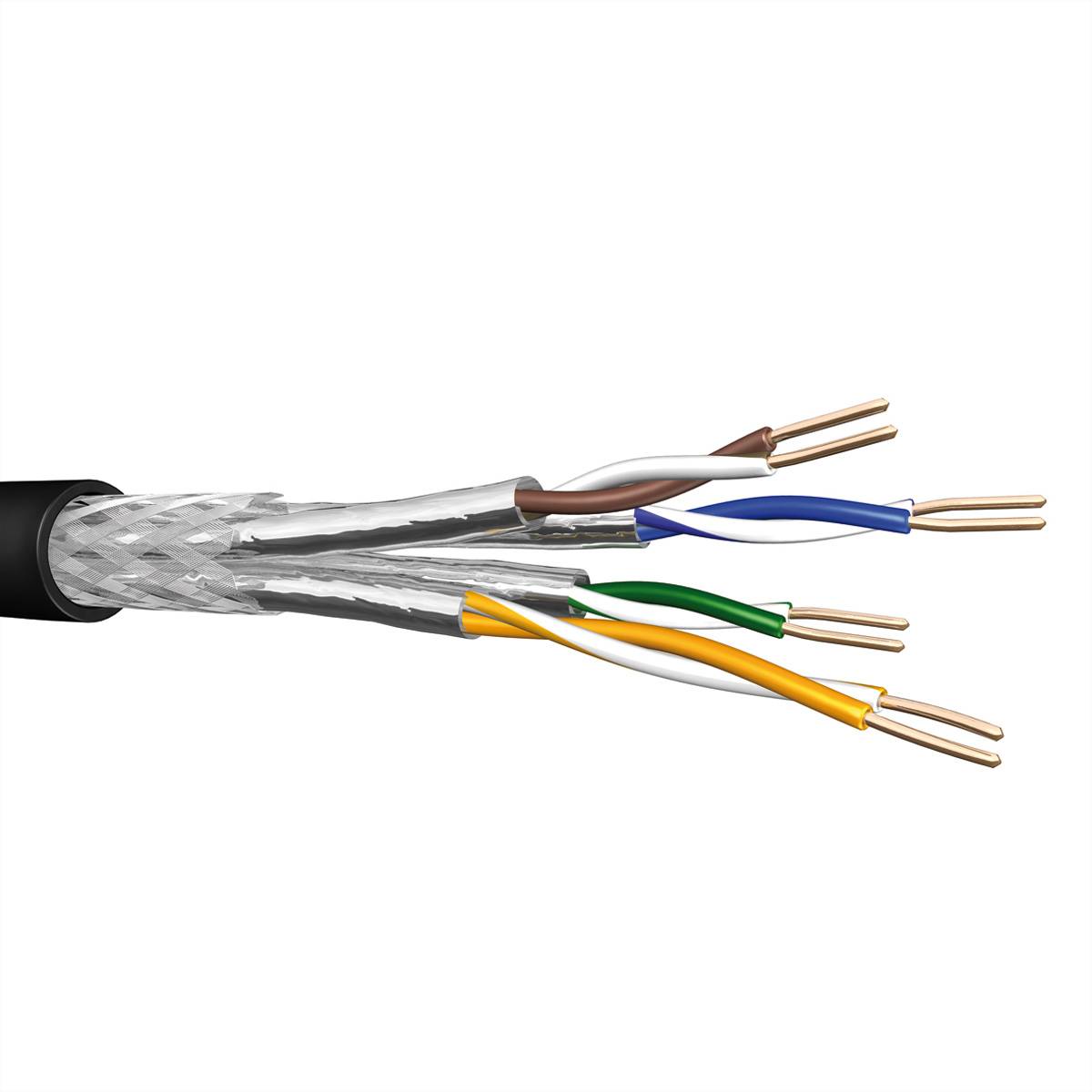

DRAKA 60011276 Electrical wiring CAT 7 S/FTP Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
Factory colour
Black
Datasheet (PDF)
Highlights & Details
Robust: Based on the 4 pair Cat7 PiMF cable UC900 SS23, the product is equipped with a thick-walled cable suitable for direct underground laying...
- Suitable for laying directly in the ground
- Cat 7 cable with PE protective sheath
- Aluminium-coated plastic composite film
- Total shield: Tin-plated copper braid
- Protection jacket PE, black, WDD. 1.5 mm
Technical specifications
- Product group: Twisted pair cable
- Product type: Installation cable
- Colour, black
- Content 1 m
- Shielding type S/FTP (PiMF)
- Transmission quality Cat7/Class F
- Impedance 100 Ohm
- Number of wires 8
- Wire cross-section (AWG) AWG 23
- Wire type: Solid wire
- Bending radius: Min. 80 mm with tensile load
- Outer Ø cable 9.5 mm
- LSOH cable: No
- Material outer sheath cable: PE, black, WDD. 1.5 mm
- Technical features: Suitable for direct underground laying
- Packaging height 30 mm
- Package width 40 mm
- Packaging depth 500 mm
- Package weight: 0,042 kg
- Gross weight: 0.042
- Product type
Electrical wiring
CAT 7
S/FTP
- Cable type
S/FTP
- Factory colour
Black
- Content
1 pc(s)
- Manufacturer part #
60011276
- Type
Draka UC900 SS23 PE - Bulkkabel - SFTP - CAT 7
- Version
Cable
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3797730 DRAKA 60011276 Electrical wiring CAT 7 S/FTP Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3797730 DRAKA 60011276 Electrical wiring CAT 7 S/FTP Black 1 pc(s)
Description
Robust: Based on the 4 pair Cat7 PiMF cable UC900 SS23, the product is equipped with a thick-walled polyethylene outer sheath suitable for the direct underground laying, which reliably protects the high-quality inner life against damages caused by the surrounding material. Suitable for laying directly in the ground. Cat 7 cable with PE protective sheath. . Assembly:. Conductor: Copper wire, plain Ø 0.56 mm (AWG23). Insulation: Foam-skin polyethylene, Ø 1.4 mm. Versioning: 2 wires to pair. Laying: 4 pairs (PiMF) to the soul. Pair shielding: Aluminium-coated plastic-composite film. Overall shield: Tinned copper braid (approximately 65% coverage). Protection jacket PE, black, WDD. 1.5 mm
This text is machine translated.
Features
- DRAKA UC900 SS23 PE - Black bulk cable
- Type: Bulk cable - CAT 7
- Technology : SFTP cable
- Shielding material : aluminum foil with tin-plated copper braid
- Wire per cable : 8 wires
- Features : Outdoor
- Colour: black
Scope of delivery
- DRAKA UC900PE SS23 S/FTP AWG 23 black
