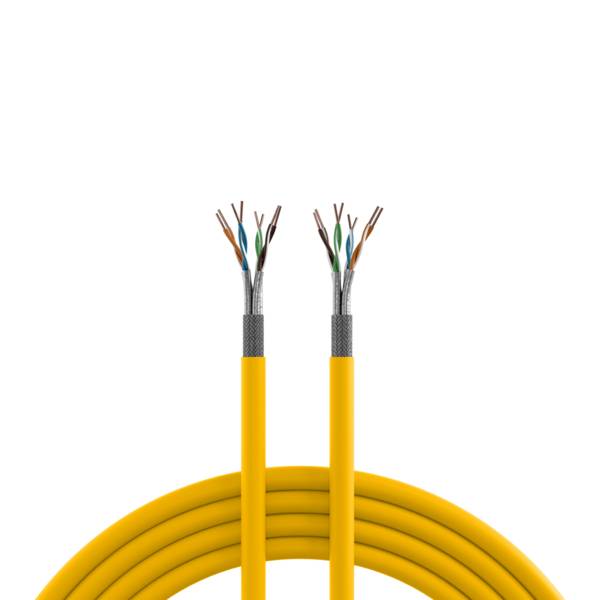

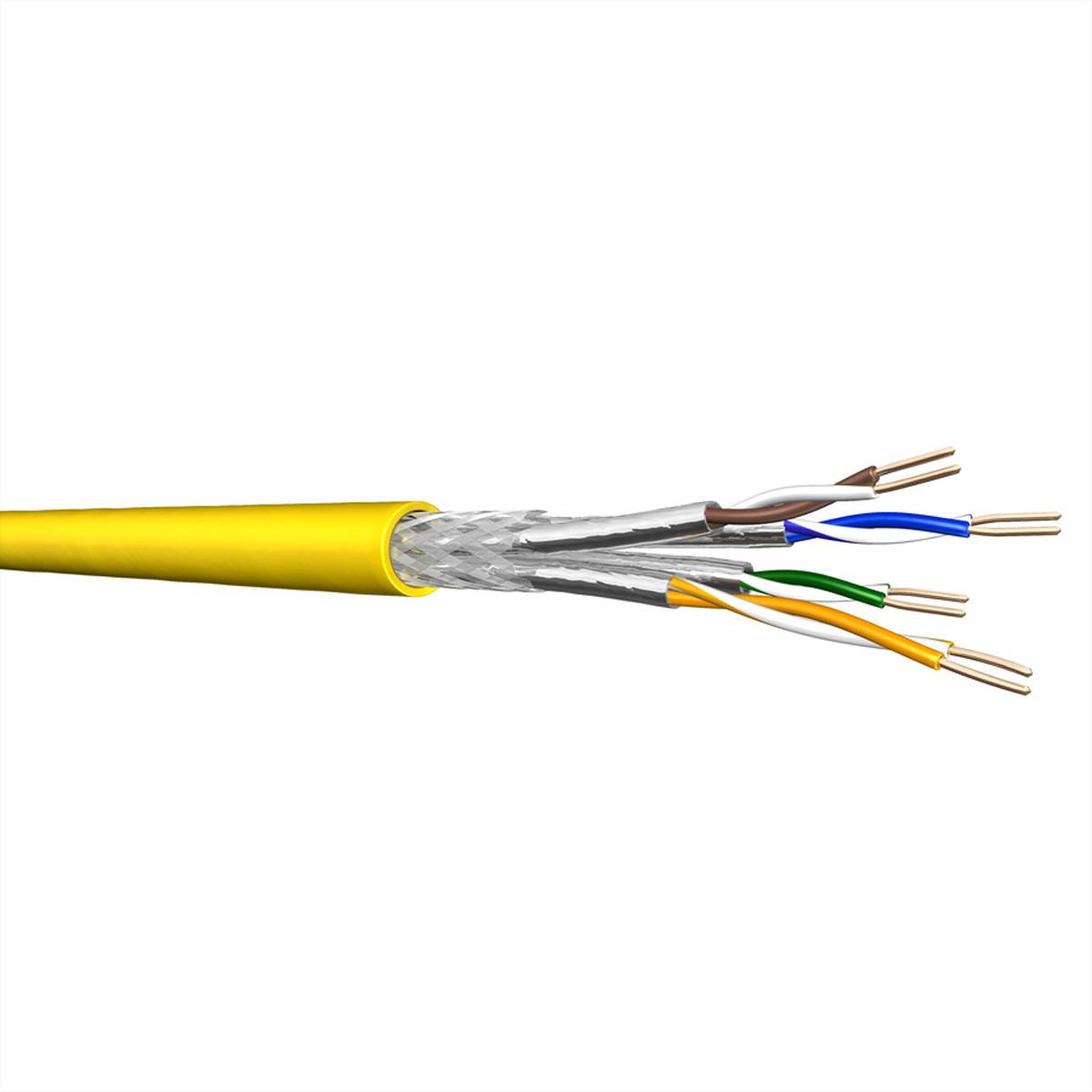

DRAKA 60050652 Electrical wiring CAT 8.1 S/FTP Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 8.1
Shielding
S/FTP
Cable type
S/FTP
Cable features
Halogen-free
Flame-retardant
Datasheet (PDF)
Highlights & Details
For high-end applications, the cable UCFUTURE COMPACT Cat8.2 allows the highest transfer rates of up to 40Gbit/s....
- Data cable for Cat. 8.2 cabling
- Outer diameter 8.5 mm
- Fire load 674 MJ/km.
- Aluminium-coated plastic composite film
- Halogen-free flame-resistant sheath material according to EN50289-2-2
Technical specifications
- Product group: Twisted pair cable
- Product type: Installation cable
- Colour: Yellow
- Length: 500 m
- Content 500 m
- Shielding type S/FTP (PiMF)
- Transmission quality Cat8.1 / Class I
- Impedance 100 Ohm
- Number of wires 8
- Wire cross-section (AWG) AWG 22
- Wire type: Solid wire
- Bending radius: Min. 60 mm with tensile load
- Outer Ø cable 7.5 mm
- Cable LSOH: Yes
- Material outer sheath cable: FRNC
- Technical features: Skew at 100 MHz (guide value): 9 ns/100m
- Fire protection class DCA
- RAL color: RAL 1021 rapeseed yellow
- Packaging height 400 mm
- Package width 400 mm
- Packaging depth 490 mm
- Package weight: 40 kg
- Gross weight: 40
- Product type
Electrical wiring
CAT 8.1
S/FTP
- Cable type
S/FTP
- Cable features
Halogen-free
Flame-retardant
- Factory colour
Yellow
- Content
1 pc(s)
- Manufacturer part #
60050652
- Type
Draka
- Halogen-free
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3797733 DRAKA 60050652 Electrical wiring CAT 8.1 S/FTP Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3797733 DRAKA 60050652 Electrical wiring CAT 8.1 S/FTP Yellow 1 pc(s)
Description
For high-end applications the cable UCUTURE COMPACT Cat8.2 permits the highest transfer rates of up to 40Gbit/s. DRAKA data cable UC2000 or UCUTURE COMPACT T22 for Cat.8.2 cabling. Outer diameter 8.5 mm Fire load 674 MJ/km. Weight 80 kg/km . Construction. Conductor: Copper wire, plain Ø 0.64 mm (AWG22). Insulation: Foam-skin polyethylene, Ø 1.6 mm. Versioning: 2 wires to pair. Pair shielding: Aluminium-coated plastic-composite film. Versioning: 4 pairs (PiMf) to the soul. Total shield: Tin-plated copper braid. Protection sheath: Halogen-free flame-resistant sheath material according to EN50289-2-27, yellow RAL 1021. . Electrical properties at 20°C±5°C. Loop resistance 130 Ohm/km Resistance unbalance 1%. Insulation resistance (500 V) >= 5000 MOhm*km. Capacity at 800 Hz (target value) 43 nF/km Unbalance of capacity (pair / earth) <= 1200 pF/km. Relative propagation speed approx. 73 %. Time difference <= 20 ns/100m. Testing voltage (DC, 1 min) wire/wire and wire/shield: 1000 V . Coupling damping 85 dB
This text is machine translated.
Scope of delivery
- DRAKA UC2000/UCFUUTURE COMPACT 22 CAT.8.2 S/FTP H AWG 22 yellow, 500 m
