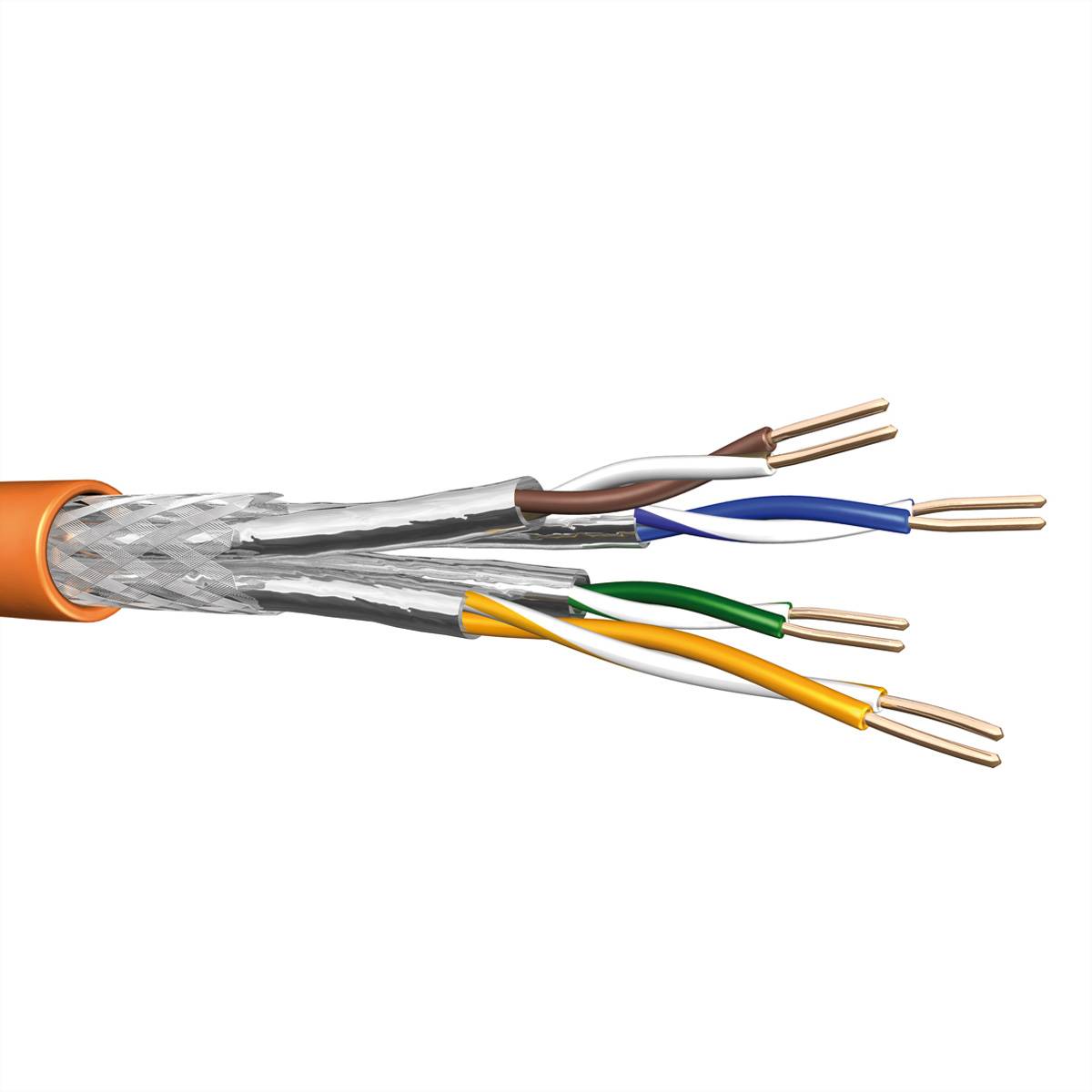

DRAKA 60060629 Electrical wiring CAT 7 S/FTP Orange 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
Cable features
Halogen-free
Flame-retardant
Datasheet (PDF)
Highlights & Details
Data cable for Cat. 7 cables - now with fire protection class Cca...
- Data cable for Cat. 7 cables
- Fire protection class Cca
- Single pair shielding with common braided shield
Technical specifications
- Product group: Twisted pair cable
- Product type: Installation cable
- Colour: orange.
- Length: 1000 m
- Content 1000 m
- Shielding type S/FTP (PiMF)
- Transmission quality Cat7/Class F
- Impedance 100 Ohm
- Number of wires 8
- Wire cross-section (AWG) AWG 23
- Wire type: Solid wire
- Bending radius: Min. 60 mm with tensile load
- Outer Ø cable 7.5 mm
- Cable LSOH: Yes
- Material outer sheath cable: FRNC
- Technical features: Skew at 100 MHz (guide value): 9 ns/100m
- Fire protection class: Approx.
- RAL color: Pastel orange RAL 2003
- Packaging height 320 mm
- Package width 600 mm
- Packaging depth 600 mm
- Package weight: 43 kg
- Gross weight: 43
- Product type
Electrical wiring
CAT 7
S/FTP
- Cable type
S/FTP
- Cable features
Halogen-free
Flame-retardant
- Factory colour
Orange
- Content
1 pc(s)
- Manufacturer part #
60060629
- Type
Cat.7
- Halogen-free
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3797732 DRAKA 60060629 Electrical wiring CAT 7 S/FTP Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3797732 DRAKA 60060629 Electrical wiring CAT 7 S/FTP Orange 1 pc(s)
Description
Data cable for Cat. 7 cabling - now with fire protection class CCa DRAKA data cable UC900 SS23 for Cat. 7 cabling. Single pair shielding with common braided shield. Color code: Wsbl/bws, wswor/orws, wsgn/gnws, wsbr/brws. . Construction. Conductor: Copper wire, plain Ø 0.56 mm (AWG23). Insulation: Foam-skin polyethylene, Ø 1.4 mm. Versioning: 2 wires to pair. Versioning: 4 pairs (PiMf) to the soul. Pair shielding: Aluminium-coated plastic-composite film. Overall shield: Tinned copper braid (approximately 65% coverage). Protection sheath: FRNC, orange RAL 2003 . Electrical properties at 20°C±5°C. Loop impedance <= 150 Ohm/km Resistance unbalance <= 2%. Insulation resistance (500 V) >= 5000 MOhm*km. Capacity at 800 Hz (target value) 43 nF/km Unbalance of capacity (pair / earth) <= 1500 pF/km. Relative propagation speed approx. 79 %. Signal duration <= 425 ns/100m. Time difference <= 9 ns/100m. Testing voltage (DC, 1 min) wire/wire and wire/shield: 1000 V . Coupling resistance at 1 MHz <= 5
This text is machine translated.
Scope of delivery
- DRAKA UC900 SS23 S/FTP H AWG 23 orange, Cca, 1000 m
