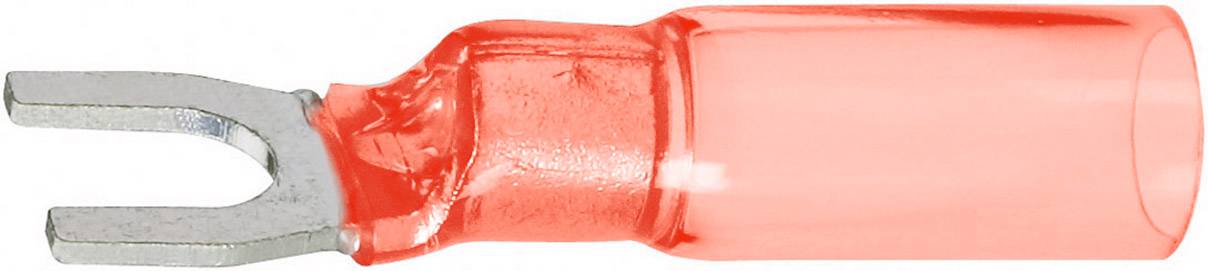

DSG Canusa 7933110302 U terminal + heatshrink 0.50 mm² 1.50 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
U terminal
Thread size
M5
Hole Ø
5.3 mm
Insulation type
Partially insulated
Contact material
Cathode copper, tin plated
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.33
21
12% = € 0.04
€ 0.29
35
12% = € 0.04
€ 0.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.33 / piece)
€ 2.31
plus VAT.
Highlights & Details
DSG Canusa 7933110302 U terminal + heatshrink 0.50 mm² 1.50 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)
- Red
- Cross section (max.): 1.50 mm²
Our service for you
Technical specifications
- Strain relief: up to +35%
- 100% water proof
- Product type
U terminal
- Factory colour
Red
- Thread size
M5
- Hole Ø
5.3 mm
- Insulation type
Partially insulated
- Contact material
Cathode copper, tin plated
- Content
1 pc(s)
- Manufacturer part #
7933110302
- Type
7933110302
- max. cross section
1.50 mm²
- Min. cross section
0.50 mm²
- Cross-section range
0.50 - 1.50 mm²
- RoHS-compliant
Yes
- Shrink temperature
+100 - +200 °C
- Features
+ heatshrink
- Support sleeve
No
- Temperature range
55 - +125 °C
- Cross section
0.5 - 1.5 mm²
- Connection
-
Documents & Downloads
Datasheet
Datasheet 529019 DSG Canusa 7933110302 U terminal + heatshrink 0.50 mm² 1.50 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 529019 DSG Canusa 7933110302 U terminal + heatshrink 0.50 mm² 1.50 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)
Information
Information 529019 DSG Canusa 7933110302 U terminal + heatshrink 0.50 mm² 1.50 mm² Hole Ø=5.3 mm Partially insulated Red 1 pc(s)
Description
Simply insert the stripping wire into the appropriate type of connector and crimp using a commercially available crimping tool. Then heat using hot air blower until the tubing has comletely shrunk onto the wire and the connection is perfect. Shrinks up to 40% faster than conventional crimp connectors with heat-shrink tubing insulation. Excellent abrasion resistance.
