Dynatron A41 1U CPU cooler + fan AMD TR4, AMD SP3, #####AMD sTRX4, #####AMD sWRX8
EAN:
Part number:
Item no:
Highlights & Details

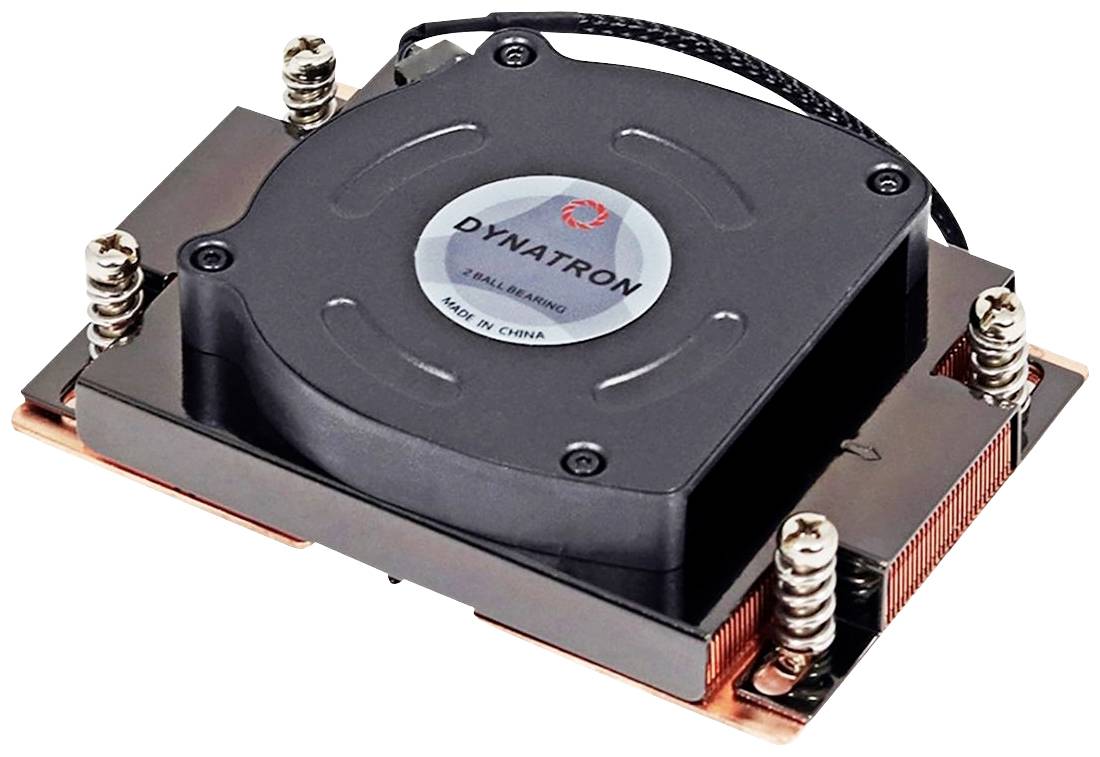

Dynatron A41 1U CPU cooler + fan
Technical specifications
- Compatible with: Socket TR4, socket SP3, socket sTRX4, socket sWRX8
- Cooling material: Copper
- Radiator material: Copper heat sink with steam chamber base
- Fan diameter 80 mm
- Blower height 13 mm
- Fan bearing: Double ball bearing
- Rotation speed 2000/4900/8600 rpm
- Airflow (5.59/14.76/26.25 cfm)
- Air pressure 3.69/25.28/89.8 mm
- Noise level 23.3/43.5/62.2 dBA
- Noise and performance details: 23.3 dBA (5.59 cfm) at 2000 rpm ¦ 43.5 dBA (14.76 cfm) at 4900 rpm ¦ 62.2 dBA (26.25 cfm) at 8600 rpm
- Mains connection: Fan connection, 4-pin
- Nominal voltage: 12 V
- Power consumption 1.08/4.7/23.45 W
- Features: PWM-support (pulse-width modulation), thermal grease Shin-Etsu 7762 pre-printed, TDP up to 225 W.
- Product type
CPU cooler + fan
AMD TR4
AMD SP3
#####AMD sTRX4
#####AMD sWRX8
- Noise emission (max.)
62.2 dBa
- Rotational speed (min.)
2000 U/min
- Rotational speed (max.)
8600 U/min
- Type of bearing
Double ball bearing
- Connection
4-pin PWM
- Heatsink material
Copper
- Weight
480 g
- Width
120 mm
- Height
28.4 mm
- Depth
82 mm
- Noise emission
50.1 dBa -
- Fan dimensions
80 x 13 mm
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Security datasheet
Security datasheet 2898563 Dynatron A41 1U CPU cooler + fan AMD TR4, AMD SP3, #####AMD sTRX4, #####AMD sWRX8
Signal word
GHS / H Statements
- H 411: Toxic to aquatic life, with long-lasting effects
GHS / P Statements
- P 273: Avoid release into the environment
- P 391: Collect spillage
- P 501: Dispose of contents/container at …
Description
Recommended for AMD Ryzen thread ripper processor, socket sWRX8, sTRX4 and TR4, and AMD Epic processor socket SP3, aluminum PWM fan for heat dissipation, active cooler for 1U server, supports CPU power up to 225 watt heat dissipation.
