EA Elektro Automatik EA-ELM 5200-12 Electrical load 200 V DC 12 A 320 W

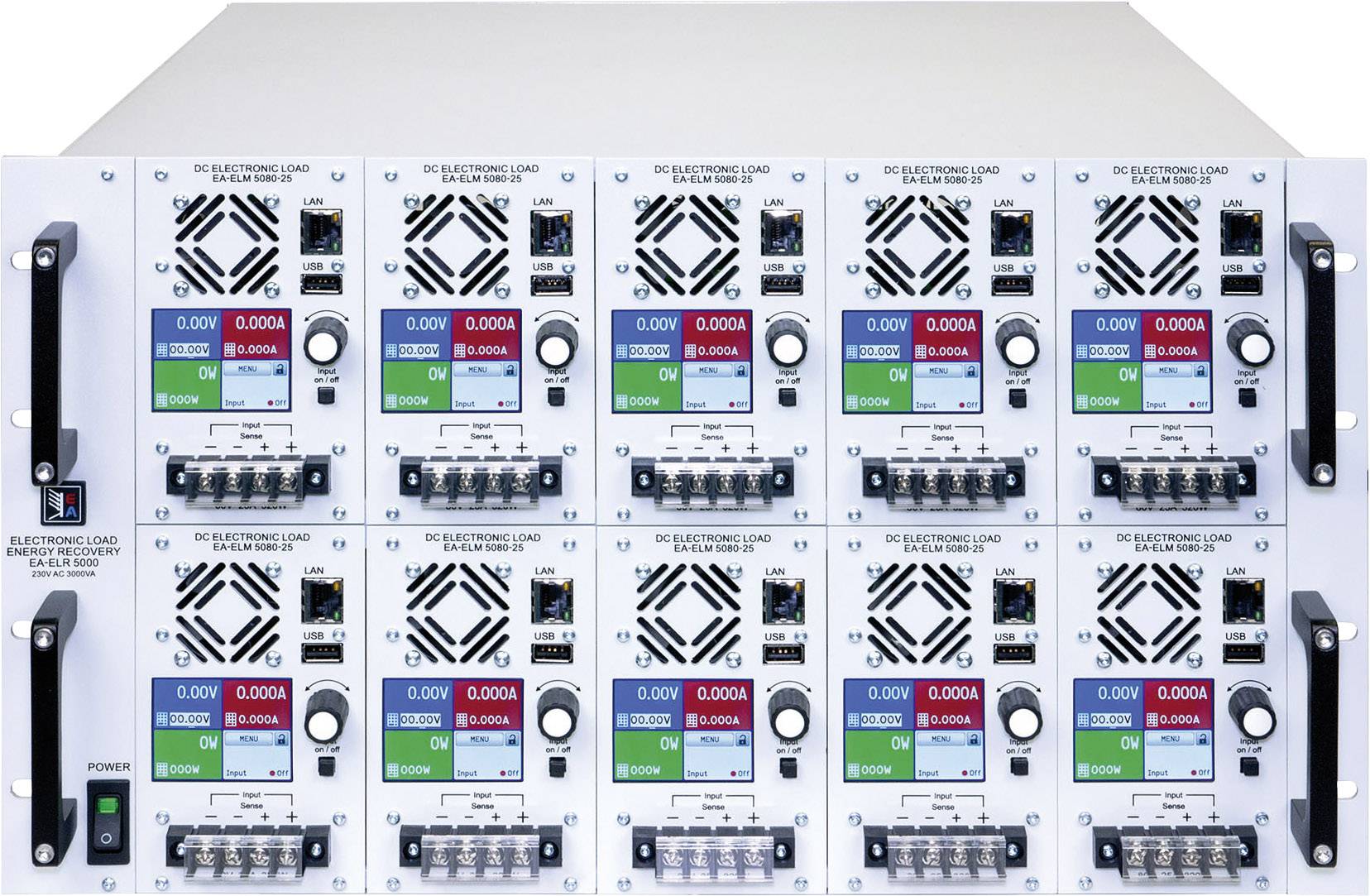

This high-quality micro-processor-controlled multi-channel electronic load series with power feedback function, possesses all the essential functions such as in the laboratory operation in R&D and in industrial test benches are needed. It is suitable for load test on electrical and electronic components and parts such as semiconductor, analog and digital circuits, DC sources, capacitors, batteries, etc. The system consists of a 19" 6U rack, prepared for the recording of up to 10 load modules per 320 W. The three main operating modes, constant voltage (CV), constant current (CC) and constant power (CP) are available and make this series an ideal testing agent for use in test benches and burn-in facilities. As a special feature, the series EA-ELR 5000 with a highly modern and highly efficient power inverter with regenerative feedback capability. The examinee discharged power (DC) is converted into a mains synchronous AC voltage (220-240V~ 50/60Hz) and back into the house network is fed. This energy can then provide the consumer in the house share and does not have to be ordered via the EVU. The system efficiency is up to 87% and thus eliminates for the most part, the conventional electronic loads usual 100-percent heat loss. Fast pulse periods (<5 ms current controller operation), a high system flexibility and accuracy, digital interface control (on-board Ethernet interface for full remote control, USB port for the reading of sequences and Firmware update via Memory Stick), make this series a particularly flexible and energy-efficient instrument for industrial test environments. An intuitive easy to use MMI (man-machine interface) with TFT Touch Display in each of the plug-in in-line modules, ensures high comfort and full visual check on the functions and operating conditions. A professional operator software for efficient remote control is also available.

This text is machine translated.
