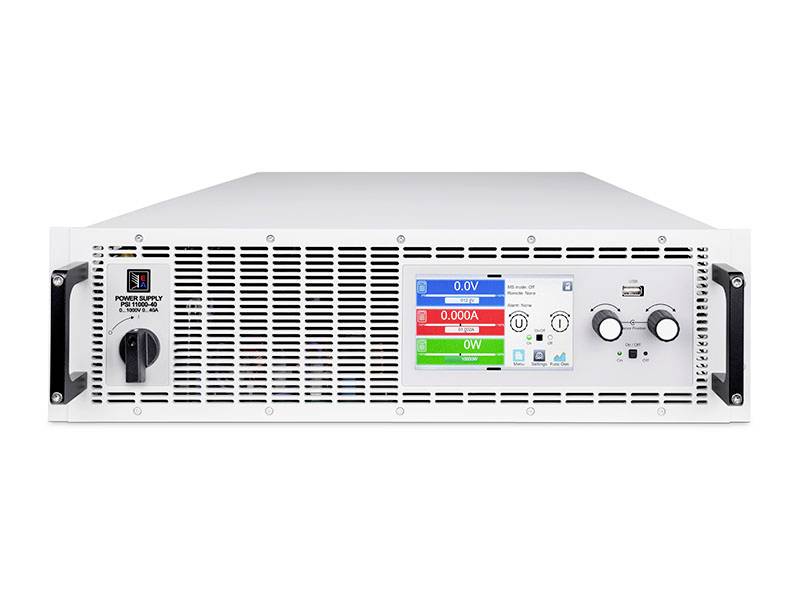

EA Elektro Automatik EA-PSI 11000-30 3U Bench PSU (adjustable voltage) 0 - 1000 0 - 30 A 10000 W USB , Ethernet, Analogu
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Programmable DC power supply 0 - 1,000V, 0 - 30A, 10000W
- 0 - 1000 / 0 - 30 A
- 10000 W
- USB , Ethernet, Analogue, USB host
- programmable
Technical specifications
- Safety class 1
- Protection class IP 20
- Pollution level: 2
- Type
EA-PSI 11000-30 3U
- Product type
Bench PSU (adjustable voltage)
10000 W
- Interfaces
USB
Ethernet
Analogue
USB host
- Features
programmable
Manufacturer's standards (no certificate)
- Weight
25.4 kg
- Output
USB
- Output voltage (max.)
1000 V
- Output voltage (min.)
0 V
- Max. output current
30 A
- Output current (min.)
0 A
- Max. temperature
+50 °C
- Min. temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 2973644 EA Elektro Automatik EA-PSI 11000-30 3U Bench PSU (adjustable voltage) 0 - 1000 0 - 30 A 10000 W USB , Ethernet, Analogu
User & Safety Instructions
User & Safety Instructions 2973644 EA Elektro Automatik EA-PSI 11000-30 3U Bench PSU (adjustable voltage) 0 - 1000 0 - 30 A 10000 W USB , Ethernet, Analogu
Description
The EA Elektro-Automatik PSI 10000 series DC laboratory power supplies convert the energy from the mains supply with an efficiency of up to 96% into a regulated DC voltage. The PSI 10000 series includes single-phase and three-phase devices, which can handle almost all mains voltages worldwide thanks to the wide input range. The DC voltages and currents are based on typical applications, the spectrum ranges from 0 - 60 V to 0 - 2000 V as well as 0 - 6 A to 0 - 1000 A in one device. The DC-power supplies act as a flexible output stage with a constant power characteristic, the so-called auto-ranging, as well as a large voltage, current and power range.
This text is machine translated.
This text is machine translated.
Features
- 5" color TFT display, touch function and intuitive operation
- Galvanically isolated share bus for parallel operation of all power classes in the 10000 series
- Master-slave bus for parallel operation, up to 64 devices of all power classes of the 10000 series
- Integrated function generator with predefined curves
- Automotive test procedures for LV123, LV124 and LV148
- Photovoltaic test mode (DIN EN 50530)
- Command languages and drivers: SCPI and Modbus, LabVIEW, IVI
Scope of delivery
- Power supply
- 2x plug for remote sensor
- USB cable (1.8 m)
- 1x Set DC-Terminal cover
- 1x Sense terminal cover
- 1x USB stick with documentation and software
- 1x AC connection plug
- 1x set for AC cable strain relief
