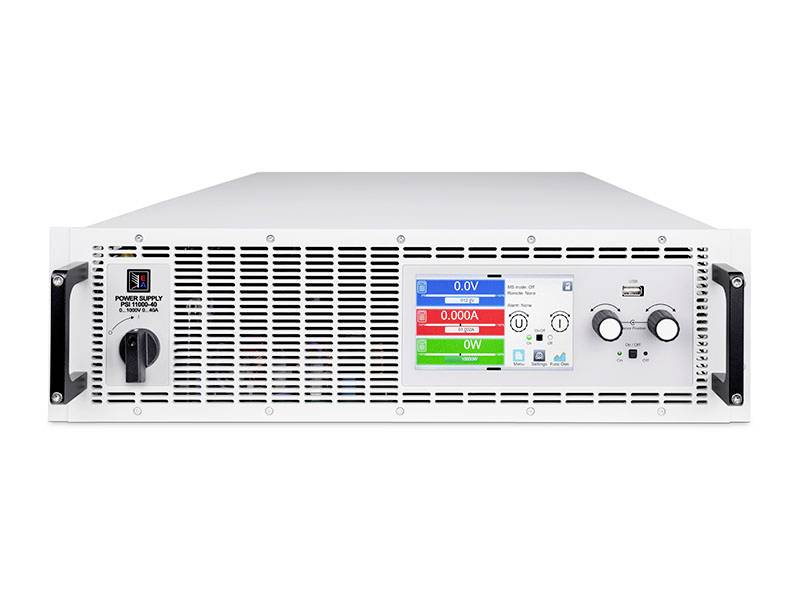

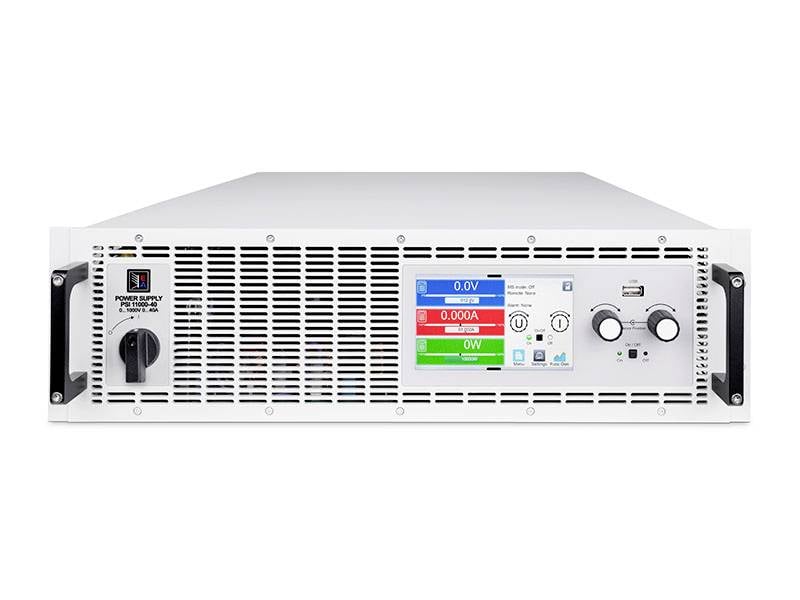

EA Elektro Automatik EA-PSI 11000-40 3U 19" bench PSU (adjustable voltage) 0 - 1000 0 - 40 A 1 x programmable
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
Programmable DC power supply 0...1000V 0...40A 15000W
- 0 - 1000 V DC /
Technical specifications
- Wide input range 208 V - 480 V, +10%, 3ph AC
- Active power factor correction, typically 0.99
- Very high efficiency of up to 96%
- High performance with up to 15 kW per unit
- Flexible performance regulated DC-output stages
- (Auto-ranging)
- Control modes CV, CC, CP, CR with fast transition
- Digital control, high resolution with 16 bit ADCs and
- DACs, Voltage Regulator Speed Selection:
- Normal, Fast, Slow
- 5" color TFT display, touch function and intuitive
- Operation
- Galvanically isolated share bus for parallel operation
- All power classes in the 10000 series
- Master-slave bus for parallel operation, up to 64
- Devices of all power classes of the 10000 series
- Integrated function generator with predefined
- Curves
- Automotive test procedures for LV123, LV124 and LV148
- Photovoltaic test mode (DIN EN 50530)
- Command languages and drivers: SCPI and Modbus,
- LabVIEW, IVI
- Product type
19" bench PSU (adjustable voltage)
- No. of outputs
1 x
Manufacturer's standards (no certificate)
- Output rating
15000 W
- Output voltage (max.)
1000 V DC
- Output voltage (min.)
0 V DC
- Output voltage 1
0 - 1000 V DC
- Max. output current
40 A
- Output current (min.)
0 A
- Input voltage
208 -480 V
- Rack unit
3 U
- Features
programmable
15 kW
- Type
EA-PSI 11000-40 3U
Documents & Downloads
Datasheet
Datasheet 3014306 EA Elektro Automatik EA-PSI 11000-40 3U 19" bench PSU (adjustable voltage) 0 - 1000 0 - 40 A 1 x programmable
User & Safety Instructions
User & Safety Instructions 3014306 EA Elektro Automatik EA-PSI 11000-40 3U 19" bench PSU (adjustable voltage) 0 - 1000 0 - 40 A 1 x programmable
Description
Scope of delivery
- Power supply
- 2x plug for remote sensor
- USB cable (1.8m)
- 1x Set DC-Terminal cover
- 1x Sense terminal cover
- 1x USB stick with documentation and software
- 1x AC connection plug
- 1x set for AC cable strain relief
