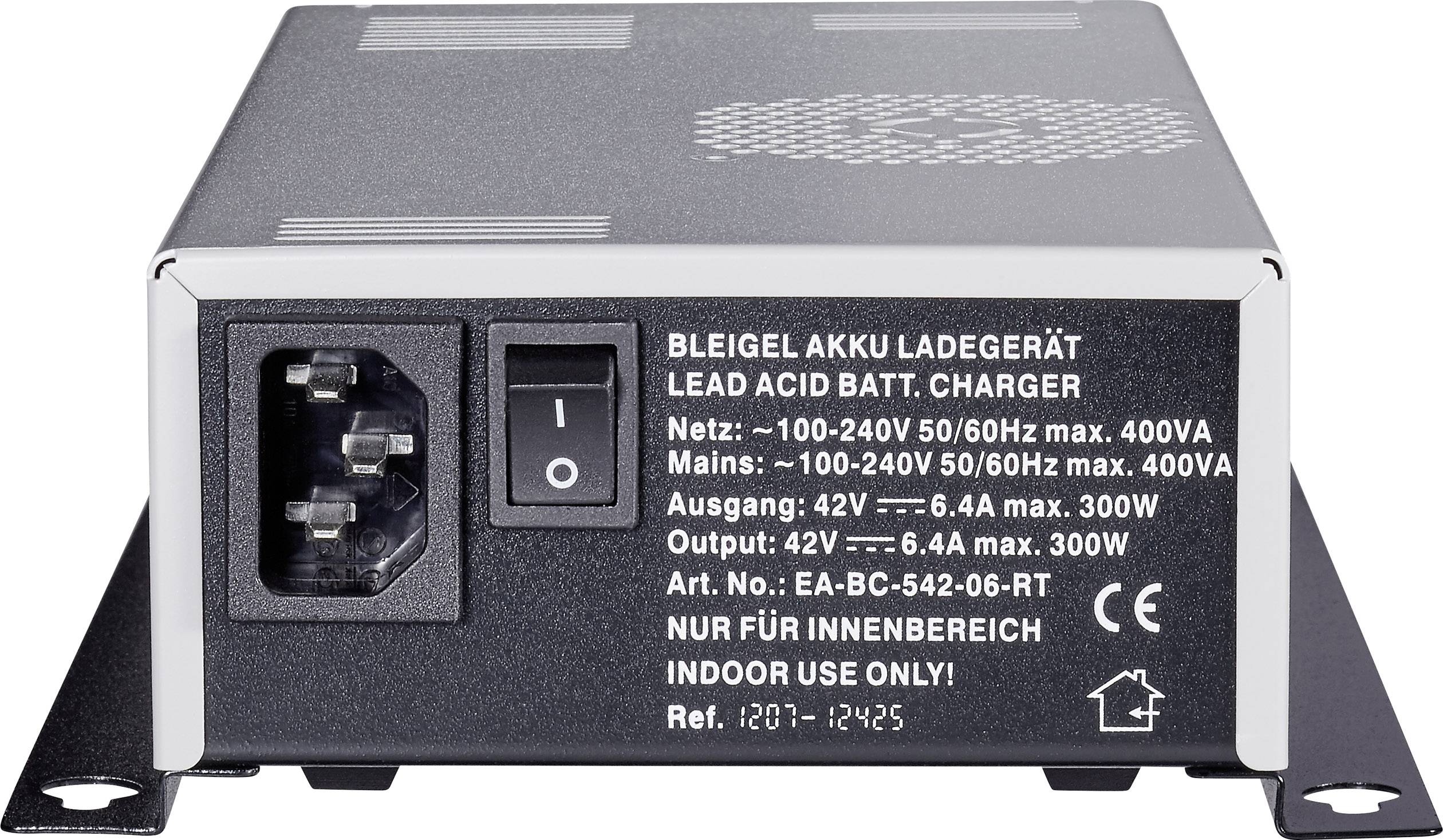

EA Elektro Automatik VRLA charger BC-542-06-RT 36 V Charging current (max.) 6.4 A
EAN:
Part number:
Item no:
Highlights & Details
EA Elektro Automatik VRLA charger BC-542-06-RT 36 V Charging current (max.) 6.4 A
- I-U-U charging method
Technical specifications
- Switch-on current max. 30 A
- Product type
VRLA charger
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Suitable for lead-type rechargeables
36 V
- Recommended battery capacity (min.)
3 Ah
- Recommended battery capacity (max.)
60 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
6.4 A
- Charging current at 36 V
6.4 A
- Charge Voltage
41.4 V
- Width
110 mm
- Height
58 mm
- Depth
226 mm
- Weight
1750 g
- Dim
(W x H x D) 110 x 58 x 226 mm
- Type
EA-BC-542-06-RT
300 W
- Recommended battery capacity
> 10 Ah
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 510141 EA Elektro Automatik VRLA charger BC-542-06-RT 36 V Charging current (max.) 6.4 A
Description
Powerful lead-acid battery charger for gentle and safer. The charger starts in constant-current operation (constant current mode).
If a cell voltage of approx. 2.37 V is reached, the timer and the charger switches over to constant voltage operation (Boost mode). After an hour switches the charger to trickle charging (standby mode). This decreases the voltage to the charging end voltage (2.3 V/Z). In this standby mode flow only a few mA. If the cell voltage, for example, by connecting an external load falls down under a certain value, the charging process starts again.
This text is machine translated.
If a cell voltage of approx. 2.37 V is reached, the timer and the charger switches over to constant voltage operation (Boost mode). After an hour switches the charger to trickle charging (standby mode). This decreases the voltage to the charging end voltage (2.3 V/Z). In this standby mode flow only a few mA. If the cell voltage, for example, by connecting an external load falls down under a certain value, the charging process starts again.
This text is machine translated.
Features
- Connecting the battery with screw terminals and the attached charging cable with alligator clips
- Gentle charging of batteries by charging IUU3
- Display of charge state on LEDs (RED = Battery empty, ORANGE = half full battery , GREEN = Battery full)
- Automatic shutdown with automatic reset after cooling of the equipment for the temperature protection of the devices. Fixed voltage power supplies: the most modern switching power supply technology
- Outputs with screw terminals for fixed installation
- Short circuit and overload protected. General Features: Wide input voltage range (90 to 264 V)
- Power supply via enclosed (Schuko) power cord and built in the device IEC-320 socket
- Suitable for wall mounting, and as a desktop unit
- Cooling by natural convection
- Overheating protection
- Extremely robust
Scope of delivery
- Alligator clips
- Earthing contact power cable
- Operating manual.
