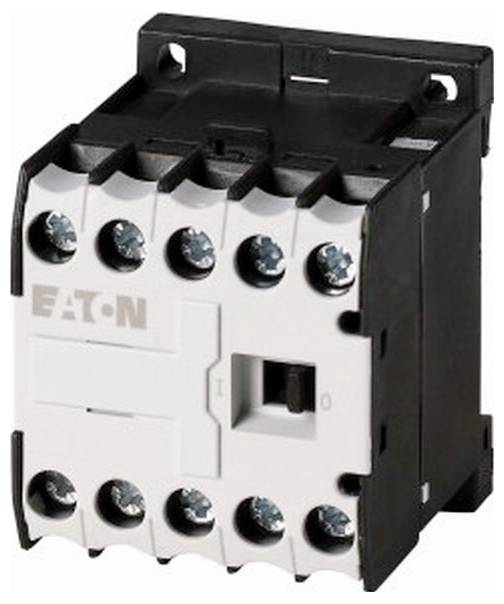

Eaton 051773 Auxiliary contactor 10 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
Current load
10 A
Connection
Screws
Type
051773
Auxiliary contact type
2 breakers
2 makers
Technical specifications
- Product type
Auxiliary contactor
- Type
051773
- Auxiliary contact type
2 breakers
2 makers
- Control voltage (min.)
42 V AC
- Control voltage (max.)
42 V AC
- Control voltage range
42 - 42 V AC
- Switching voltage (min.)
17 V AC
24 V DC
- Switching voltage (max.)
500 V AC
220 V DC
- Current load
10 A
- Mounting type
DIN rail
Screw-fit
- Connection
Screws
- Width
45 mm
- Height
58 mm
- Dim
(W x H) 45 mm x 58 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819016 Eaton 051773 Auxiliary contactor 10 A 1 pc(s)
Description
Auxiliary contactor, assortment: DILER mini-contactor, application: Auxiliary contactor, description: With positively guided contacts, connection technology: Screw terminals, rated operating current of conventional thermal current, 1 pole open at 50 °C: Ith = Ie= 240 400 A, rated operating current AC-415 V 3 V 10 V: Ie= 6 A, 380 V 15 220 V = Ie = 230 A, S contacts: 2 NO, NC contact = NC contact: 2 NC, Code number and version of the combination Difference number: 22E, usable for: .DILE, operating voltage: 42 V 50 Hz, 48 V 60 Hz, type AC/DC: alternating current operation, protection class: IP20
