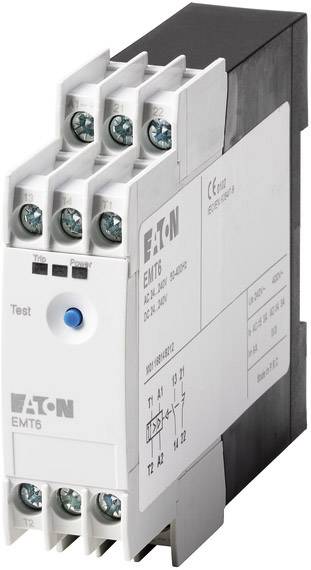

Eaton 066400 EMT6(230V) Thermistor overload relay Multifunction 230 V AC 1 pc(s) 1 breaker, 1 maker Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Thermistor overload relay
Type
Multifunction
Functions
Testing option with built-in Test/Reset button
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
14-day return policy included
Technical specifications
- Connection cross-sections auxiliary and control circuit: 20 - 14 AWG
- Connection screw M3.5
- Number of measuring circuits: 1
- Tightening torque: 1.2 Nm
- Triggering at approx. ≧ 3600 Ω
- Rated control supply voltage US at 50 Hz AC: 230 - 230 V.
- Rated control supply voltage US at 60 Hz AC: 230 - 230 V.
- Rated surge voltage resistance [Uimp]: 6000 V AC
- Touch protection with vertical actuation from the front (EN 50274): finger and hand-back protection
- Inlet to IEC/EN 61000-4-6: 10 V.
- Electrostatic discharge (ESD): 6 kV
- Power consumption: 2 W
- Safe isolation according to EN 61140: 250 V AC
- Overvoltage category/pollution degree III/3
- Static power loss, current independant [PVS]: 1.5 W.
- Resistance measuring range 750 - 12000 Ohm
- Restart at approx.: ≦ 1600 Ω
- Packaging type
Piece
- Product type
Thermistor overload relay
- Type
EMT6(230V)
- Type
Multifunction
- Connection
Screws
- Functions
Testing option with built-in Test/Reset button
- Operating voltage
230 V AC
- Contact type
1 breaker
1 maker
- Min. temperature
-25 °C
- Max. temperature
+60 °C
IP20
- Width
23 mm
- Height
84 mm
- Depth
104 mm
- Dim
(W x H x D) 23 x 84 x 104 mm
- Content
1 pc(s)
- Factory colour
Black
- Connector
Screw-fit
23 mm
83 mm
103 mm
AC
FALSE
FALSE
1
FALSE
Screw connection
AC
6 A
Screw connection
230-230 V
230-230 V
230-230 V
230-230 V
1
1
0
0-0 °C
750-12000 Ohm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1973267 Eaton 066400 EMT6(230V) Thermistor overload relay Multifunction 230 V AC 1 pc(s) 1 breaker, 1 maker Piece
User & Safety Instructions
User & Safety Instructions 1973267 Eaton 066400 EMT6(230V) Thermistor overload relay Multifunction 230 V AC 1 pc(s) 1 breaker, 1 maker Piece
Description
Thermistor machine protection relays, power and error LED-display, rated control supply voltage 230 V 50-60Hz, without restarting, snap mounting
