Buy Eaton 100NHG00B-690 NH fuse with blown fuse indicator Fuse size = 00 100 A 690 3 pc(s)

A 160A fuse from the Eaton Bussmann Series, suitable for 120-440V. Markings indicate CE and EAC certifications.

Image similar

An Eaton Bussmann series fuse rated at 100 amperes, suitable for voltages up to 690 volts, with multiple safety certifications.

An NH fuse from Eaton Bussmann Series, 100A, IEC 60269-2, 120kA-690V, with CE and EAC marking.

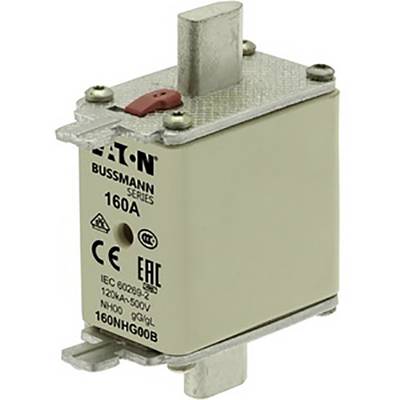

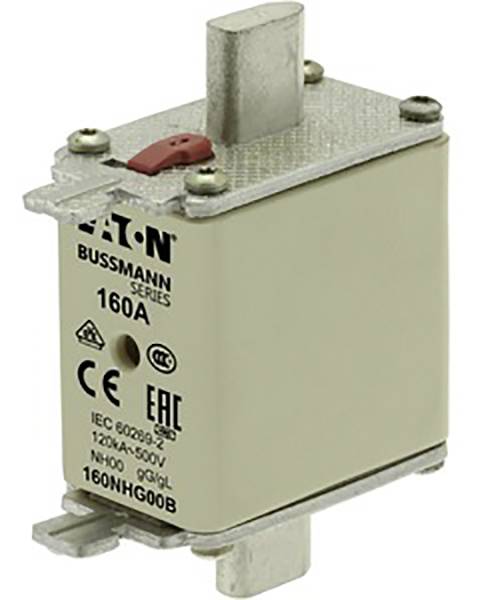

Eaton Bussmann Series fuse, Rated Current 160A, IEC 60269-2, 120kA, 500V, NH00 gG/gL Type.

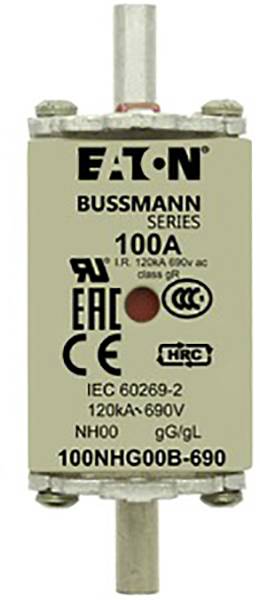

Eaton Bussmann fuse, 100A, suitable for voltages from 120 to 690V, designed for various industrial applications.

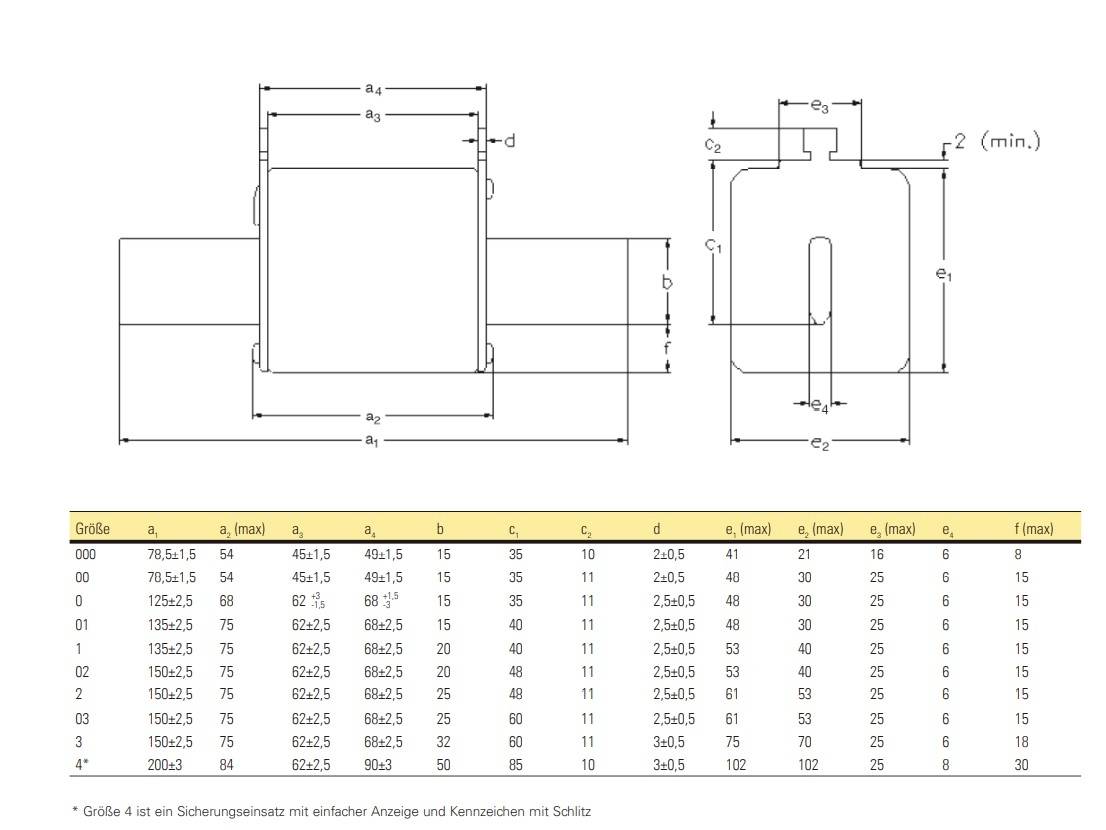

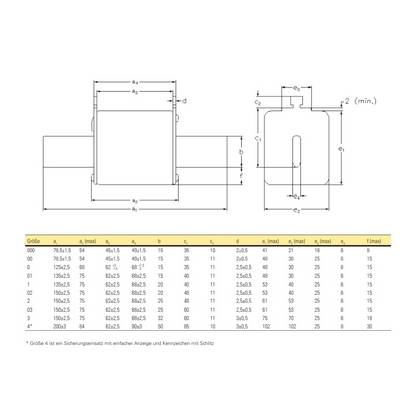

Technical drawing of a rectangular component with dimensions and table. Table shows sizes, dimensions in mm, some with minimum/maximum specifications.

1/6

Image similar

Product type

NH fuse

Fuse size

Nominal current - rounded value

100 A

Type

Live grip bottles made of metal

Content

3 pc(s)

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 3 pc(s))

Set(s)

Total (€ 6.72 / piece)

€ 20.16

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fuse link 100NHG00B-690

Dual displayHigh breaking capacityVarious insulated labels availableIEC 60269-1 and 2, DIN 43620, VDE 0636-2, CE-certification

Technical specifications

Type: Live grip bottles made of metal

Product type: NH fuse

Fuse size: 00

Content: 3 pc(s)

Nominal current: 100 A

Nominal current - rounded value: 100 A

Model: with blown fuse indicator

Switch-off capacity: 120 kA

Duty class: gG
gL

Size: 00

Nominal voltage: 690

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2622257 Eaton 100NHG00B-690 NH fuse with blown fuse indicator Fuse size = 00 100 A 690 3 pc(s)

User & Safety Instructions

User & Safety Instructions 2622257 Eaton 100NHG00B-690 NH fuse with blown fuse indicator Fuse size = 00 100 A 690 3 pc(s)

Information

Information 2622257 Eaton 100NHG00B-690 NH fuse with blown fuse indicator Fuse size = 00 100 A 690 3 pc(s)

Description

Dual display systemBussman's patented dual display provides a clear display and provides an extremely reliable local and remote* display. This reduces the time and cost of replacing backup operations.* Using an optional microswitchLow power lossBussmann's "Low Watts Loss" (low loss of current) fuse inserts reduce the general operating costs as well as carbon emissions through lower energy consumption and less heat transfer to the devices.Worldwide legal complianceBussmann NH fuse links have been tested and are compliant with IEC 60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can be recycled to guarantee global acceptance.
