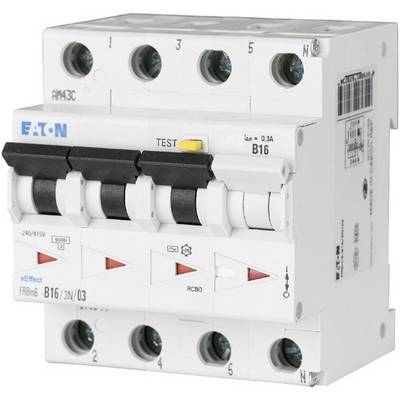

Eaton 170999 RCBO 4-pin 16 A 0.03 A 415 V AC
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
4
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
6 Piece(s)
Sales and shipping:
Number
Total (€ 121.84 / piece)
€
Only 6 Piece(s) available
Technical specifications
- Connectable conductor cross-section single-wired: 1 - 25 mm²
- connectable conductor cross-section multi-wired: 1 - 25 mm²
- Number of protected poles: 3
- Triggering: Undelayed s
- Rated insulation voltage UI: 500 V
- Rated surge voltage strength Uimp: 4 kV
- Width in division units: 4
- Sensitivity: Pulse current-sensitive
- Energy limitation class: 3
- False release protection: No
- Fault current type: A
- Frequency: 50 Hz
- suitable for flush-mounting No
- Basic function: Combined RCD/MCB devices
- Max. Operating ambient temperature +40 °C
- min. Operating ambient temperature: -25 °C
- with locking device: No
- Switching neutral conductor: Yes
- Number of poles (total): 4
- Protection class (IP): IP20
- Surge current strength: 0.25 kA
- Ambient temperature during operation: -25 - 40 °C
- Power loss of the equipment, current dependant [PVID]: 3.6 W
- Pollution degree: 2
- Overvoltage category: 3
- Type
3-pin + N
- Product type
RCBO
- Number of pins
4
- Release characteristics
C
- Differential current rating
0.03 A
- Dim
(L x W) 80 mm x 70 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
6 kA
- Nominal voltage
415 V AC
- Width
70 mm
- Length
80 mm
- Depth
75.5 mm
- Weight
0
AC
75.5 mm
16 A
415 V
C
500 V
0.03 A
A
0.25 kA
3
3
2
4
50 Hz
IP20
4
TRUE
6 kA
1-25 mm²
1-25 mm²
FALSE
-25-40 °C
FALSE
4
FALSE
4 kV
6 kA
Undelayed
6 kA
Documents & Downloads
Datasheet
Datasheet 1716877 Eaton 170999 RCBO 4-pin 16 A 0.03 A 415 V AC
User & Safety Instructions
User & Safety Instructions 1716877 Eaton 170999 RCBO 4-pin 16 A 0.03 A 415 V AC
Description
Compact residual current protective switch/circuit breaker switch for wide range of applications.
