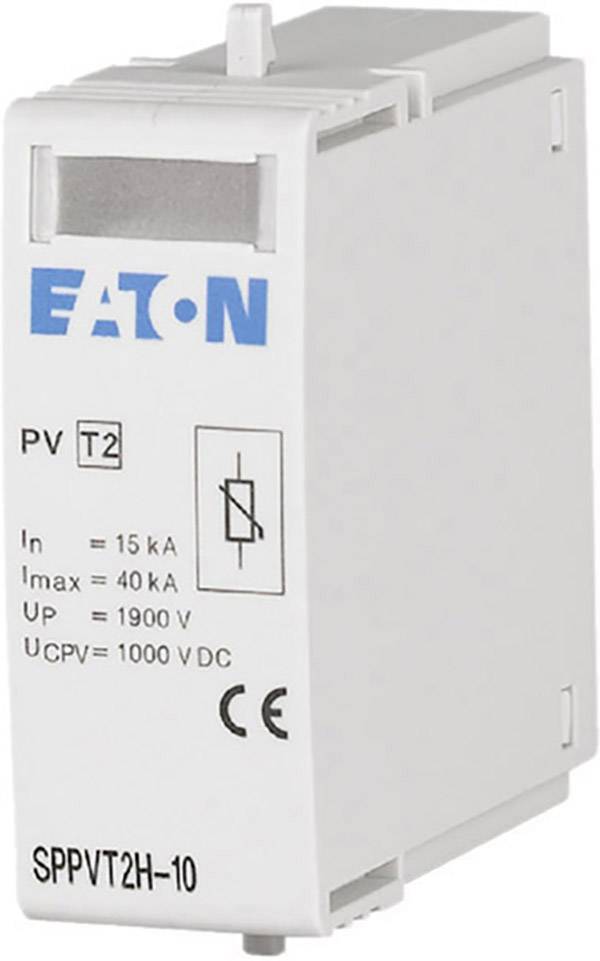

Eaton 176092 SPPVT2-10 Surge arrester Surge protection for: Switchboards 15 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Technical specifications
- Connection: For ungrounded systems
- Size: 1 TE
- Max. Conductor cross-section flexible (fine wire): 25 mm²
- Max. Conductor cross-section rigid (single/multi-wire): 35 mm²
- With remote signaling contact: No.
- Mounting type: On base element
- Mains form DC: No.
- Network form IT: Yes
- Mains form TN: No.
- Mains form TN-C: No.
- Mains form TN-C-S: No.
- Mains form TN-S: No.
- Net form TT: No.
- Protection level 1.9 kV
- Signaling on the device: Optical
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
15 kA
- Nominal voltage
1000 V DC
- Operating temperature
-40 °C Up to +80 °C
IP20
- Manufacturer part #
176092
- Content
1 pc(s)
On basic element
FALSE
0
1 modular spacing
1.9 kV
0 V
15 kA
0 V
585 V
TRUE
0 kV
Optic
585 V
IP20
585 V
0 kV
FALSE
0 mm²
0 mm²
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
40 kA
0 kA
0 A
0 A
FALSE
0 A
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1716889 Eaton 176092 SPPVT2-10 Surge arrester Surge protection for: Switchboards 15 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1716889 Eaton 176092 SPPVT2-10 Surge arrester Surge protection for: Switchboards 15 kA 1 pc(s)
Description
Lightning current surge arrester for protecting consumer systems.
