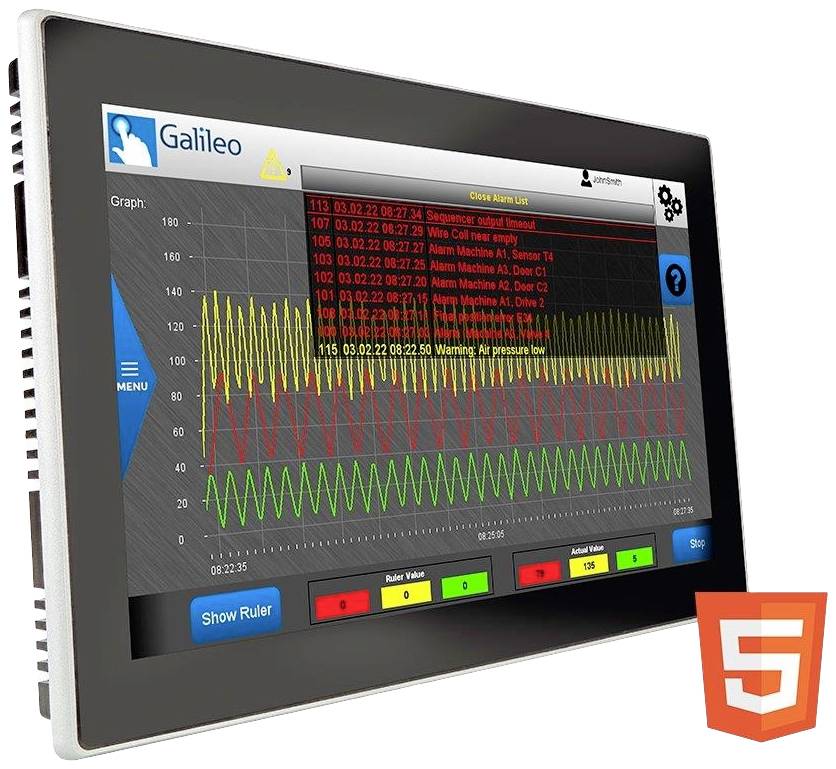

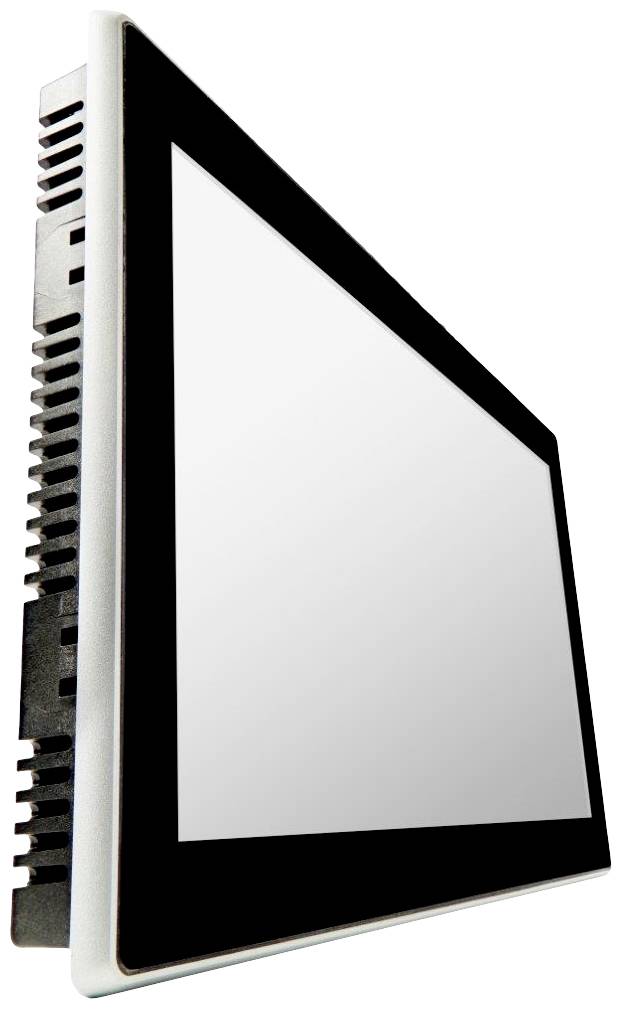

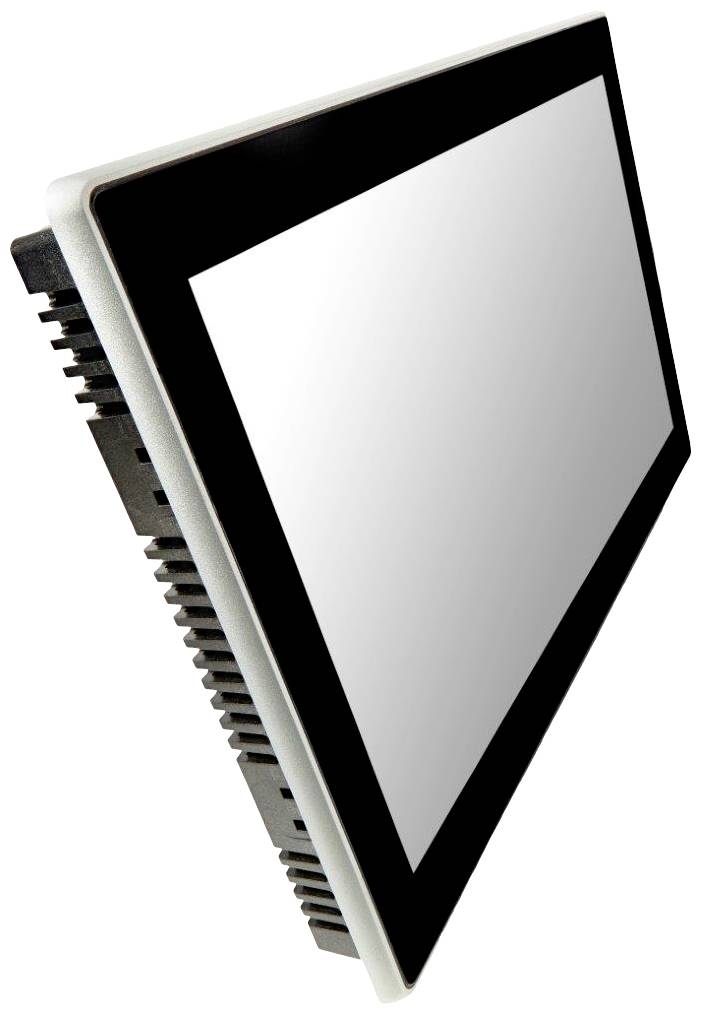

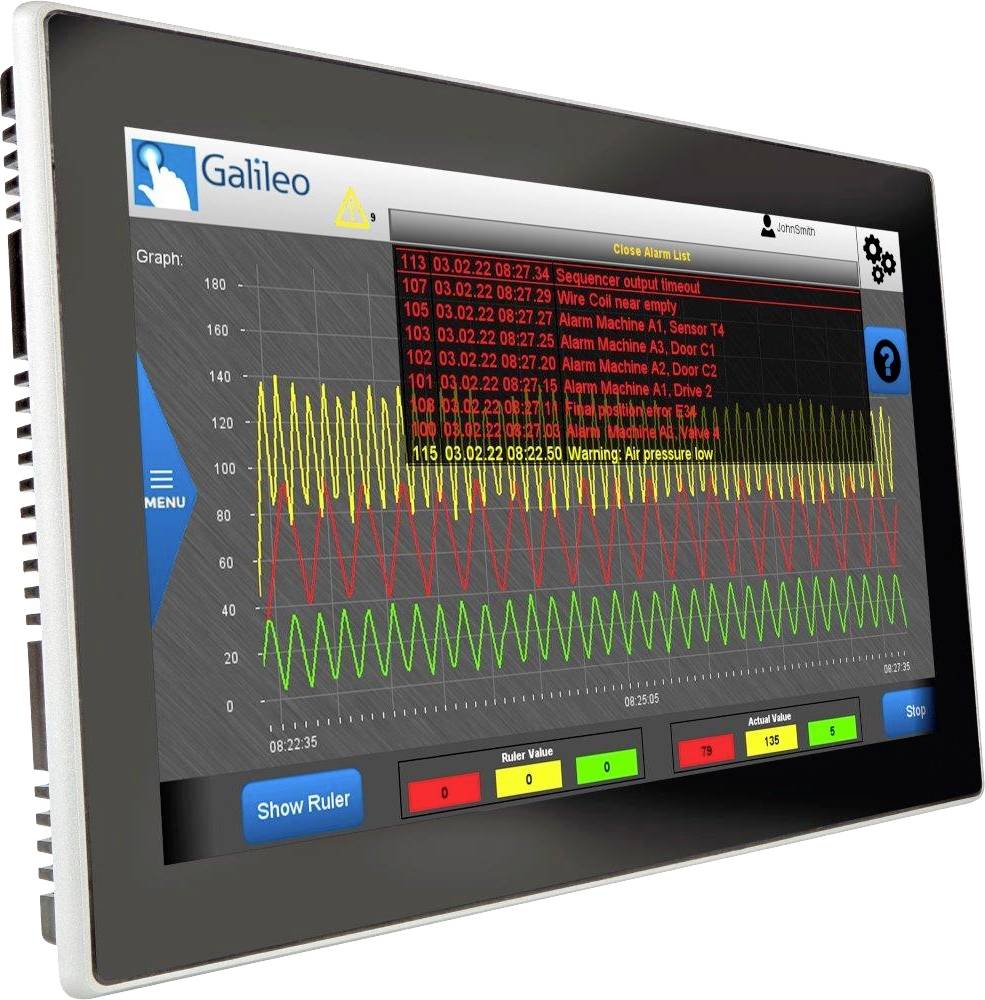

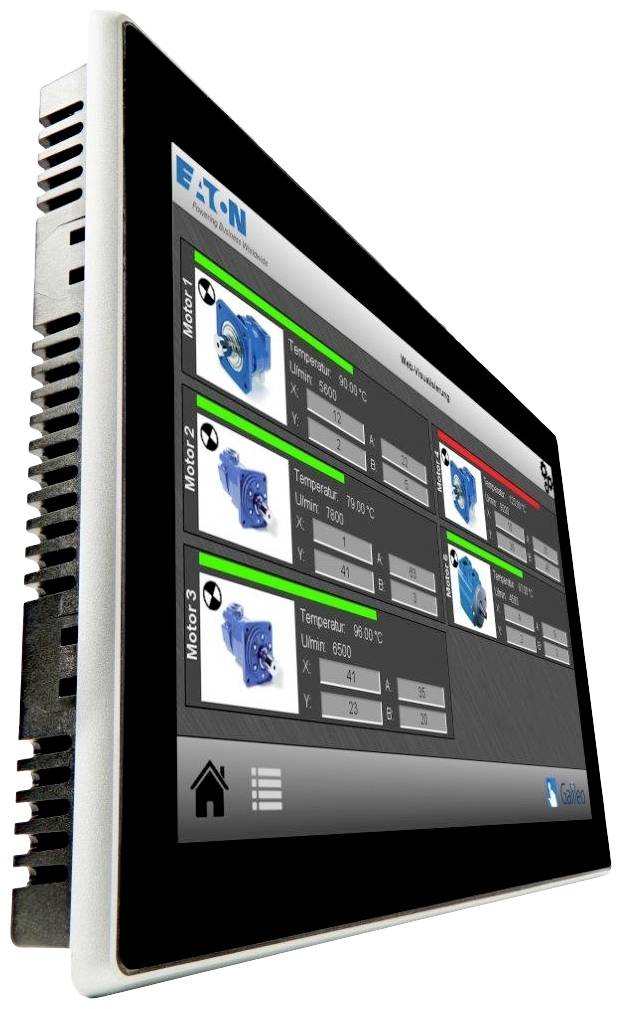

Eaton 199884 XH-303-15-A10-A00-2B Browser web panel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,457.98 / piece)
€ 1,457.98
plus VAT.
14-day return policy included
Technical specifications
- Display type: Colour display, TFT
- Touch technology: Capacitive multi-touch
- Resolution 1366 x 768 pixels
- Size: 15.6"
- Linux operating system
- Product type
Browser web panel

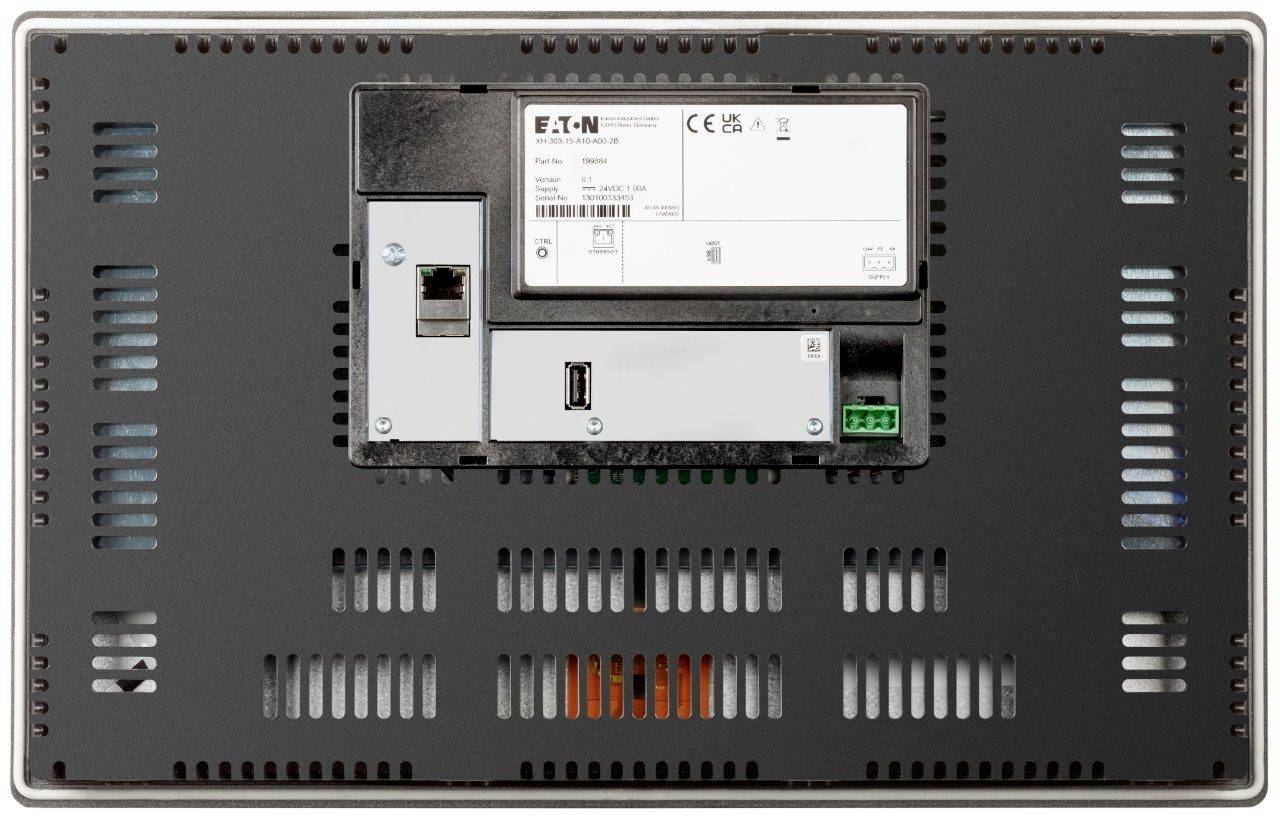

- Interfaces
1x Ethernet 1000 Base-T/100 base-TX/10 base-T
1x USB Host 2.0
- Type
XH-303-15-A10-A00-2B
- Manufacturer part #
199884
- Operating voltage
24 V DC
- Operating voltage
24 V / DC
- Height
255 mm
- Length
403 mm
- Width
77 mm
Front: IP65 / connection: IP20
- Current consumption
0.8 S
- Dim
(L x W x H) 403 x 77 x 255 mm
- Content
1 pc(s)
- Display
Yes
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2909373 Eaton 199884 XH-303-15-A10-A00-2B Browser web panel
Datasheet 2909373 Eaton 199884 XH-303-15-A10-A00-2B Browser web panel
User & Safety Instructions
User & Safety Instructions 2909373 Eaton 199884 XH-303-15-A10-A00-2B Browser web panel
Description

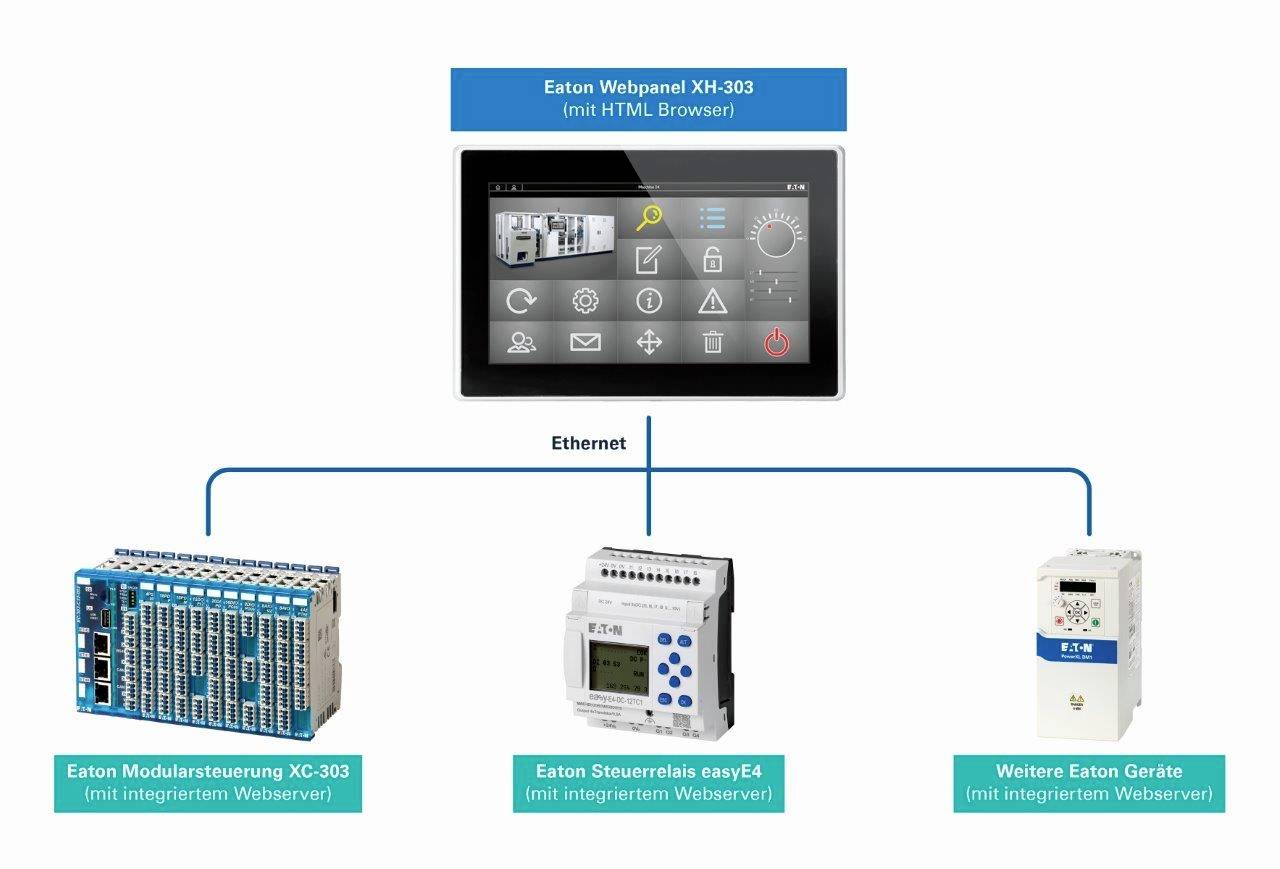

Visualizations on the basis of HTML 5, as is already used to in standard market mobile devices such as smartphones or tablets, are also used in the networked automation world. The XH300 web panel supports you in the decentralized visualization of web-based content in a convenient way. Thanks to a high-performance processor and strong RAM even the complex web-contents can be displayed on the devices. The web panel with capacitive multi-touch technology is available in modern design in three different sizes. Whether in machine or plant engineering, building automation, IoT or Smart home applications - the XH300 are suitable for use in a wide range of applications. This also includes harsh industrial environments.
