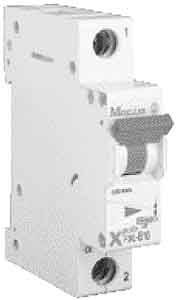

Eaton 236091 PXL-D4/1 Circuit breaker 1-pin 4 A 230 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
D
Nominal current - rounded value
4 A
Type
Switchgear for domestic and commercial applications
Datasheet (PDF)
Technical specifications
- Connectable conductor cross-section single-wired: 1 - 25 mm²
- connectable conductor cross-section multi-wired: 1 - 25 mm²
- Number of fused poles: 1
- rated insulation voltage UI: 440 V
- rated switching capacity ICN according to EN 60898 at 230 V: 10 kA
- rated switching capacity ICN according to EN 60898 at 400 V: 10 kA
- Rated breaking capacity ICU according to IEC 60947-2 at 230 V: 0 kA
- Rated breaking capacity ICU according to IEC 60947-2 at 400 V: 0 kA
- Rated breaking capacity according to IEC/EN 60898-1 [ICN]: 10 kA
- Rated surge voltage strength Uimp: 4 kV
- Width in division units: 1
- Energy limitation class: 3
- Frequency: 50 - 60 Hz
- suitable for flush-mounting: Max
- . Operating ambient temperature +75 °C
- min. Operating ambient temperature: -25 °C
- Switching neutral conductor: No
- Protection class (IP): IP20
- Ambient temperature during operation: -25 - 55 °C
- Power loss of the equipment, current-dependant [PVID]: 1.4 W
- Pollution degree: 2
- Overvoltage category: 3
- Type
Switchgear for domestic and commercial applications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
D
- RoHS-compliant
- Nominal current - rounded value
4 A
- Nominal current
4 A
- Dim
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Nominal voltage
230 V AC
- Depth
70.5 mm
Documents & Downloads
Datasheet
Datasheet 1716946 Eaton 236091 PXL-D4/1 Circuit breaker 1-pin 4 A 230 V AC
User & Safety Instructions
User & Safety Instructions 1716946 Eaton 236091 PXL-D4/1 Circuit breaker 1-pin 4 A 230 V AC
Description
LS-Switch with serial. D4A1P PXL-D 4/1
