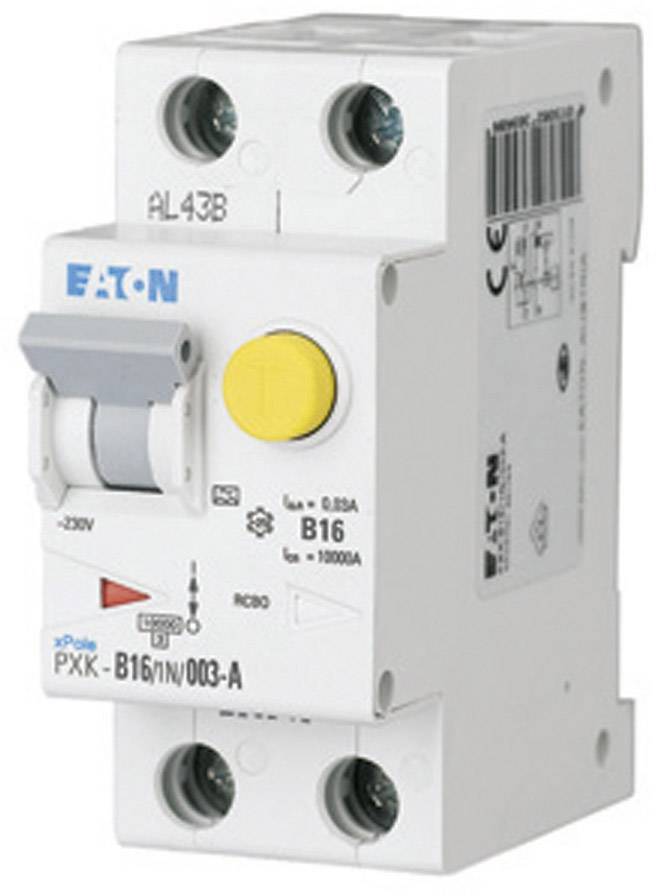

Eaton 236964 RCBO 2-pin 16 A 0.03 A 240 V AC
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
2
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Technical specifications
- Terminal cross-section 1-25 mm²
- Type
2-pin
- Product type
RCBO
- Number of pins
2
- Release characteristics
C
- Differential current rating
0.03 A
- Factory colour
Multicolour
- Dim
(W x H x D) 35 x 80 x 69.5 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
10 kA
- Operating voltage
230 V AC
- Nominal voltage
240 V AC
- Width
35 mm
- Height
80 mm
- Depth
69.5 mm
- Type
2-pin, 0.03
- Weight
0
AC
69.5 mm
16 A
240 V
C
440 V
0.03 A
A
0.25 kA
3
3
2
2
50 Hz
IP20
1
TRUE
0 kA
1-25 mm²
1-25 mm²
FALSE
-25-40 °C
FALSE
2
FALSE
4 kV
10 kA
Undelayed
10 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 611853 Eaton 236964 RCBO 2-pin 16 A 0.03 A 240 V AC
User & Safety Instructions
User & Safety Instructions 611853 Eaton 236964 RCBO 2-pin 16 A 0.03 A 240 V AC
Information
Information 611853 Eaton 236964 RCBO 2-pin 16 A 0.03 A 240 V AC
Description
Due to the recent change to the DIN VDE 0100-410 this additional protection through current-fault protective devices for all power circuits in the amateur range and for all final circuits up to 20 A in external areas is required. Also highlighted in the DIN 18015 was the fact that upon shutdown through a current-fault circuit breaker not all currents may be de-energised. The clever answer: Circuit breaker solutions from Moeller. They integrate people, fire-, and cable protection in a module, reduce installation expenditure, save space and reduce costs.
