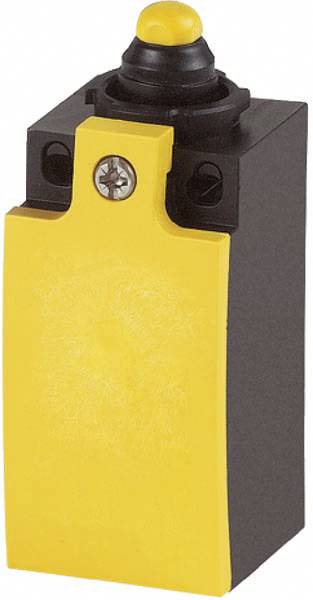

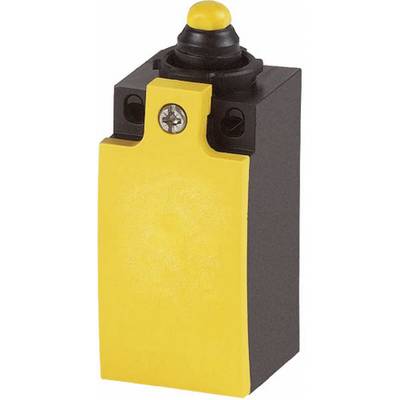

Eaton 266107 LS-02 Door-operated switch 6 A Tappet IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.98 / piece)
€ 33.98
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Number of safety-related auxiliary contacts: 2
- rated operating current IE at AC-15, 125 V: 6 A
- rated operating current IE at AC-15, 230 V: 6 A
- rated operating current IE at DC-13, 125 V: 0.8 A
- rated operating current IE at DC-13, 230 V: 0.3 A
- rated operating current IE at DC-13, 24 V: 3 A
- suitable for safety functions: Yes
- housing design: Cuboid
- switching function: Creep contact element
- Forced opening: Yes
- Packaging type
Piece
- Product type
Door-operated switch
- Connection
Spring-loaded heavy duty connector
- Operation type
Tappet
- Switching current (max.)
6 A
- Contact type
2 breakers
- Factory colour
Yellow
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Material
Plastic
- Width
31 mm
- Type
LS-02
- Content
1 pc(s)
- Dim
(L x W x H) 33.5 x 31 x 61 mm
- RoHS-compliant
Yes
- Height
61 mm
- Length
33.5 mm
- Depth
33.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306902 Eaton 266107 LS-02 Door-operated switch 6 A Tappet IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2306902 Eaton 266107 LS-02 Door-operated switch 6 A Tappet IP67 1 pc(s)
